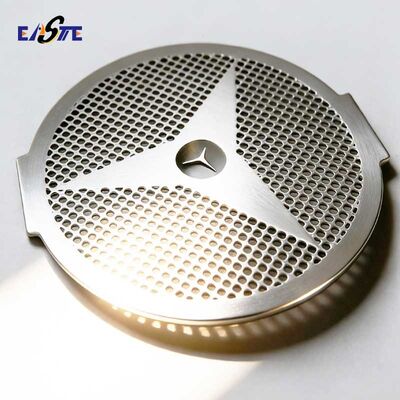

Custom Metal Etched Speaker Grilles for Automotive Sound Enhancement with Superior Acoustic Performance

Custom Metal Etched Speaker Grilles for Automotive Sound Enhancement with Superior Acoustic Performance

Product Overview
Automotive speaker grilles are precision-etched metal meshes designed to provide optimal acoustic performance, durability, and aesthetic appeal for in-car audio systems. They serve as a critical protective and functional part, allowing clear sound transmission while shielding speakers from dust, debris, and physical damage. At Xinhaisen, we specialize in manufacturing high-precision, custom-designed speaker grilles that meet the stringent quality and design standards of the automotive industry.

Manufacturing Process

• Design & Tooling: CAD file preparation and digital phototool creation.

• Cleaning & Preparation: Thorough degreasing and surface preparation of the metal sheet.

• Photoresist Application: Lamination of a light-sensitive photoresist film.

• Exposure & Development: UV exposure through the phototool and chemical development to reveal the precise grill pattern.

• Chemical Etching: Immersion in a controlled etchant to dissolve exposed metal areas, forming the intricate mesh.

• Stripping & Finishing: Removal of the remaining photoresist, followed by cleaning, deburring, and application of surface treatments as required.

• QC & Packaging: 100% dimensional inspection and protective packaging.

Product Features

• Superior Acoustics: Precise, consistent aperture patterns ensure minimal sound distortion and attenuation.

• Exceptional Durability: Made from high-grade metals, offering excellent resistance to corrosion, vibration, and impact.

• Lightweight & Ventilated: Thin, etched design provides strength without adding significant weight or hindering airflow for speaker cooling.

• Design Flexibility: Capable of producing complex patterns, logos, and custom shapes that are difficult or impossible with punching or weaving.

• Burr-Free & Smooth Edges: Etching produces no mechanical stress or burrs, ensuring a smooth, snag-free surface safe for handling and assembly.

• Aesthetic Versatility: Available in various metals, finishes, and colors to match interior styling.

Product Specifications

Product Applications

• Car Audio Systems: Front door speaker grilles, dashboard tweeter covers, rear deck speaker covers, subwoofer grilles.

• Infotainment & Navigation Units: Integrated speaker meshes for head units and displays.

• Hands-Free & Communication Systems: Microphone covers and speaker meshes.

• Premium Sound Systems: Grilles for branded high-fidelity audio systems within vehicles.

• Other Automotive Interior Mesh Components: Ventilation covers, sensor protection grids.

Our Advantages

• Precision & Capability: Expertise in micro-etching with capabilities for ultra-fine meshes (0.03mm holes) and tight tolerances (±0.01mm), ensuring acoustic fidelity.

• Rapid Prototyping & Production: Digital tooling allows for fast sample turnaround and swift scaling to high-volume orders without expensive hard tooling.

• Material Expertise: Proficient in etching a wide range of metals to meet specific mechanical, environmental, and cost requirements.

• High-Volume Capacity: Reliable supply chain and production setup to handle large, sudden, or sustained order volumes.

• End-to-End Solution: From material sourcing and precision etching to secondary finishing (plating, painting) and quality assurance, we provide a complete manufacturing service.

• Proven Reputation: Recognized by clients for high quality, fast delivery, and responsive service across multiple industries, including automotive.

FAQ
Q1: What is the lead time for samples and bulk production?
A: Prototype samples are typically delivered within 5-7 days after drawing confirmation. Mass production lead time depends on order volume, usually 1-2 weeks.

Q2: Can you produce grilles with 3D shapes or curved surfaces?
A: Yes. We primarily supply flat etched grilles which can be post-formed into specific 3D shapes using secondary stamping or forming processes based on your design.

Q3: How do you ensure corrosion resistance for automotive environments?
A: We select appropriate base metals (e.g., 316 stainless steel) and apply corrosion-resistant finishes like electroplating, anodizing, or high-quality paint coatings as specified.

Q4: Is custom branding possible on the grille?
A: Absolutely. We can etch logos, specific patterns, or branding elements directly into the mesh design with high precision.

Q5: What file format do you require for production?
A: We prefer CAD files (e.g., .dxf, .dwg, .step) but can also work with detailed PDF or AI vector files. Our engineering team can assist with file optimization.

Q6: What quality control measures are in place?
A: We implement a full-process QC system, including incoming material checks, in-process monitoring, and 100% final dimensional inspection using optical measurement systems to guarantee conformity.

Welcome to contact us at any time.
