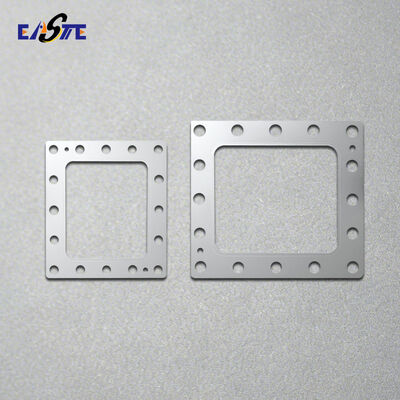

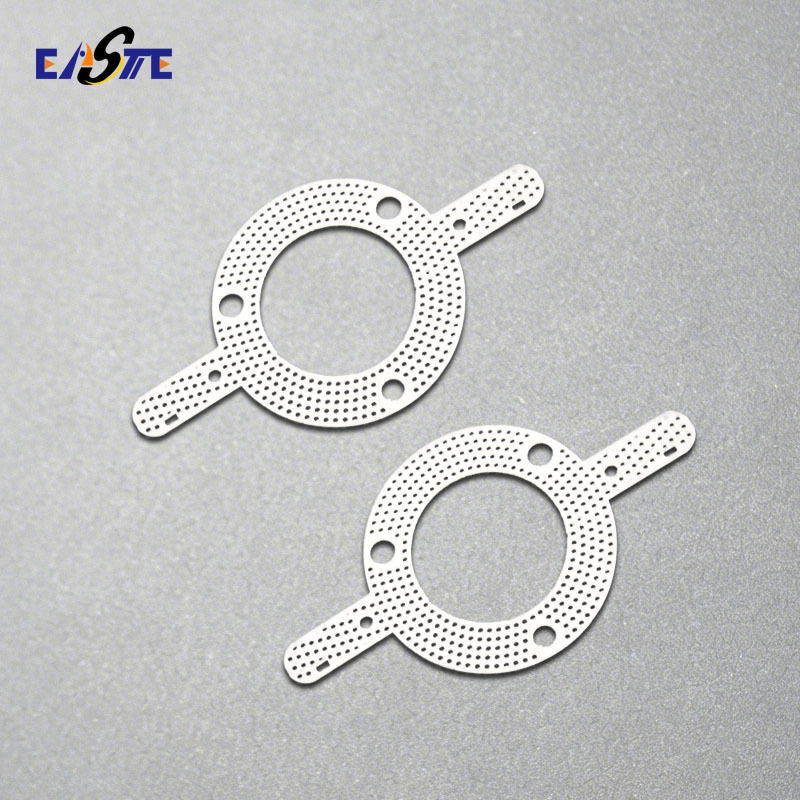

Custom 0.01-0.3MM metal shims via photochemical etching machining
Product Details
| Material: | Titanium, Titanium Alloy | Size: | Custom |
|---|---|---|---|
| Color: | Silver, Black, Gold, Etc | Manufacturing Technology: | Photo Chemical Etching And Stamping |
| Highlight |
custom metal shims photochemical etching,precision titanium shims 0.01-0.3mm,thin metal shims with warranty |
||
Product Description
Xinhaisen manufactures custom metal shims via photochemical etching process. The thickness can range from 0.01mm to 0.3mm. The material can be stainless steel, copper, nickle, titanium, kovar alloy ect.
What are metal shims?
Metal shims are used to fill the tiny gaps between two connecting surfaces. They reduce the wear and tear of the connecting parts caused by vibration, friction, or pressure changes. At the same time, they play a balancing role. Metal shims are suitable for high - temperature and high - pressure environments.
Industries We Serve
Metal shims can be used in various industries. Inprecision hardware processing, the dimensional accuracy of the shims, the flatness of the products, and the stability of the materials are of great importance, especially for the equipment in the automotive, aerospace and medical industries.
Why fabricate shims via photochemical etching process?
✅ Burr-free
✅ Stress-free
✅ High-precision
The tolerances can be ±0.001MM
✅ Cost-effictive
No tooling cost.
Custom shims processing flowcart:
The material ,thickness and size we can produce as following
| Material | Thickness | Size |
| STEEL AND STAINLESS STEELS | 0.01mm – 1.5mm | 700mm x 2400mm |
| NICKEL AND NICKEL ALLOYS | 0.01mm – 1.5mm | 700mm x 2400mm |
| COPPER AND COPPER ALLOYS | 0.01mm – 1.5mm | 600mm x 1500mm |
| ALUMINIUM | 0.01mm – 1.5mm | 600mm x 1500mm |
| TITANIUM AND TITANIUM ALLOYS | 0.01mm – 1mm |
700mm x 2400mm |
How to customize the metal shims from us.
1.Please send us your design.
We accept the following file formats:
DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
2.Samples making lead time:3-10days
3.Express:By DHL,Fedex,TNT,around 3-7days
Why Choose Xinhaisen?
✅ 13 Years Specialized in photochemical etching industry.
✅ ISO 9001 Certified for Quality
✅ IATF 16949 Certified for Automotive Quality
✅ ISO 14001 Eco-Friendly Production
✅ DFM Support & Engineering Consultation
✅ 98% On-Time Delivery Rate
✅ Prototype to Mass Production
