High Precision Photo Chemical Machining | ±5μm Etching Service for Aerospace & Electronics

High Precision Photo Chemical Machining | ±5μm Etching Service for Aerospace & Electronics

Brand Name: XHS
Model Number: customzied
MOQ: 10
Price: 50-100USD
Payment Terms: T/T
Supply Ability: 10000-100000PCS / week
Detail Information
Place of Origin:
China
Certification:
ISO 9001, ISO 14001
Material:
Stainless Steel, Cooper, Titanium, Aluminum, Etc.
Processed Thickness:
0.02mm-3mm
Tolerance:
+/- 0.005mm
Production Process:
Photo Chemical Etching, Plating, Stamping, Laser Cutting
Packaging Details:
PE bags and Cartons / Customized
Supply Ability:
10000-100000PCS / week
Highlight:

high precision photo chemical machining

,

aerospace photo chemical etching service

,

±5μm etching service for electronics

Product Description

Stress-Free Processing Ensures Part Deformation

Photochemical Machining (PCM) is a stress-free process based on photolithography and chemical etching. Unlike traditional mechanical cutting, stamping, or laser processing, PCM does not generate thermal or mechanical stress, enabling high-precision contour forming while maintaining the metal's original mechanical properties. This technology eliminates stress concentration and deformation throughout the entire processing process, making it particularly suitable for the precision manufacturing of thin metal sheets (thicknesses ranging from 0.01mm to 1.0mm) and complex microstructured parts, ensuring high product flatness and excellent dimensional stability.


Product Specifications
Item Parameter Description
Processing Method Photochemical Machining
Applicable Materials Stainless steel, copper, nickel, titanium, aluminum, and other metals
Material Thickness Range 0.02mm to 3.0mm
Minimum Line Width 0.01mm
Minimum Aperture 0.02mm
Processing Accuracy ±5μm
Photolithography Resolution 10μm
Processing Area Maximum 600mm × 1800mm
Surface Roughness Ra ≤ 0.8μm
Sample Turnaround 3-5 working days

Applications: Precision Electronic Components and Aerospace Structural Parts

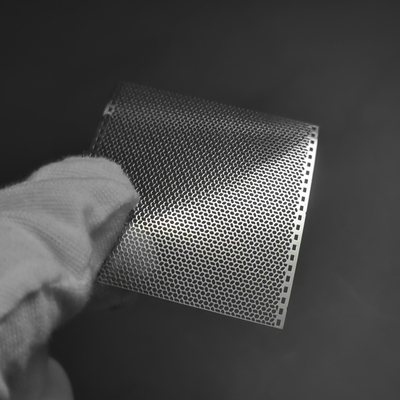

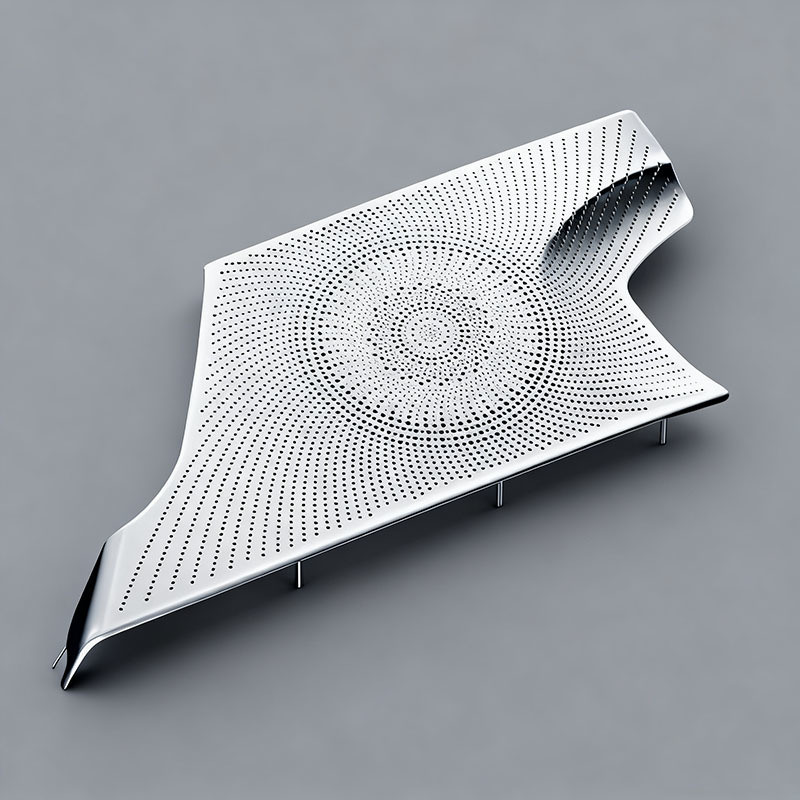

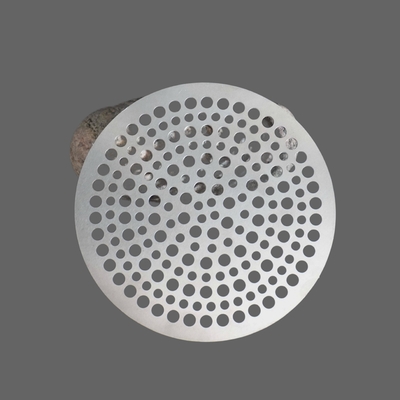

Photochemical machining technology is widely used in the manufacture of high-precision electronic components and the precision machining of aerospace structural parts. In the electronics industry, it is used to produce filter meshes, heat sinks, electrodes, shielding covers, and metal layers for flexible circuits. In the aerospace industry, PCM enables the high-precision manufacture of lightweight structural parts, nozzle orifice plates, microfluidic channels, and high-strength alloy sheets. Its high repeatability and consistency ensure that each component meets stringent functional and reliability standards.

High Precision Photo Chemical Machining | ±5μm Etching Service for Aerospace & Electronics 0


High-Resolution Lithography and ±5μm Precision Control

This process utilizes high-resolution photoresist and double-sided exposure technology to achieve 10-micron pattern resolution. Advanced alignment systems and a constant temperature and humidity environment ensure ±5μm dimensional accuracy and edge control. The combination of photolithography mask precision and chemical etching uniformity enables perfect reproduction of complex geometries, fine gaps, and micropore arrays, ensuring product dimensional consistency and contour clarity.


3D-to-2D Etching Design Services and Custom Manufacturing

We offer professional 3D-to-2D etching design conversion services. We can precisely convert your 3D model or engineering drawing into a 2D etching layout, ensuring the fabrication dimensions perfectly match the design intent. Customers can select materials and thicknesses based on their specific application, enabling rapid prototyping and mass production. All products can be customized to meet customer needs, providing comprehensive solutions for precision components, electronic functional parts, and specialized structural parts.
