0.02-1.5mm Thickness Copper Chemical Etching For Electronics Aerospace

Copper Etching Parts 0.02-1.5mm Thickness ±0.03mm Tolerance for Electronics/Aerospace

Product Overview

Xinhsen Technology is a leading manufacturer of high-precision copper alloy etched components, specializing in photochemical etching for complex and delicate metal parts. Our copper alloy etching services are ideal for industries requiring excellent conductivity, corrosion resistance, and intricate designs, including electronics, telecommunications, automotive, and medical devices.

We work with various copper alloys, such as pure copper (C11000), brass (C26000), phosphor bronze (C5191), and beryllium copper (C17200), offering unmatched precision for RF shielding, connectors, lead frames, EMI gaskets, and decorative elements.

Key Features

Ultra-Fine Precision – Achieves 0.015mm line width and 0.03mm micro-holes for intricate circuitry and meshes.

Wide Material Selection – Pure copper, brass, bronze, and beryllium copper for different mechanical & electrical needs.

Burr-Free & Stress-Free – Chemical etching ensures smooth edges without mechanical deformation.

Fast Prototyping – 3-5 days for samples, accelerating product development cycles.

Cost-Effective for Complex Designs – No hard tooling required, ideal for low-volume/high-mix production.

Custom Finishes – Optional gold plating, nickel plating, anti-tarnish coating, or laser marking.

Technical Parameters

Common Applications:

Electronics: PCB shields, flexible circuits, connectors.

Automotive: Sensor components, fuel cell plates.

Medical: Surgical tools, implantable device parts.

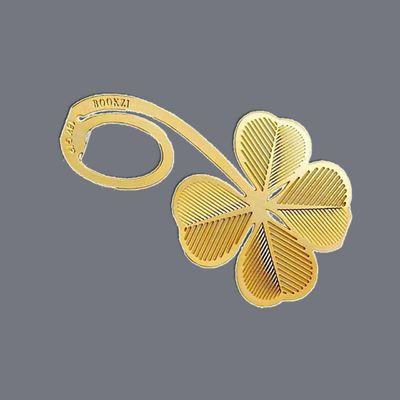

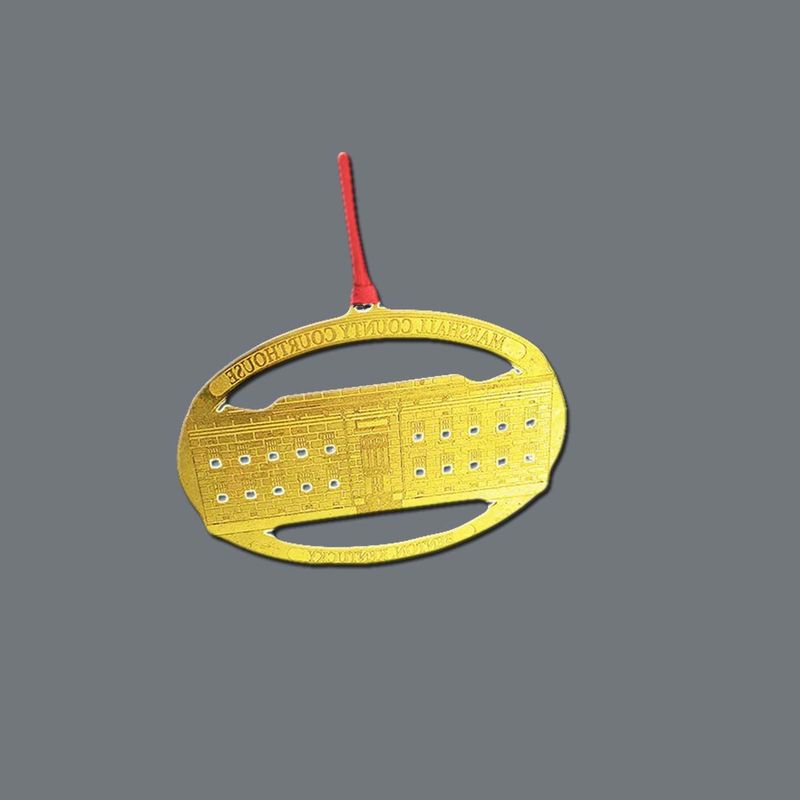

Decorative: Luxury inlays, artistic metalwork.

Competitive Advantages

Superior Conductivity – Ideal for high-frequency & high-current applications.

No Thermal Distortion – Unlike laser cutting, etching prevents heat-affected zones (HAZ).

Rapid Turnaround – 10-15 days for bulk orders (1,000+ pieces).

One-Stop Service – From material selection to post-processing (plating, forming, assembly).

ISO 9001 Certified – Strict quality control for consistent, defect-free components.

Applications

Electronics: EMI/RFI shielding, lead frames, heat sinks.

Telecom: 5G antenna components, waveguide parts.

Automotive: Fuel cell bipolar plates, electrical contacts.

Medical: Precision surgical tools, diagnostic equipment parts.

Industrial: Filters, sieves, decorative metalwork.

FAQ

Q1: What copper alloys do you recommend for EMI shielding?

A: Beryllium copper (C17200) offers the best conductivity and spring properties, while phosphor bronze (C5191) is cost-effective for general shielding.

Q2: Can you etch ultra-thin copper foils (0.02mm)?

A: Yes! We specialize in thin-film etching for flexible circuits and delicate components.

Q3: How do you prevent oxidation on copper parts?

A: We offer anti-tarnish coatings, gold/nickel plating, or passivation for long-term protection.

Q4: What’s the MOQ for custom designs?

A: 100pcs for production orders (prototypes can be made with no MOQ).

Q5: Can you provide bending/forming after etching?

A: Yes! We offer secondary processing (stamping, welding, assembly) for finished parts.

Why Choose Xinhsen?

10+ years of expertise in precision metal etching.

24/7 engineering support for design optimization.

Competitive pricing with fast quotes (<6 hours).

Global shipping with reliable logistics partners.

Elevate your copper alloy components with high-precision, burr-free etching tailored to your exact needs. Contact us today for a free consultation!
