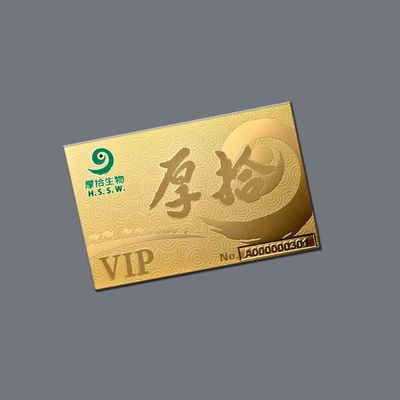

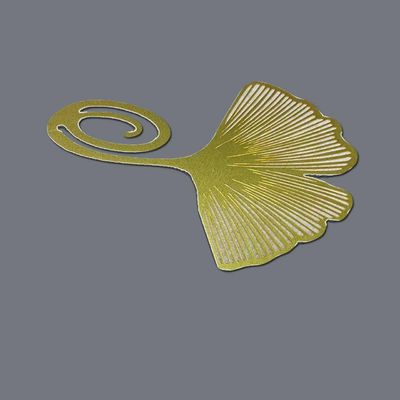

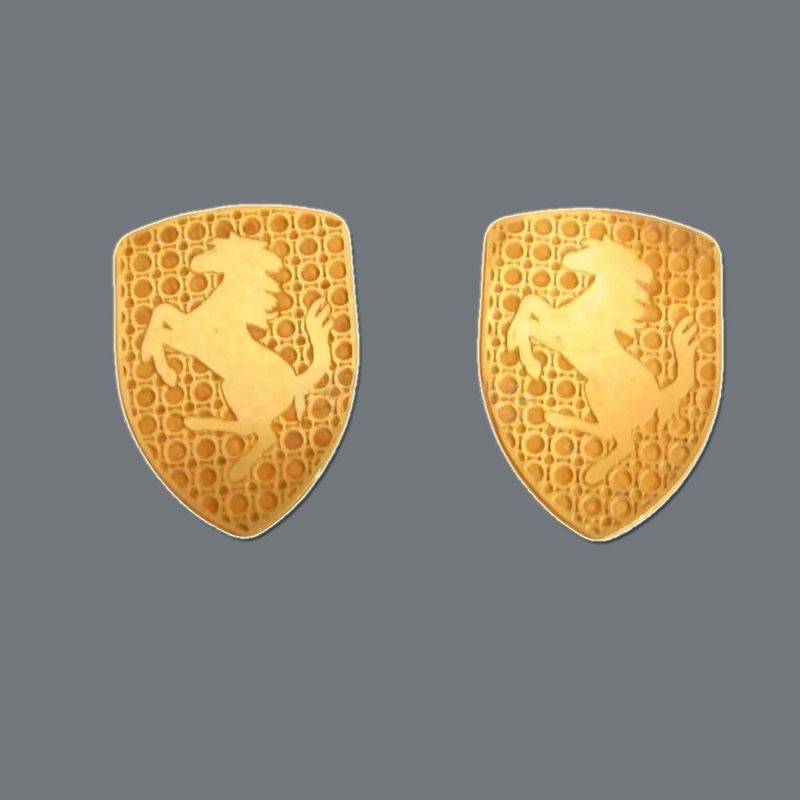

Professional Copper Chemical Etching High Precision 0.005mm Tolerance

Name: Professional Copper Chemical Etching High Precision 0.005mm Tolerance
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 80.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	20
Price:	50-110USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Copper,copper Alloy

Tolerance:

+/_0.005mm

Thickness:

0.01-2.0MM

Process:

Photo Chemical Etching

Service:

24hours

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

0.005mm Copper Chemical Etching

0.01mm Copper Chemical Etching

2mm acid etching copper

Product Description

Professional Copper Alloy Etching with High Precision Can be Customized

Website: www.xinhsen.cn

Product Overview

Xinhsen Technology specializes in high-precision chemical etching of copper and copper alloy components for industries requiring superior conductivity, thermal management, and intricate designs. Our etching process ensures burr-free edges, tight tolerances, and excellent repeatability, making our copper parts ideal for electronics, EMI shielding, heat exchangers, and more.

Key Specifications

Parameter	Specification Range	Tolerance
Material Thickness	0.02mm – 1.5mm	±0.01mm
Minimum Hole Size	0.03mm	±0.005mm
Minimum Line Width	0.015mm	±0.003mm
Dimensional Accuracy	--	±0.03mm
Materials	Pure Copper (C11000), Beryllium Copper (C17200), Phosphor Bronze (C5191, C5210), Brass (C2600)	--
Surface Finish	Matte, Polished, Anti-oxidation Coating, Plating (Ni, Ag, Au, Sn)	--

Professional Copper Chemical Etching High Precision 0.005mm Tolerance 0

Features & Advantages

✔ Ultra-Precision: Achieve complex geometries with micron-level accuracy.

✔ No Mechanical Stress: Etching preserves material properties (no heat distortion or hardening).

✔ Rapid Prototyping: Quick turnaround for samples and bulk orders.

✔ Custom Designs: Support intricate patterns, micro-holes, and multi-layer stacking.

✔ Cost-Effective: Ideal for high-volume production with consistent quality.

Common Copper Etched Products

Electronics: EMI/RFI shielding gaskets, flexible circuits, lead frames.

Thermal Management: Heat sink fins, cooling plates, vapor chambers.

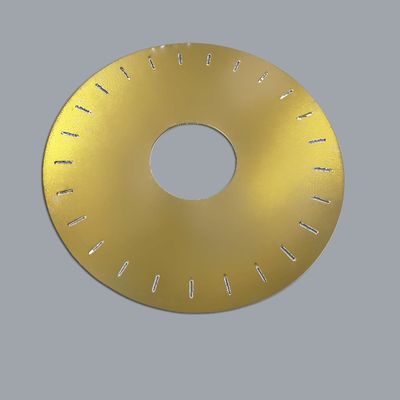

Industrial: Fuel cell bipolar plates, mesh filters, encoder discs.

Consumer Goods: Decorative inlays, speaker grilles, jewelry components.

Telecom & Automotive: Connector contacts, sensor components, RF shields.

Why Choose Xinhsen?

Advanced Etching Tech: Capable of ultra-fine features (0.015mm line width).

Multi-Material Expertise: Etch copper alloys with tailored properties (e.g., high-strength, spring-like elasticity).

End-to-End Solutions: From design support to post-processing (plating, forming).

Contact us for custom copper etching projects!
