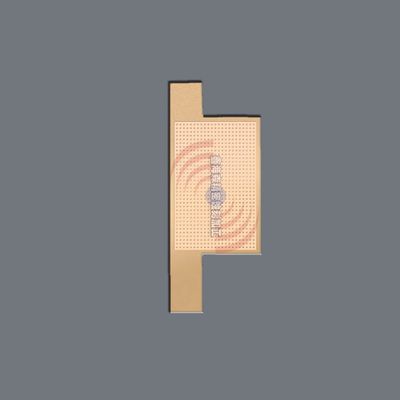

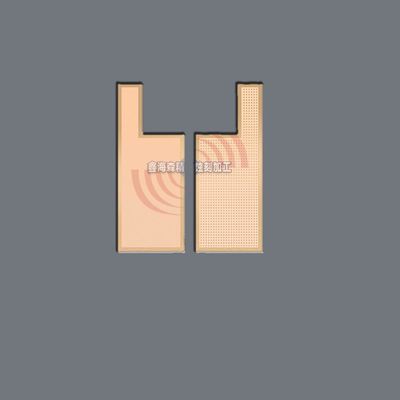

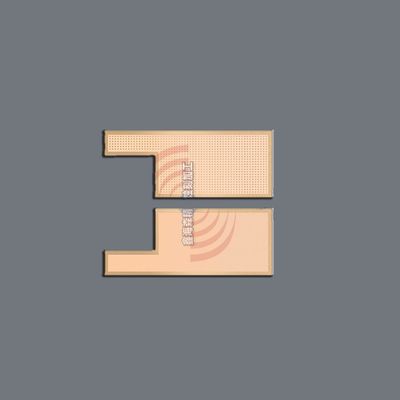

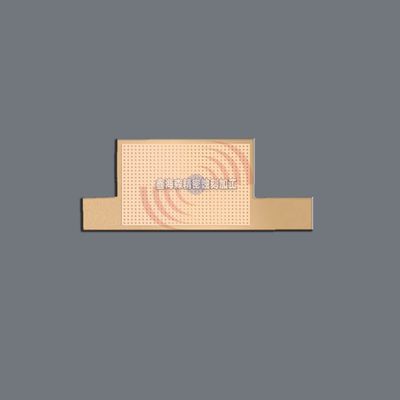

0.02-1.5mm Thickness Vapor Chamber For New Energy Industry ±0.03mm Tolerance

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Features:

High Precision, Intricate Designs, Corrosion Resistant

Material:

Copper Alloy

Tolerance:

±0.01mm

Etching Method:

Chemical Etching

Customization:

Available

Surface Finish:

Polished

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

1.5mm vapor chamber

0.02mm vapor chamber

Industry custom vapor chamber

Product Description

Vapor Chamber for New Energy Industry±0.03mm Tolerance 0.02-1.5mm Thickness

Overview
Xinhsen Technology specializes in manufacturing high-performance vapor chambers through advanced chemical etching and precision machining. Our vapor chambers are designed for superior thermal management in electronics, LED lighting, 5G devices, automotive systems, and high-power computing applications. With ultra-thin profiles and customizable designs, we ensure efficient heat spreading and dissipation for next-generation thermal solutions.

Key Features & Benefits

✔ Ultra-Thin & Lightweight – Thickness as low as 0.2mm, ideal for compact devices.
✔ High Thermal Conductivity – Efficient two-phase heat transfer (water or alternative working fluids).
✔ Customizable Designs – Flexible shapes, sizes, and wick structures (mesh, sintered, or grooved).
✔ Material Versatility – Copper (C1100/OFC) or stainless steel (316L) for corrosion resistance.
✔ Precision Microstructures – Etched micro-channels for optimized fluid circulation.
✔ Scalable Production – Supports prototypes to high-volume orders with fast lead times.

Technical Specifications

Parameter	Specification
Material	Pure Copper (C1100/OFC), Stainless Steel (316L)
Thickness Range	0.2mm – 3.0mm (standard)
Max Dimensions	Up to 600mm × 600mm (custom sizes available)
Flatness Tolerance	≤0.05mm/m²
Working Fluid	Deionized Water or Custom Options
Wick Structure	Mesh, Sintered Powder, Grooved, or Hybrid
Operating Temp.	-30°C to +150°C (wider range upon request)
Leakage Test	Helium Mass Spectrometry (10⁻⁹ Pa·m³/s)
Surface Finish	Electropolished, Nickel Plating (optional)

Applications

Electronics Cooling – Smartphones, laptops, tablets.
LED Lighting – High-power LED heat spreaders.
5G & Telecom – Base stations, RF components.
Automotive – Battery cooling (EV/HEV), infotainment systems.
Aerospace & Defense – Avionics thermal control.

Why Choose Xinhsen?

Precision Etching Expertise – Micro-channel accuracy (±0.03mm uniformity).
End-to-End Service – From design simulation to sealing & testing.
Fast Prototyping – 7–10 days for samples.
ISO-Compliant – Strict quality control (RoHS/REACH compliant).
