Photochemical Machining Customizable 0.5mm to 2mm Thicknes Titanium Bipolar Plates
Product Details
| Materials: | Stainless Steel Or Customized | Thickness: | 0.02mm - 3mm According To Different Request |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Maxmum Single Part: | 1500mm*650mm | Minimum Single Part: | 1mm*1mm |
| Highlight |
customizable titanium bipolar plates,photochemical machining titanium etching,0.5mm to 2mm thick titanium plates |
||
Product Description
Photochemical Machining Customizable 0.5mm to 2mm Thicknes Titanium Bipolar Plates
|
Titanium bipolar plates are core components engineered for high-end applications such as fuel cells and electrolytic cells. Combining the superior properties of titanium with the precision and flexibility of photochemical etching technology, they offer researchers and engineers an ideal solution for rapid prototyping and small-batch production of high-performance, corrosion-resistant bipolar plates.
|
 |
Specifications of Customizable Titanium Bipolar Plate
—————————
| Item | Half Etching Metallic Bipolar Plate / Hydrogen Fuel Cell Plate |
| Material | Titanium/ Stainless steel 316/ Aluminum/ Copper |
| Thickness | 0.5mm - 2mm according to different request |
| Minimum single part | 1mm*1mm |
| Maximum single part | 1800mm*700mm |
| Surface Treatment | Polishing,brushing,electroplating,nickel plating,anodizing,etc... |
| Characteristics | Outstanding corrosion resistance Light-weight Very good strength and hardness Excellent thermal conductivity High electrical conductivity Burr free and clean Full recyclability |
This is a highly customisable titanium bipolar plate manufactured via photochemical etching.
Core Features of Customizable Titanium Bipolar Plates
—————————
- Advanced Manufacturing Process: Employing photochemical etching technology. This non-traditional, stress-free machining method chemically dissolves metal with precision, enabling the production of exceptionally intricate and precise flow channel patterns free from burrs or deformation.
- Superior Material: Utilises titanium as the base material. Titanium offers exceptional corrosion resistance, high specific strength, and lightweight properties, making it ideal for prolonged use in demanding fuel cell or electrolyser environments.
- Highly Customisable: This process is well-suited for prototype development and small-batch production, enabling rapid, low-cost design modifications. Customers may customise flow channel geometry, layout, port positioning, and other specifications as required.
- Extensive thickness range: Capable of processing titanium plates from 0.5mm to 2mm thick, offering flexibility for diverse application requirements such as power density and structural strength specifications.
The production process of photochemical machining titanium bipolar plates
—————————
1. Material selection (stainless steel/titanium)
2. Surface cleaning
3. Photoresist coating to define flow channel patterns
4. Exposing and Developing
5. Chemical etching to dissolve exposed areas
6. Post-processing (resist removal, residue neutralization)
7. Quality inspection
Precise control of etching parameters (time, temperature, concentration) ensures uniform channel geometry for optimized gas distribution, conductivity, and corrosion resistance while maintaining structural integrity. This method supports scalable, cost-efficient mass production.

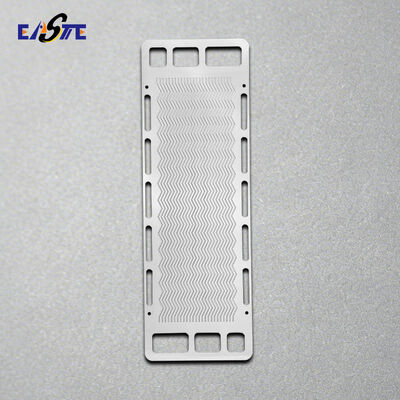

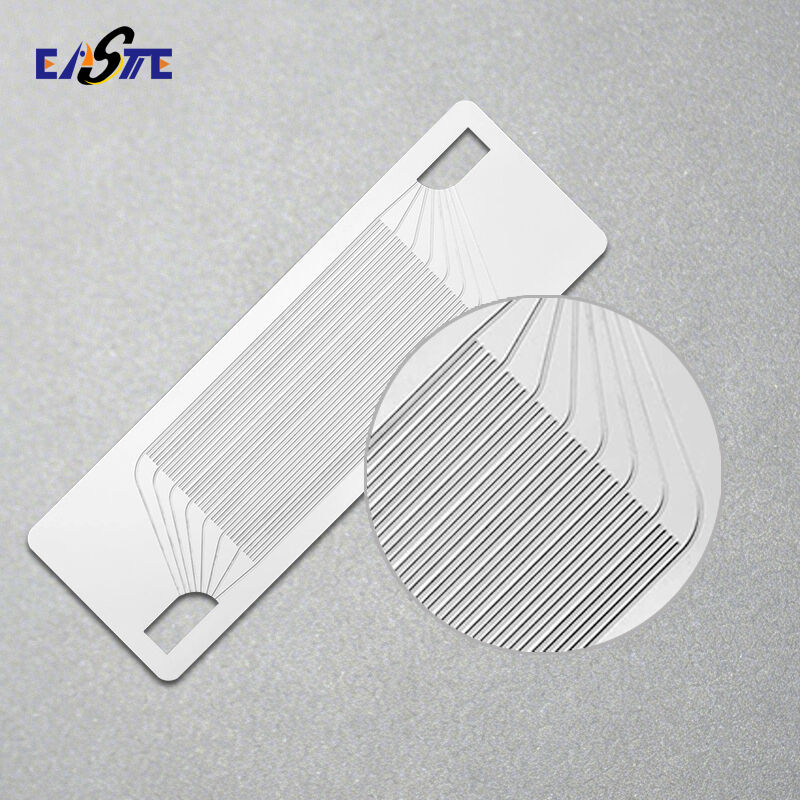

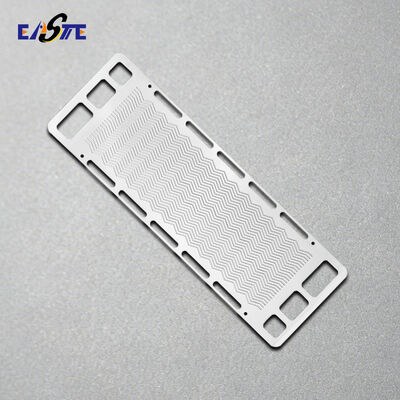

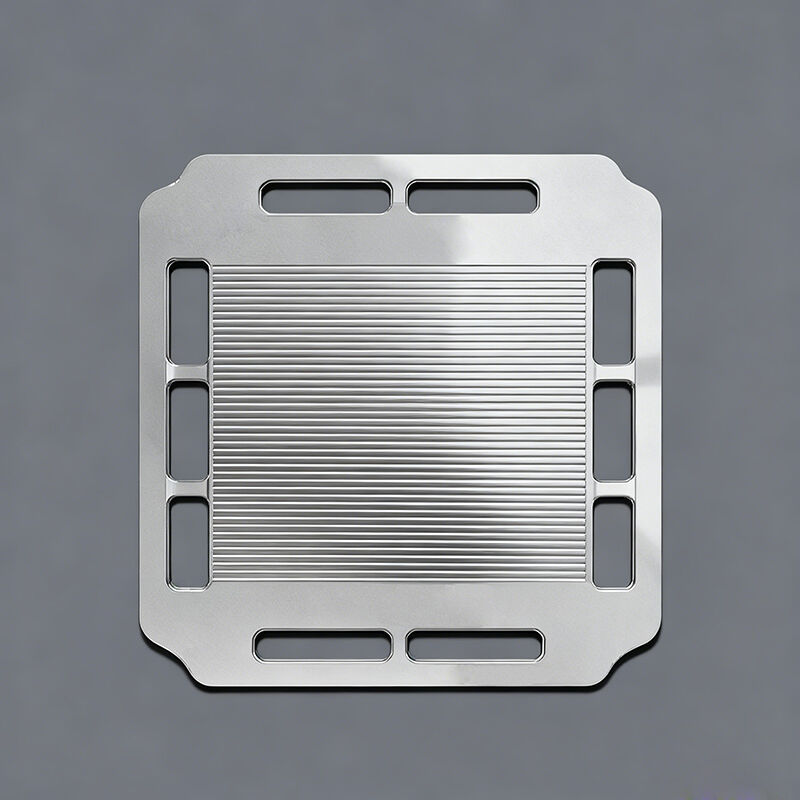

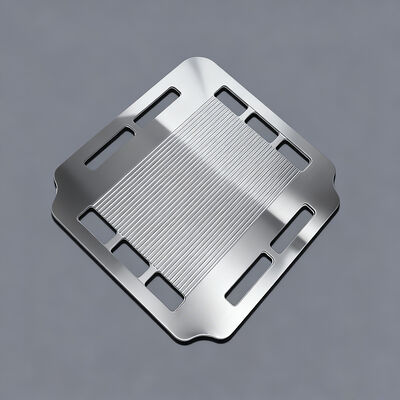

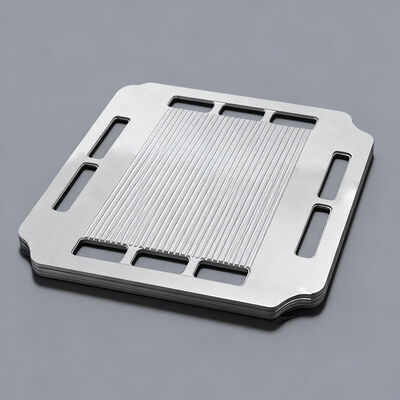

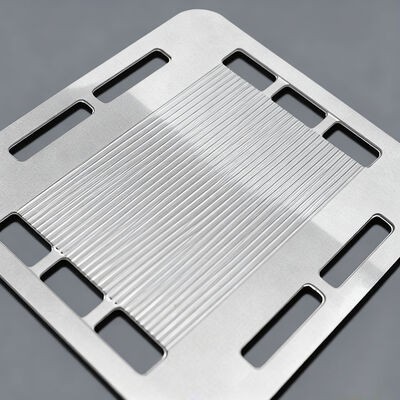

Different Shapes of Customizable Titanium Plates
—————————
|
|
|
|
|
|
|
|
How to custom Titanium Bipolar Plate from us?
—————————
1. Please send us your design. We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator.
2. Samples making lead time:3-10 days
3. Express:By DHL, FedEx, UPS, Air or Sea.
