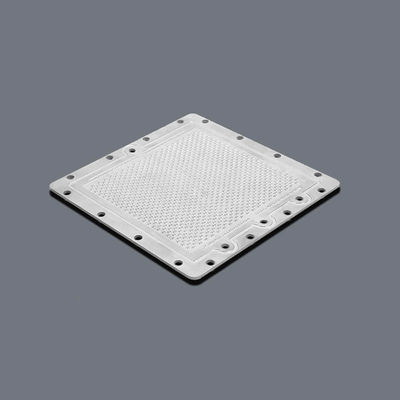

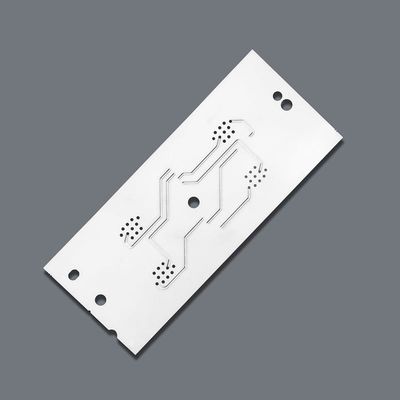

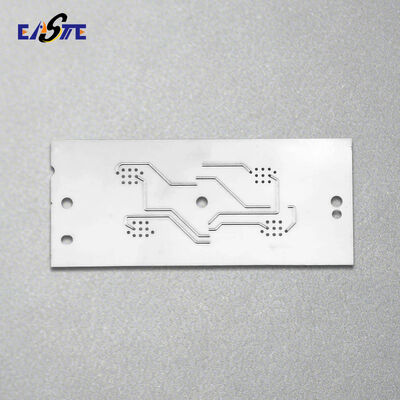

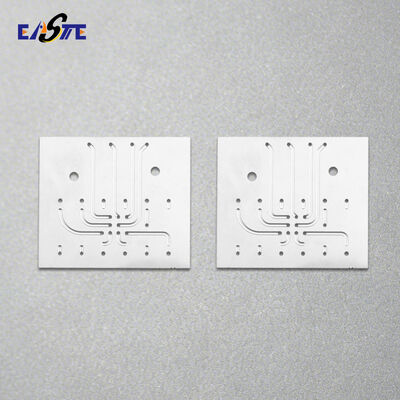

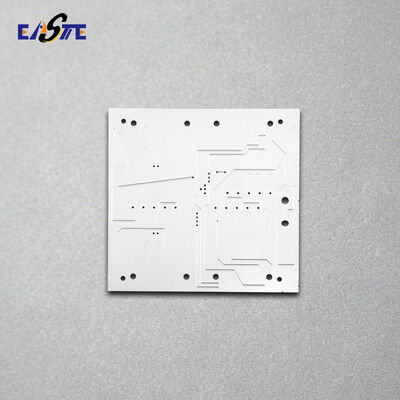

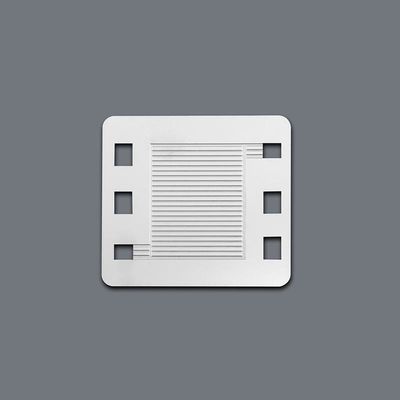

Titanium Etching 0.5mm Ultra Thin Printed Circuit Heat Exchanger Plates For Hydrogen

Titanium Etching 0.5mm Ultra Thin Printed Circuit Heat Exchanger Plates For Hydrogen

Introduction of Printed Circuit Heat Exchanger Plates:

Our Hydrogen Printed Circuit Heat Exchanger (PCHE) Etching service delivers precision-engineered microchannel structures tailored for hydrogen energy applications. Utilizing advanced photochemical etching technology, we ensure ultra-high accuracy, excellent surface integrity, and optimal flow dynamics essential for next-generation heat exchangers.

Technical Specifications of Printed Circuit Heat Exchanger Plates:

Key Features of Printed Circuit Heat Exchanger Plates:

• High Precision: Achieve channel geometries with tight tolerances up to ±10 microns.

• Customizable Designs: Support complex and multi-layer microchannel configurations based on specific thermal and mechanical requirements.

• Superior Material Compatibility: Specialized in high-performance alloys such as 316L, Copper, and Titanium Alloy for hydrogen service environments.

• Enhanced Surface Quality: Smooth channel walls minimize pressure drops and resist hydrogen embrittlement.

• Scalable Production: From prototypes to mass production with consistent quality and repeatability.

Applications of Printed Circuit Heat Exchanger Plates:

• Hydrogen refueling stations

• Hydrogen storage and distribution systems

• Fuel cell cooling systems

• Cryogenic hydrogen liquefaction processes

• High-efficiency hydrogen compressors

Advantages of Chemical Etching:

• No mechanical stress, deformation or burr on the workpiece

• Higher complexity and density compared to mechanical milling or laser cutting

• Cost-effective for both low and high-volume production

Quality Assurance:

Our PCHE etching processes follow ISO 9001 and AS9100 quality management standards, with full traceability, material certification, and rigorous inspection protocols including optical and dimensional verification.

Why Choose Us:

With extensive experience in hydrogen energy applications and precision manufacturing, we provide etching solutions that enable superior heat exchanger performance, supporting the drive toward a sustainable hydrogen economy.
