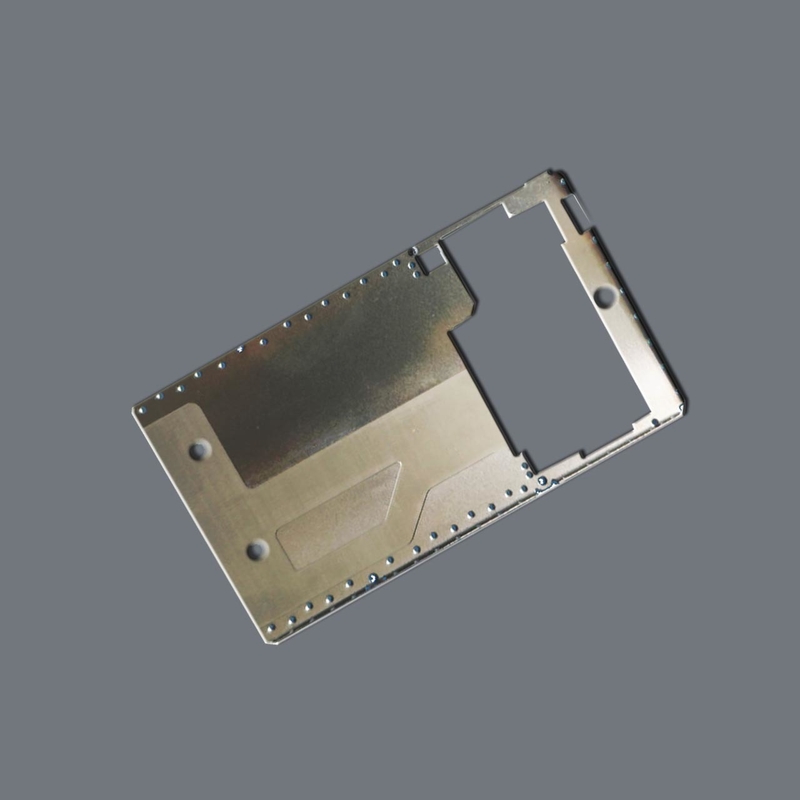

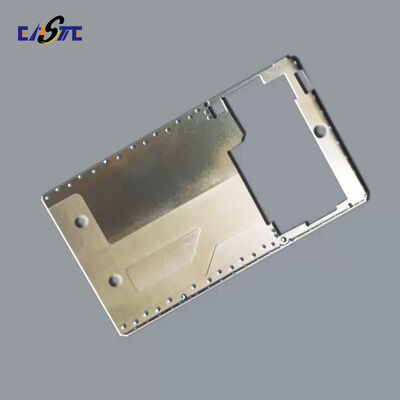

Ultra-Thin Chemical Etched RFI/EMI Shielding Parts for Electronics Shielding Sheets & Enclosures

Ultra-Thin Chemical Etched RFI/EMI Shielding Parts for Electronics Shielding Sheets & Enclosures

EMI Shielding Overview
Xinhaisen manufactures high-performance EMI/RFI shielding partts using precision etching technology. Our shielding solutions effectively block electromagnetic interference while providing optimal grounding contact in electronic devices and systems.

Manufacturing Process
We utilize advanced chemical etching to produce EMI shielding parts with precise patterns and perfect contact fingers. This stress-free process ensures consistent performance and allows for complex designs without tooling limitations.

EMI Shielding Features

• Superior Shielding Effectiveness: Provides 60-100dB attenuation across broad frequency ranges

• Excellent Grounding Contact: Spring fingers maintain constant pressure for reliable electrical connection

• Custom Design Flexibility: Any shape or pattern available without additional tooling costs

• Durable Construction: Maintains performance through repeated assembly cycles

• Lightweight Solution: Thin materials reduce overall weight while ensuring protection

• Corrosion Resistant: Various plating options available for enhanced durability

EMI Shielding Specifications

EMI Shielding Applications

• Consumer Electronics: Smartphones, tablets, laptops, wearables

• Telecommunications: 5G equipment, base stations, network devices

• Medical Devices: Diagnostic equipment, monitoring devices, imaging systems

• Automotive Electronics: ADAS, infotainment systems, control units

• Aerospace & Defense: Avionics, communication systems, radar equipment

• Industrial Electronics: Control systems, automation equipment, power supplies

 Why Choose Xinhaisen?

• Quick Turnaround: Prototype delivery within 3-5 working days

• Precision Manufacturing: Tight tolerances up to ±0.01mm

• Cost Effective: No tooling costs, competitive pricing

• Technical Expertise: 13+ years in precision EMI shielding solutions

• Quality Assurance: Comprehensive testing and inspection

• Volume Flexibility: From prototypes to mass production

FAQ

• Q: What metals can be used for EMI shielding?
  A: Common materials include stainless steel, copper alloys, nickel, and other metals with good conductivity and corrosion resistance.
• Q: What is the minimum thickness you can process?
  A: We can process metal thicknesses as thin as 0.02mm.
• Q: Can you handle both small prototypes and large orders?
  A: Yes, we support flexible production from small-scale samples to high-volume mass production.
• Q: How precise are your EMI shielding components?
  A: Our process achieves line widths down to 0.015mm and hole diameters as small as 0.03mm, with uniform tolerance of ±0.01mm.
• Q: Do you offer design support?
  A: Yes, we can assist with design optimization to ensure manufacturability and performance.
• Q: What industries do you serve?
  A: We serve industries such as telecommunications, consumer electronics, automotive, medical, aerospace, and more.

Welcome to contact us at any time!
