High Precision Stamping Processing EMI Shielding For Electronic Components
Product Details
| Materials: | Stainless Steel Or Customized | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
High Precision Stamping Processing,0.005mm Tolerance Stamping Processing,Electronic Components shielding pcb |
||
Product Description

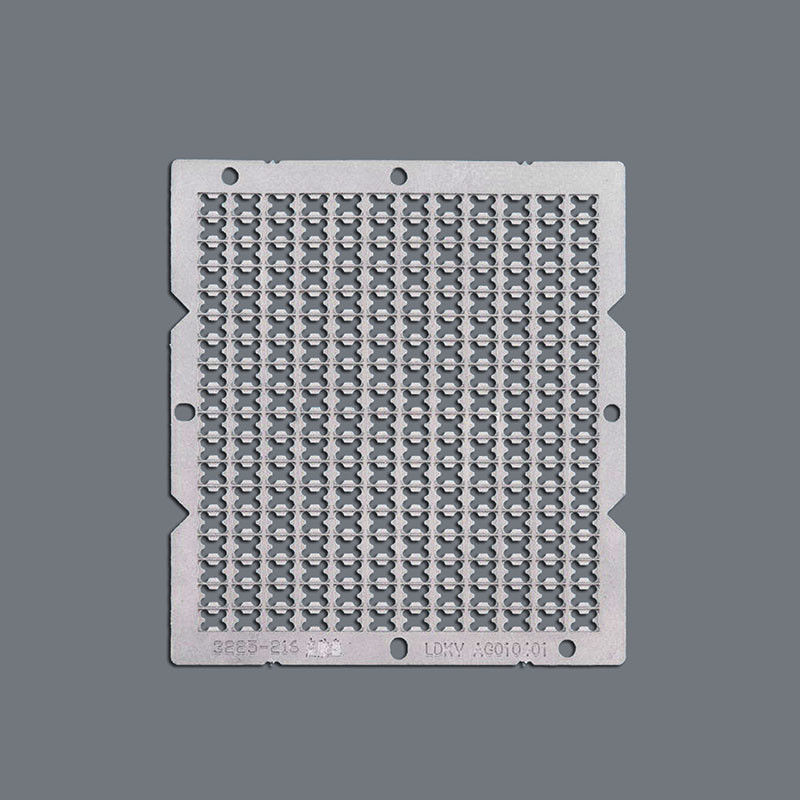

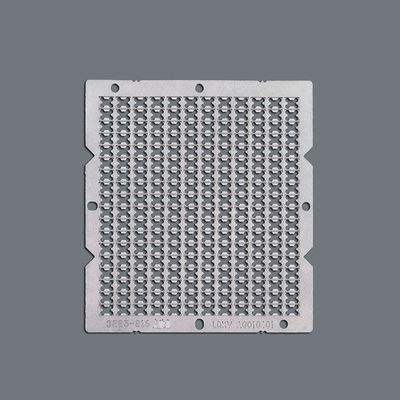

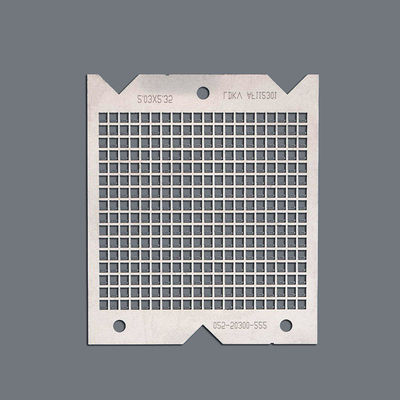

High Precision Stamping EMI Shieldings for Electronic Components
Brief Introduction of Stamping EMI Shieldings:
| Our High Precision Stamping EMI Shieldings are expertly engineered to protect sensitive electronic components from electromagnetic interference (EMI). Manufactured using advanced stamping technology, these shields ensure consistent performance and a precise fit, making them ideal for modern electronic devices where compact design and reliability are crucial. |
Specifications of Stamping EMI Shieldings:
| Material Options: | Stainless steel, Nickel silver, Copper alloy |
| Thickness Range: | 0.1mm – 1.0mm |

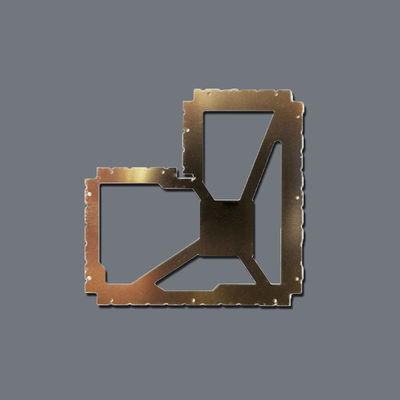

| Shielding Types: | One-piece cans, two-piece (lid & frame), vented or solid |
|
Surface Finish: |
Tin plating, Nickel plating, Silver plating (optional) |
| Tolerance: | ±0.02mm |
|
Production Method: |
High-speed stamping and forming |
Features of Stamping EMI Shieldings:
-
High Shielding Effectiveness: Blocks unwanted EMI/RFI noise to maintain signal integrity.
-
Precision Stamping Technology: Achieves tight tolerances and consistent shapes for dependable performance.
-
Customizable Shapes and Sizes: Supports one-piece and two-piece designs to fit a variety of applications.
-
Durable Materials: Made from stainless steel, copper, or nickel alloys for long-term protection.
-
RoHS & REACH Compliant: Environmentally friendly and safe for global use.
Applications of Stamping EMI Shieldings:
-
Consumer electronics (smartphones, tablets, wearables)
-
Telecommunications equipment
-
Automotive electronic control units (ECUs)
-
Industrial automation and robotics
-
Medical devices
-
IoT and wireless modules
-
Smoke detectors and smart home systems
How to Stamping EMI Shields?
| Stamping EMI shields involves feeding thin metal sheets into high-speed stamping machines equipped with precision dies. The process includes: |
-
Blanking – Cutting out the basic shield shape
-
Forming – Creating walls, vents, and locking tabs as needed
-
Trimming & Deburring – Removing excess edges for a smooth finish
-
Plating (Optional) – Enhancing conductivity and corrosion resistance
This method ensures mass production with tight tolerances, minimal waste, and high repeatability.
The Benefits of Stamping:
-
Cost-Effective for Large Volumes
-
Consistent High Quality
-
Fast Turnaround Time
-
Supports Complex Designs
-
Reduced Material Waste
-
Excellent Scalability
How to Custom EMI Shieldings from Us?
Looking to develop a custom EMI shielding? We provide full support from concept to production:
-
Send Your Drawing or Idea – Our engineers can assist with design optimization
-
Material Selection Guidance – We help choose the right metal for performance and cost
-
Prototyping & Samples – Get a quick sample for testing and validation
-
Mass Production – Reliable quality control and competitive pricing for large runs
-
Global Shipping – Fast and secure delivery worldwide
Contact us today to customize your EMI shielding solution and protect your devices with confidence.
