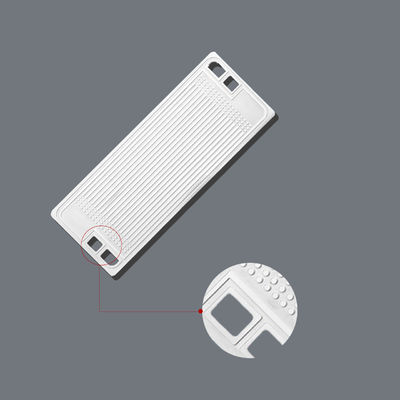

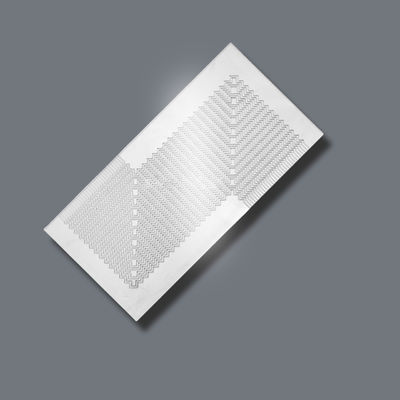

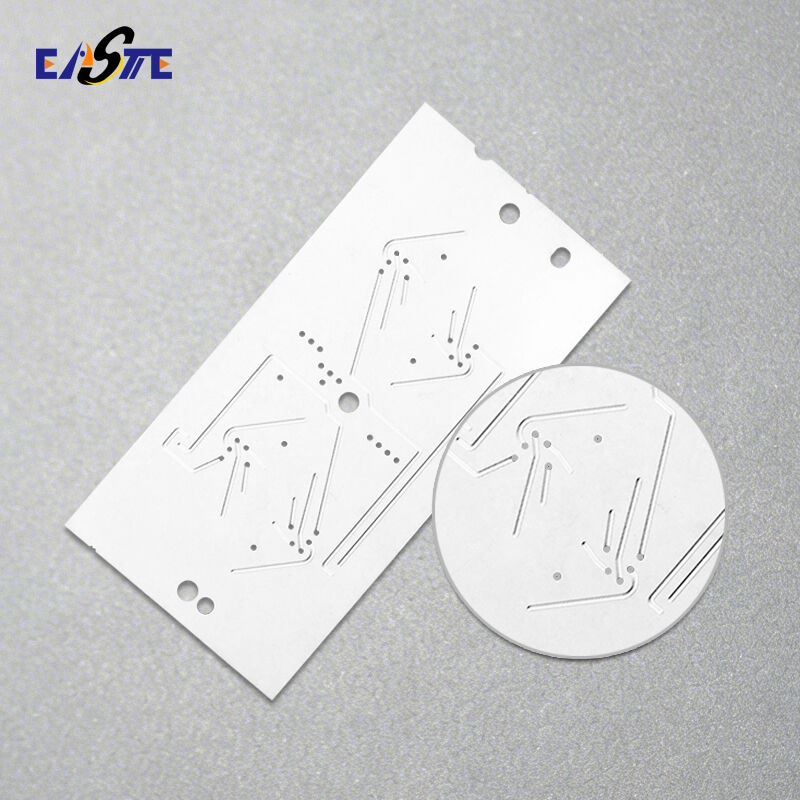

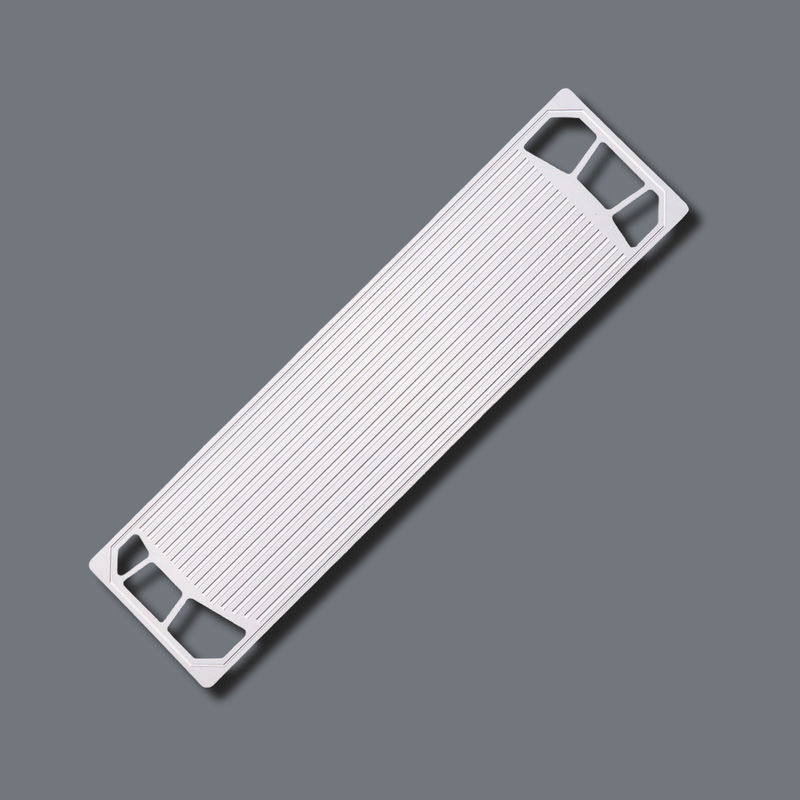

Electrolyzer Flow Field Plates Via Chemical Etching Processing Fabrication
Product Details
| Material: | Stainless Steel, Titanium, Cu-Ni Alloy, Fe-Ni Alloy | Size: | Custom |
|---|---|---|---|
| Color: | Silver, Gold, Etc | Processing Method: | Photo Chemical Etching And Diffusion Welding |
| Highlight |
Electrolyzer flow field plates,Custom flow field plates,Chemical Etching flow field plate |
||
Product Description
Discover durable electrolyzer flow field plates with precision chemical etching. ISO-certified manufacturer offering titanium/stainless steel flow plates with chemical etching advantages.
Electrolyzer Flow Field Plates: Precision-Crafted for Optimal Performance
What are Electrolyzer Flow Field Plates?
Electrolyzer flow field plates are critical components in hydrogen production systems, designed to evenly distribute reactants (water/electrolytes) and efficiently collect reaction products (hydrogen/oxygen). These plates feature intricate micro-channel patterns that maximize surface contact and optimize electrochemical reactions.
Electrolyzer Flow Field Plates Key Product Features
Superior Corrosion Resistance (compatible with acidic/alkaline environments)
Exceptional Electrical Conductivity (＜0.05Ω·cm surface resistivity)
Precision Flow Channels (±0.02mm dimensional accuracy)
High Temperature Tolerance (up to 200°C continuous operation)
Ultra-Thin Profiles (0.1-3mm thickness options)
Electrolyzer Flow Field Plates Material Selection Expertise
We engineer electrolyzer flow field plates using advanced materials:
| Material | Key Advantages | Typical Applications |
| Titanium (Grade 1-5) | Extreme corrosion resistance, lightweight | PEM electrolyzers |
| 316L Stainless Steel | Cost-effective durability | Alkaline electrolyzers |
| Nickel Alloys | High-temperature stability | SOEC systems |
| Iron-Nickel (Invar) | Near-zero thermal expansion | Precision stack assemblies |
Material selection based on electrolyte chemistry, operating pressure (up to 70 bar), and hydrogen purity requirements.
Common Applications:
- PEM Water Electrolyzers
- Alkaline Electrolyzers
- Solid Oxide Electrolysis Cells (SOEC)
- Hydrogen Compression Systems
- Fuel Cell Stacks
Why choose Chemical Etching for Electrolyzer Flow Field Plates?
Our photochemical etching process delivers unmatched advantages:
✔️ Complex Geometry - Create 0.1mm wide channels with sharp 90° angles
✔️ Stress-Free Production - No mechanical deformation or heat-affected zones
✔️ Rapid Prototyping - 5-7 day lead time for functional samples
✔️ Cost Efficiency - No hard tooling required for design iterations
✔️ Burr-Free Edges - Maintain consistent flow characteristics
What is Chemical Etching?
Chemical etching is a subtractive manufacturing process that uses controlled chemical reactions to selectively remove material, creating precise, complex parts.
Our Etching Process Steps:
- Material Prep: Clean and degrease metal sheets.
- Photoresist Coating: Apply UV-sensitive resist.
- Exposure: Transfer flow field design via photomask.
- Development: Remove unexposed resist to reveal etching areas.
- Etching: Immerse in etchant to dissolve unprotected metal.
- Strip & Clean: Remove residual resist and polish.
- QC Inspection: Validate dimensions, conductivity, and surface finish.
Our Manufacturing Capabilities
- Materials: Stainless steel, titanium, copper-nickel alloys, aluminum, Fe-Ni alloys.
- Thickness Range: 0.02mm – 2.0mm.
- Tolerances: ±0.01mm for critical dimensions.
- Additional Services:
- Stamping & Diffusion Welding
- Surface Treatments (e.g., Au/Ni plating, passivation)
- Conductive Adhesive Bonding
- Full IATF 16949-compliant quality control.
The material ,thickness and size we can produce as following
| STEEL AND STAINLESS STEELS | 0.01mm – 1.5mm | 650mm x 1800mm |
| NICKEL AND NICKEL ALLOYS | 0.01mm – 1.5mm | 600mm x 1500mm |
| COPPER AND COPPER ALLOYS | 0.01mm – 1.5mm | 600mm x 1500mm |
| ALUMINIUM | 0.01mm – 1.5mm | 600mm x 1500mm |
| TITANIUM AND TITANIUM ALLOYS | 0.01mm – 1mm | 600mm x 550mm |
How to customize the Electrolyzer Flow Field Plates from us.
1.Please send us your design.
We accept the following file formats:
DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
2.Samples making lead time:3-10days
3.Express:By DHL,Fedex,TNT,around 3-7days
Why Choose Us?
✅ 13+ Years Expertise: Trusted by global clients in automotive, energy, and aerospace.
✅ ISO 9001/14001 & IATF 16949 Certified: Guaranteed quality and sustainability.
✅ Prototype Delivery time: 3-7days.
✅ Mass Production: 2-3Weeks
✅Competitive Pricing: Optimized processes for cost efficiency.
