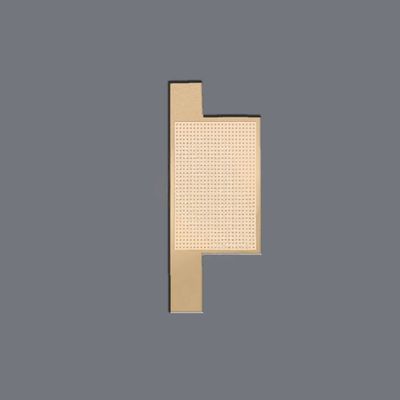

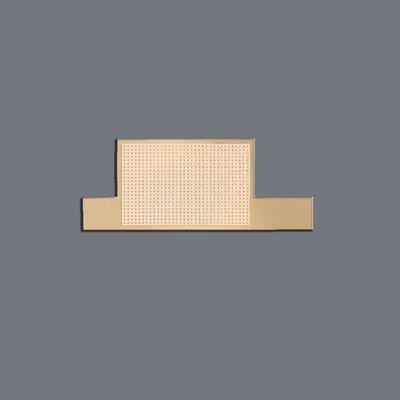

Precision Etched Ultra-Thin Vapor Chambers for Advanced Thermal Management in Compact Electronics
Product Details
| Materials: | Stainless Steel, Titanium Or Customized | Tolerance: | ±0.01mm |
|---|---|---|---|
| Etching Method: | Photo Chemical Etching | Surface Finish: | Smooth |
| Operating Temperature: | -50°C To 200°C | Quality Control: | 100% Inspection |
| Highlight |
ultra thin vapor chamber for electronics,precision etched vapor chamber,compact thermal management vapor chamber |
||
Product Description
Precision Etched Ultra-Thin Vapor Chambers for Advanced Thermal Management in Compact Electronics
Vapor Chamber Overview
A Vapor Chamber is a flat-plate heat pipe that efficiently spreads heat from a small source to a larger surface area. We specialize in manufacturing the precision-etched metal plates and intricate wick structures that form the core of high-performance vapor chambers.
Manufacturing Process
Using advanced photochemical etching, we produce burr-free, stress-free vapor chamber components with complex internal wick patterns, essential for optimal capillary action and thermal performance.
Vapor Chamber Features
-
Ultra-High Precision: Capable of creating micro-features and fine wick structures.
-
Superior Flatness: Ensures perfect contact with heat sources like CPUs/GPUs.
-
Extremely Thin Walls: Process materials as thin as 0.02mm for ultra-slim designs.
-
Burr-Free & Stress-Free: Guarantees structural integrity and vacuum-tight seals.
-
Custom Designs: Rapid production of custom wick patterns and geometries.
Vapor Chamber Specifications
| Parameter | Specification |
|---|---|
| Material | Pure Copper (C1100/OFC),etc. |
| Dimensions | Custom sizes available |
| Working Fluid | Deionized Water or Custom Options |
| Thickness | 0.02-1.5 mm |
| Operating Temp. | -30°C to +150°C (wider range upon request) |
| Surface Finish | Electropolished, Nickel Plating (optional) |
Vapor Chamber Applications
-
5G Communications Equipment: To dissipate heat from powerful base station amplifiers and chipsets.
-
Smartphones & Laptops: Managing thermal loads from processors in increasingly thin devices.
-
High-Performance Computing (HPC): For efficient heat spreading in servers and data centers.
-
Gaming Consoles: Preventing performance throttling during intensive gameplay.
-
Aerospace Avionics: Ensuring reliability of electronic systems in extreme conditions.
Our Advantages
-
Speed & Agility: Rapid response from procurement to production for any order size.
-
High Precision Expertise: Proven capability to handle the most demanding tolerances.
-
Versatile Material Processing: Expertise in etching various metals.
-
Proven Quality: Renowned for reliability and high quality.
Why Choose Xinhaisen?
We combine precision engineering with manufacturing speed. Our etching expertise ensures the high-performance, reliable vapor chambers your advanced thermal solutions demand, getting you to market faster without compromising on quality.
Easy to order! Just contact us with your requirements.
