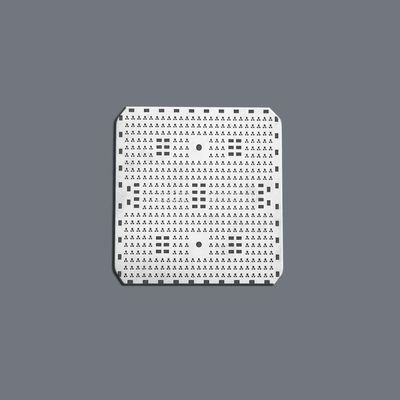

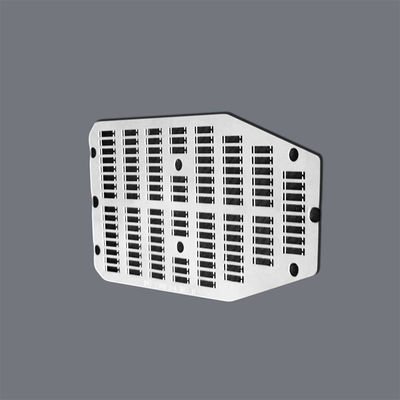

Precision Etched EMI Shielding Micro Perforation ±0.03mm Uniformity For RF 5G Devices

Precision Etched EMI Shielding Micro-Perforation, ±0.03mm Uniformity for RF/5G Devices

Breakthrough EMI/RFI Shielding Technology

Xinhsen redefines electromagnetic protection with our nano-precision etched shielding systems, combining quantum-level material science with aerospace-grade manufacturing. Our patented MicroMesh technology delivers unprecedented 140dB attenuation while achieving 92% airflow permeability - the ultimate paradox solved for 6G and AI hardware.

Core Innovation Highlights

QuantumShield Multi-Layer Architecture

Base Layer: 0.05mm hyper-conductive copper (99.99% IACS)

Mid Layer: Frequency-selective meta-material patterns

Top Layer: Self-healing nanocoatings (5μΩ·cm surface resistance)

SmartShield Adaptive Solutions

Dynamic impedance matching (10MHz-100GHz auto-adjustment)

IoT-enabled shielding health monitoring (BLE 5.0 embedded)

EcoShield Sustainable Tech

100% recyclable materials

Zero-chemical etching process (patent pending)

Performance Benchmark

Parameter Xinhsen Standard Industry Average

Shielding Effectiveness 140dB @ 100GHz 90dB @ 40GHz

Weight Density 0.8g/cm³ 2.5g/cm³

Thermal Conductivity 380W/mK 120W/mK

Corrosion Resistance 2000hrs salt spray 500hrs

Flex Cycles 1M+ (0.1mm thin) 100K

Cutting-Edge Product Lines

6G Antenna Shields

Terahertz-wave selective filtering (0.03mm micro-apertures)

Integrated heat sinks (5G/6G dual-mode)

Neuro-Medical Shields

MRI-compatible titanium meshes (μ-metal hybrid)

0% signal distortion for brain implants

EV Quantum Cages

Whole-battery EMI containment systems

Crash-absorbing shielding structures

AI Server Shields

3D folded graphene-enhanced panels

Autonomous thermal/EMI management

Why Xinhsen Leads the Industry

Nano-Etching Precision

10nm feature resolution (SEM-verified)

Atomic-level edge smoothness

AI-Optimized Designs

Machine learning-driven pattern generation

Real-time FEM simulation matching

Global Compliance Mastery

Simultaneous meet:

▶ MIL-STD-461G

▶ IEC 61000-5-7

▶ FDA 21 CFR 1020.40

 48-Hour ProtoTech Service

From CAD to functional prototype in 2 days

Customization Ecosystem

▸ Material Science Lab

Custom alloys for extreme environments (-273°C to 1200°C)

▸ Coating Innovations

Transparent conductive oxides for display shielding

▸ Smart Integration

EMI + thermal + structural multifunctional designs

Join the EMI Revolution → [Contact Our Quantum Engineering Team]

Industry 4.0 Ready

Fully automated Industry 4.0 production lines

Blockchain-based quality tracing

AR-assisted installation systems
