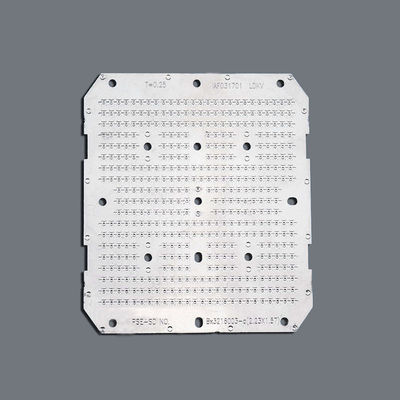

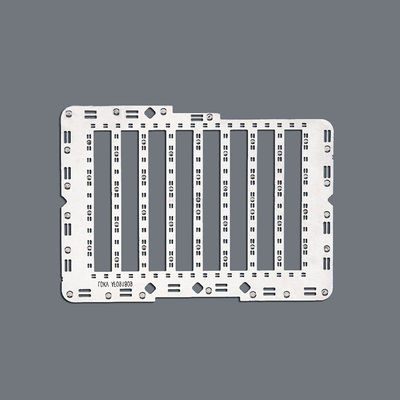

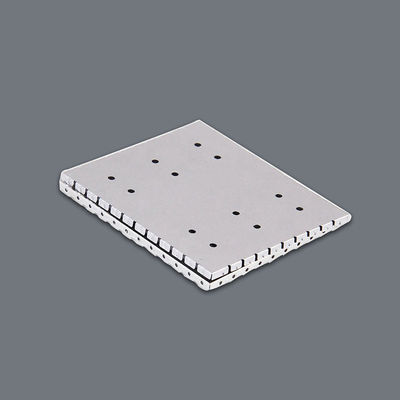

Custom Stamping 1.0MM Copper Alloy EMI RFI Shieldis For PCB And Circuit Protection
Product Details
| Materials: | Stainless Steel Or Customized | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
Custom Stamping Processing,0.02mm Stamping Processing,1.5mm pcb emi shield |
||
Product Description
Custom Stamping 1.0MM Copper Alloy EMI RFI Shieldis For PCB And Circuit Protection
Brief Introduction of Stamping EMI RFI Shields for PCB:
| Our Custom Stamping EMI Shieldings are precision-engineered metal enclosures designed to block electromagnetic interference (EMI) on PCBs and electronic circuits. Ideal for protecting sensitive components in high-frequency environments, our EMI shields help maintain signal integrity, reduce crosstalk, and meet compliance with EMC regulations. We offer full customization services tailored to your board design, production volume, and shielding requirements. |
Specifications of Stamping EMI RFI Shields for PCB:
| Material Options: | Stainless Steel, Nickel Silver, Tin-plated Steel, Copper Alloys |
| Thickness Range: | 0.15mm – 1.0mm (customizable) |
| Shielding Types: |
One-piece, Two-piece (cover + frame), or Clip-on |
|
Surface Finish: |
Tin plating, Nickel plating, or customized coating |
| Tolerance: | ±0.02mm |
|
Production Method: |
High-speed stamping and forming |
|
Packing: |
Tape & reel, tray, or bulk, as per your requirement |
|
MOQ: |
As low as 100 pcs for prototyping |
Features of Stamping EMI RFI Shields for PCB:
- High Shielding Effectiveness: Blocks both EMI and RFI for stable circuit performance
- Customizable Design: Sizes, shapes, materials, and mounting styles tailored to your PCB layout
- Precision Metal Stamping: Ensures consistent quality and tight tolerances
- Single-piece & Multi-piece Options: Suitable for different design needs and assembly workflows
- RoHS & REACH Compliant: Environmentally safe materials and processes
- Rapid Prototyping Available: Get samples within days for fast project development
Applications of Stamping EMI RFI Shields for PCB:
- Consumer Electronics (Smartphones, Tablets)
- Medical Devices (Portable Monitors, Diagnostic Tools)
- Industrial Control Systems
- Automotive Electronics (ADAS, ECU)
- Wireless Communication Devices
- IoT Devices and Wearables
- Smoke Detectors and Alarm Systems
How to Stamping EMI RFI Shields for PCB?
| EMI shielding stamping involves precision cutting and forming of thin metal sheets using high-tonnage presses. The process includes: |
-
Die Design: Based on your CAD drawing or PCB outline
-
Material Selection: Choose suitable metal based on shielding needs and environment
-
Tooling Setup: CNC-machined dies for accurate forming
-
Stamping: High-speed presses shape the shield with precision
-
Secondary Processes: Surface treatment, laser marking, or tab customization
-
Quality Control: 100% inspection for dimensions and performance
The Benefits of Stamping:
-
Cost-Effective for Large Volumes
-
Consistent High Quality
-
Fast Turnaround Time
-
Supports Complex Designs
-
Reduced Material Waste
-
Excellent Scalability
How to Custom EMI RFI Shields for PCB from Us?
Looking to develop a custom EMI RFI Shields for PCB? We provide full support from concept to production:
-
Send Your Drawing or Idea – Our engineers can assist with design optimization
-
Material Selection Guidance – We help choose the right metal for performance and cost
-
Prototyping & Samples – Get a quick sample for testing and validation
-
Mass Production – Reliable quality control and competitive pricing for large runs
-
Global Shipping – Fast and secure delivery worldwide
Contact us today to customize your EMI shielding solution and protect your devices with confidence.
