Product Overview

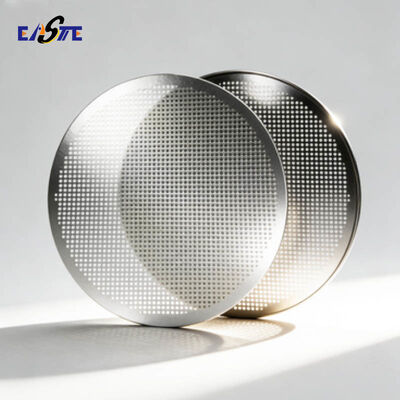

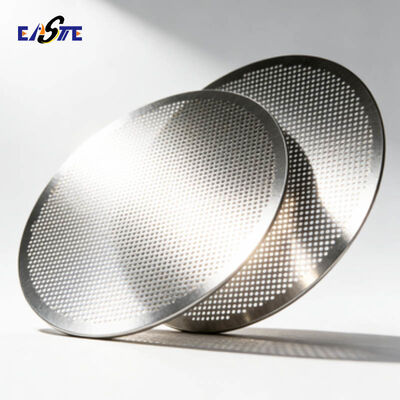

Filter meshes from Xinhsen Technology are precision-engineered metal screens designed for superior filtration, separation, and protection across a wide range of industries. Manufactured using advanced etching technology, our filter meshes ensure exact pore sizes, exceptional uniformity, and consistent performance in demanding environments. Ideal for applications requiring fine filtration, fluid control, or particle retention, we provide customized solutions that meet strict technical and quality standards.

Manufacturing Process
Our filter meshes are produced through high-precision chemical etching, a subtractive manufacturing method that enables intricate patterns without burrs, stress, or deformation. The process involves:

• Material selection and cleaning

• Coating with a photoresist layer

• Exposure to UV light through a designed pattern mask

• Chemical etching to remove unmasked areas

• Thorough cleaning and quality inspection

This method ensures accurate, repeatable results with tight tolerances and smooth edges, suitable for even the most delicate mesh designs.

Product Features

• High Precision: Micro holes as fine as 0.03mm, line width down to 0.015mm

• Uniform Structure: Consistency within ±0.01mm across the entire mesh

• Burr-Free & Smooth Edges: No mechanical stress, no debris generation

• Wide Material Compatibility: Stainless steel, copper, aluminum, nickel, titanium, and more

• Customizable Designs: Flexible hole shapes, sizes, and open area ratios

• Durability: Corrosion-resistant, high-temperature resistant, and mechanically stable

Product Specifications

Product Applications

• Industrial Filtration: Fuel filters, hydraulic filters, air filters, chemical sieves

• Food & Beverage: Strainers, brewing screens, food processing mesh

• Medical & Pharmaceutical: Fluid filtration, drug screening, medical device components

• Electronics: EMI/RFI shielding, ventilation covers, speaker meshes

• Automotive & Aerospace: Oil filtration, sensor protection, cabin air filters

• Consumer Goods: Coffee machine filters, juicer screens, vacuum cleaner meshes

Our Advantages

• Fast Turnaround: Rapid prototyping and high-volume production capabilities

• High Quality: Strict quality control, consistent performance, and reliable delivery

• Expert Support: Engineering assistance for custom designs and material selection

• Competitive Pricing: Cost-effective solutions without compromising precision

• Wide Experience: Serving industries from optics, medical, automotive to consumer electronics

FAQ
Q: What materials do you offer for filter meshes?
A: We work with various metals including stainless steel, copper, aluminum, nickel, titanium, and specialty alloys to suit different environmental and operational needs.

Q: Can you produce custom hole shapes and patterns?
A: Yes, our etching process allows full customization of hole geometry, pattern layout, and open area ratio based on your specifications.

Q: What is the lead time for samples and bulk orders?
A: Samples can be delivered within 5–7 days. Bulk order lead time depends on volume and complexity, typically 2–4 weeks.

Q: How do you ensure consistency in mesh quality?
A: Each batch undergoes dimensional checks, visual inspection, and performance testing to guarantee uniformity and compliance with specifications.

Q: Do you provide technical drawings or design support?
A: Yes, our engineering team can assist with design optimization, material recommendations, and provide CAD files for approval.

Q: What industries do you primarily serve?
A: We serve communications, acoustics, optics, medical, aerospace, automotive, home appliances, and consumer electronics industries, among others.

Welcome to contact us at any time.
