Custom Ultra Thin Metal Shims 0.02–0.5mm Photo Chemical Etching Manufacturer for USA & Europe Market
Product Details
| Materials: | Stainless Steels, Carbon Spring Steels, Copper, Brass, Nickel Silver, Mild Steel, Phosphor Bronze, Silver, Beryllium Copper, Aluminium, Nickel, Mu Metal, Alloy 42, Alloy 52 & Many Others | Thickness: | 0.01mm-2.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Other Treatment: | Plating, Spraying, Etc. | Application: | Energy, Medical, Automotive, Precision Engineering |
| Highlight |
custom ultra thin metal shims,photo chemical etching metal shims,precision metal shims with warranty |
||
Product Description

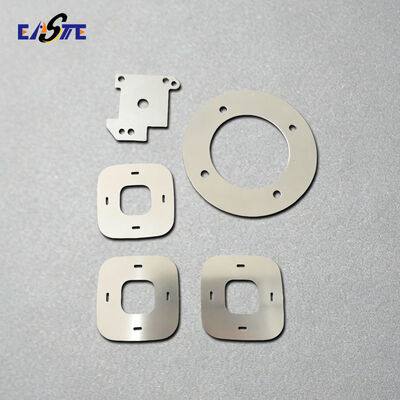

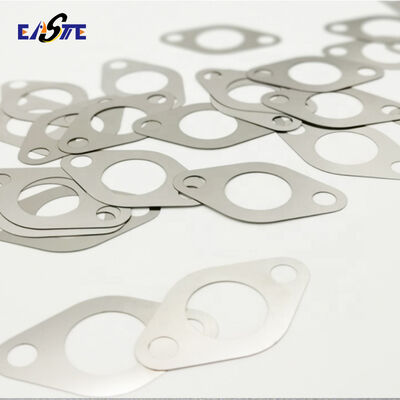

Custom Ultra Thin Metal Shims 0.02–0.5mm Photo Chemical Etching Manufacturer for USA & Europe Market
We specialize in custom ultra thin metal shims manufactured by photo chemical etching (PCE), offering thicknesses from 0.02mm to 0.5mm for high-precision applications. As a professional photo etching manufacturer serving USA and Europe markets, we provide reliable, repeatable, and fully customized shim solutions for demanding engineering assemblies.
Advanced Photo Chemical Etching for Ultra Thin Shims
Photo chemical etching is the ideal process for producing ultra thin, high-accuracy shims without mechanical stress. Unlike stamping or laser cutting, PCE allows us to create complex geometries, fine features, and burr-free edges, ensuring excellent flatness and dimensional consistency across batches.
Photo Chemical Etching Process advantages:
-
No mechanical stress or deformation
-
Burr-free, smooth edges
-
Excellent flatness for ultra thin parts
-
High repeatability for mass production
-
Ideal for tight tolerance and complex designs
|
|
 |
|
|
Strong Customization Capability
We offer full customization based on your drawings or functional requirements, supporting both rapid prototyping and stable volume production.
Customization options include:
| Material selection: |
Stainless Steel (301, 304, 316), Copper, Brass, Nickel, Titanium, and specialty alloys |
|
Thickness range: |
0.02mm – 0.5mm with stable thickness control |
| Dimensions & design: | Customized outer profiles, internal cutouts, micro holes, slots, and complex shapes |
| Tolerance control: | Tight tolerances suitable for precision engineering assemblies |
| Surface treatments: | Cleaning, polishing, passivation, plating, or customer-specified finishes |
| Production volume: | Prototypes, small batches, and high-volume OEM orders |
Applications of Chemical Etched Metal Shims
Our custom ultra thin etched shims are widely used in:
-
Automotive and EV systems
-
Electronics and semiconductor equipment
-
Medical devices and instruments
-
Precision machinery and automation
-
Aerospace and high-reliability assemblies
Why Choose Us as Your Etched Shim Manufacturer
-
Dedicated photo chemical etching manufacturer
-
Extensive experience serving USA & Europe customers
-
Fast sampling and flexible design iteration
-
Stable quality for repeat orders
-
Cost-effective solution for ultra thin and complex shim designs
If you have drawings, CAD files, or application requirements, our engineering team is ready to provide free technical evaluation, fast quotation, and customized etched shim solutions tailored to your project.
Or fast contact at Bella.xiang@xinhsen.com / WA +86 18025476918
