Bipolar Plates Overview

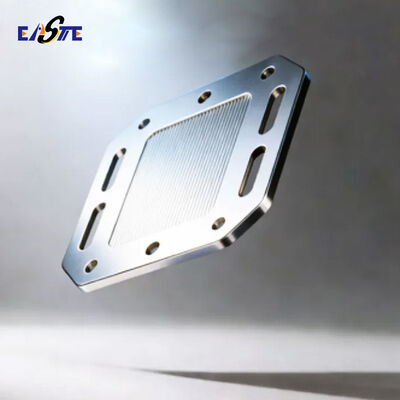

Xinhaisen is a leading specialist in precision metal etching, offering high-performance, customized Bipolar Plates (BPPs) for Proton Exchange Membrane (PEM) fuel cells and electrolyzers. Our plates are engineered to meet the demanding requirements of next-generation energy applications, providing exceptional electrical conductivity, corrosion resistance, and structural integrity. Through our advanced etching technology, we deliver complex flow field patterns with unparalleled precision and consistency, enabling optimal gas distribution, water management, and overall stack efficiency.

Manufacturing Process

We utilize state-of-the-art photochemical etching (PCE), a subtractive, stress-free, and burr-free manufacturing process.

• Cleaning: The selected metal substrate is meticulously cleaned.

• Lamination: Application of a photosensitive resist film.

• Exposure & Development: UV light exposes the precise flow field pattern from a digital tool, which is then developed.

• Etching: Controlled chemical etching removes exposed areas, forming the intricate channels and features.

• Stripping & Finishing: The resist is removed, followed by thorough cleaning and optional post-processing.

Bipolar Plates Features

• Ultra-High Precision: Capable of producing extremely fine, complex flow field geometries (channels, lands, ports) with tight tolerances.

• Burr-Free & Stress-Free: The etching process introduces no mechanical stress, thermal distortion, or burrs, eliminating downstream processing and ensuring perfect sealing surfaces.

• Material Flexibility: We process a wide range of conductive materials, including stainless steel (316L, 304), titanium, aluminum, and coated metals.

• Rapid Prototyping & Scalability: Digital tooling allows for fast, cost-effective design iterations and seamless scaling from R&D prototypes to high-volume production.

• Superior Uniformity: Exceptional consistency across the entire plate surface and from part-to-part, critical for stack performance and longevity.

• Custom-Designed Flow Fields: We work with clients to etch optimized patterns (serpentine, parallel, interdigitated, biomimetic) for specific application needs.

Bipolar Plates Specifications

Bipolar Plates Applications

• PEM Fuel Cells: For automotive, stationary power, UAVs, and portable devices.

• PEM Water Electrolyzers: For green hydrogen production.

• Redox Flow Batteries (RFB): As electrode plates.

• CO2 Reduction Electrolyzers.

• Laboratory & Research Stack Development.

Our Advantages

• Precision Expertise: Core competency in microfabrication via etching, achieving features unmatched by stamping or machining for prototypes and medium/high-volume runs.

• Speed & Agility: "Unmatched rapidity" from material procurement to finished parts. We excel at handling urgent, high-mix, and high-volume orders.

• Vertical Integration: Control over the entire process from material sourcing to final inspection ensures quality, cost-effectiveness, and supply chain security.

• Proven Reputation: Recognized by clients for high precision, fast turnaround, and the ability to handle a diverse range of parts.

• Collaborative Engineering: We partner with clients from design-for-manufacturability (DFM) through to production, ensuring optimal, cost-effective solutions.

FAQ

Q1: Why choose photochemical etching over stamping for Bipolar Plates?
A: Etching is ideal for complex, fine features, R&D iterations (no expensive hard tooling), and thin materials. It produces no burrs or work hardening, reducing sealing issues. Stamping is more cost-effective only for very high volumes of simple, stable designs.

Q2: Can you process coated metals for enhanced corrosion resistance?
A: Yes, we can etch substrates pre-coated with gold, platinum, or conductive carbon layers, and we also offer post-etch coating application services in partnership with specialized providers.

Q3: What file format do you require for production?
A: We prefer vector-based formats such as AutoCAD DXF or DWG. We can also work with Gerber or PDF files and provide DFM feedback.

Q4: What is your lead time for prototypes and production?
A: Prototype lead times are typically 1-3 weeks, depending on material. Production timelines are optimized for speed, and we are structured to accommodate large, sudden orders efficiently.

Q5: Do you provide quality certifications and testing reports?
A: Yes. We implement strict in-process SPC controls and can provide dimensional reports, material certificates, and coordinate measuring machine (CMM) data as required.
