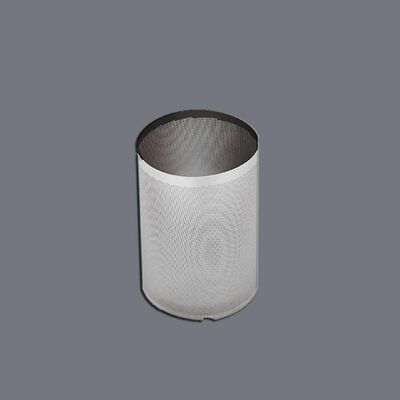

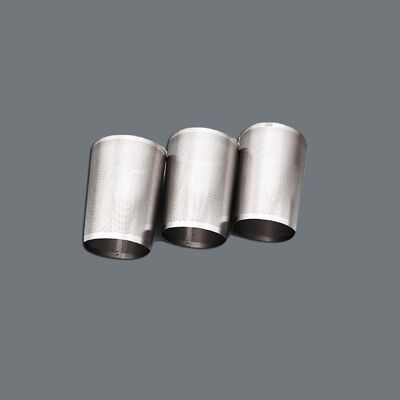

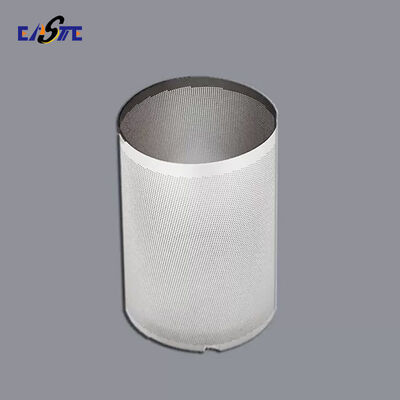

Custom Photo Chemical Etched Metal/Stainless Steel Meshes for the US Market

Custom Photo Chemical Etched Metal/Stainless Steel Meshes for the US Market

Metal Mesh Overview
Metal Mesh is a high-precision etched metal screen or grid, widely used in electronics, acoustics, optics, filtration, and shielding applications. It is characterized by ultra-fine holes, smooth edges, consistent uniformity, and excellent durability. Our metal mesh is custom-manufactured through advanced chemical etching technology, ensuring precise control over hole size, shape, spacing, and material thickness.

Manufacturing Process
We use state-of-the-art photochemical etching technology:

• Material Cleaning – The selected metal sheet is thoroughly cleaned.

• Coating – A photoresist layer is applied.

• Exposure – UV light transfers the mesh pattern onto the material.

• Developing – Unwanted resist is removed to expose etching areas.

• Etching – Precision etching forms fine holes and patterns.

• Stripping & Inspection – Resist is removed, and products are checked for quality.

Metal Mesh Features

• High Precision – Micro holes as fine as 0.03mm, line width down to 0.015mm.

• Uniformity – Tolerance within ±0.03mm across the whole mesh.

• Burr-Free – Smooth edges, no mechanical stress, no deformation.

• Wide Material Range – Stainless steel, copper, aluminum, nickel, titanium, etc.

• Flexible Design – Custom patterns, hole shapes, sizes, and open area ratios.

• Fast Turnaround – Suitable for urgent and high-volume orders.

Metal Mesh Specification

Metal Mesh Applications

• Electronics – EMI shielding, touch sensors, flexible circuits, metal mesh electrodes.

• Acoustics – Speaker grilles, microphone meshes, sound filters.

• Optics – Aperture masks, optical alignment grids, light guides.

• Filtration – Filters for liquids, gases, medical devices, coffee machines, juicers.

• Industrial – Anti-static belts, masking sheets, insect nets, precision sieves.

• Automotive & Aerospace – Vent meshes, sensor covers, decorative grilles.

Our Advantages

• Fast & High-Quality Production – From raw material sourcing to finished products.

• Wide Material Expertise – Experience with various metals and alloys.

• High-Precision Capability – Advanced etching equipment and strict quality control.

• Scalable Orders – Support both small prototypes and large-volume production.

• Good Reputation – Recognized by customers for precision, speed, and versatility.

FAQ

Q1: What metals can be used for Metal Mesh?
We work with stainless steel, copper, aluminum, nickel, titanium, and their alloys.

Q2: What is the smallest hole size you can achieve?
We can etch holes as small as 0.03mm in diameter.

Q3: Can you produce custom-shaped holes?
Yes, we support round, square, hexagonal, slot, and custom-designed hole patterns.

Q4: What is your tolerance control level?
We maintain uniformity within ±0.03mm across the mesh.

Q5: Do you provide samples?
Yes, we offer samples for evaluation. Contact us for details.

Q6: What industries do you serve?
We supply to communication, medical, automotive, aerospace, home appliances, consumer electronics, and industrial sectors.

Q7: How long is your production lead time?
Lead time depends on order volume and design complexity. We are known for fast turnaround even for large orders.

Welcome to contact us at any time!
