Custom High Precision Fine 0.02-0.5mm Photo Etched Stainless Steel Mesh

Custom High Precision Fine 0.02-0.5mm Photo Etched Stainless Steel Mesh

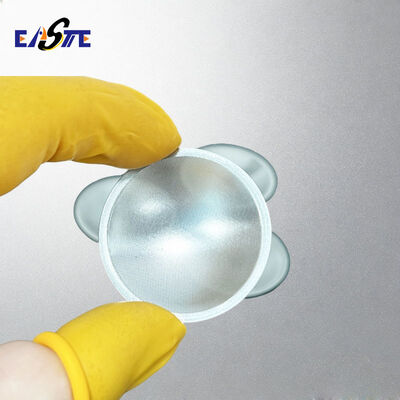

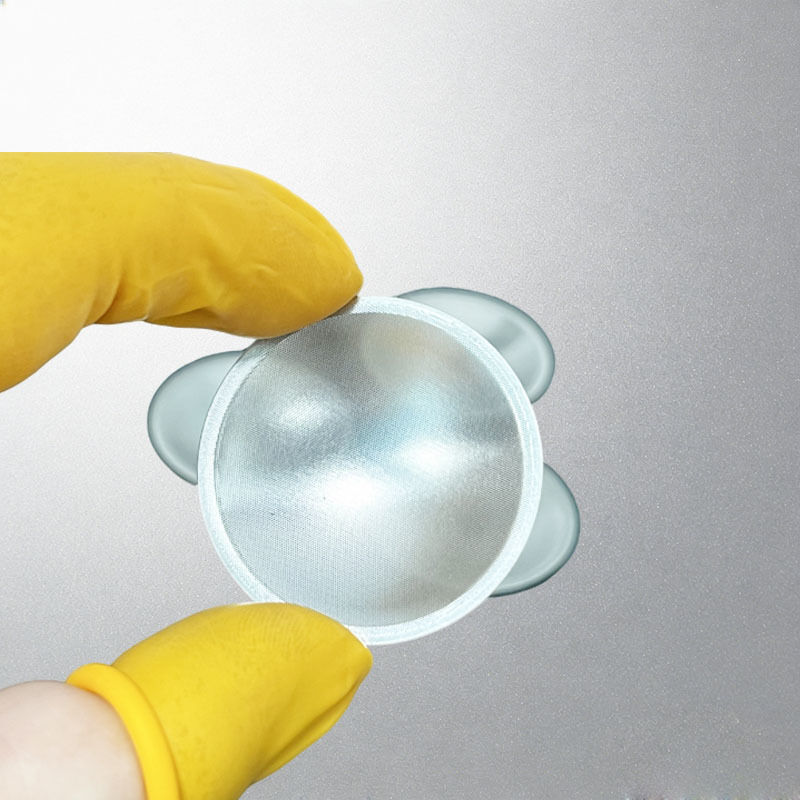

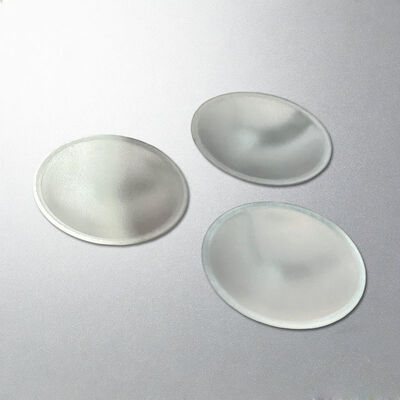

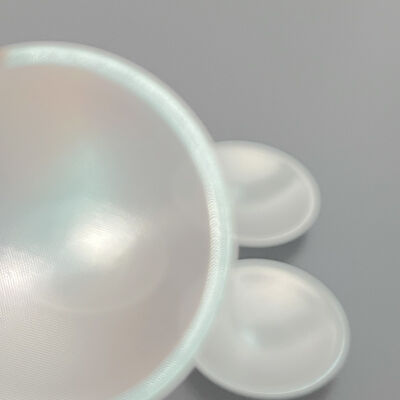

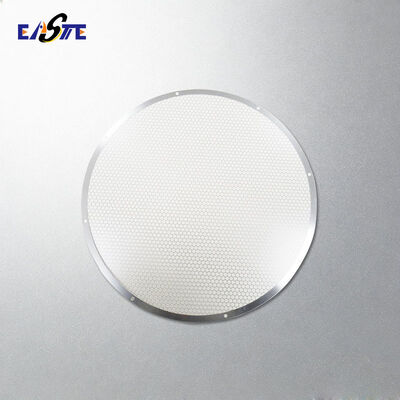

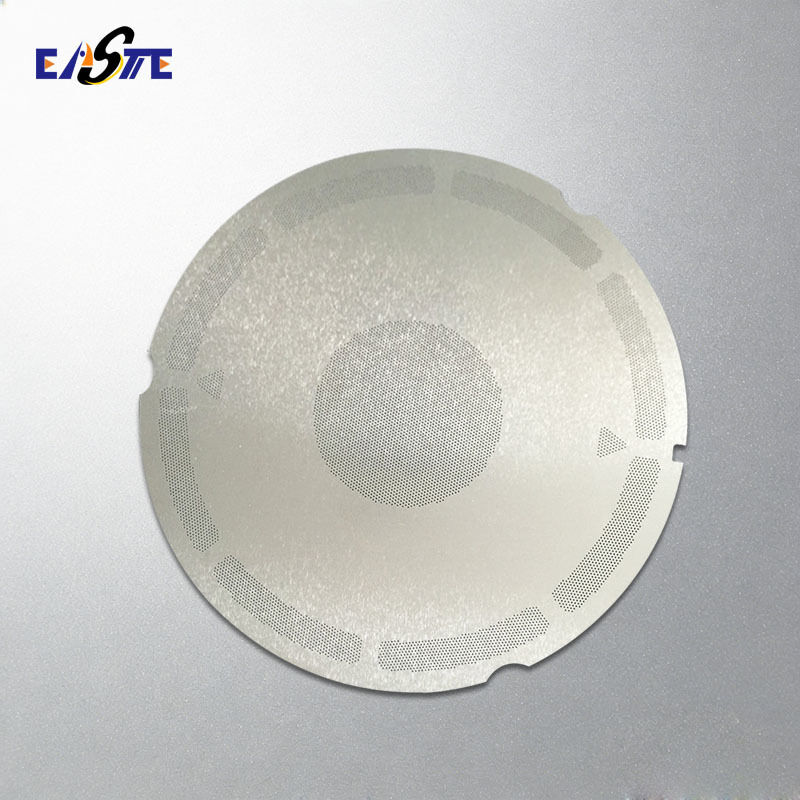

Custom Photo Etched Stainless Steel Mesh

Our Custom High Precision Photo Etched Stainless Steel Mesh is produced using advanced photo chemical etching (PCM) technology, enabling the manufacture of ultra-fine, highly consistent metal meshes with exceptional dimensional accuracy.

With a thickness range from 0.02mm to 0.5mm, this etched mesh solution is designed for applications requiring micro-scale apertures, complex patterns, and flawless edge quality that conventional weaving, punching, or laser cutting cannot achieve.

Precision Photo Chemical Etching Technology

Photo chemical etching is a non-contact, stress-free manufacturing process that removes material through controlled chemical reactions rather than mechanical force or heat.
This allows us to create high-density perforated metal meshes with:

• Burr-free and smooth edges

• No thermal distortion or micro-cracks

• Uniform aperture size and pitch

• Excellent repeatability for batch production

The process is especially suitable for ultra-thin stainless steel meshes where precision and material integrity are critical.

Specifications of Photo Etched Stainless Steel Mesh

Key Advantages of Photo Etched Stainless Steel Mesh

• Ultra-High Precision
  Ideal for micro-perforation and complex mesh layouts
• Design Flexibility
  Supports variable hole sizes, gradients, and intricate patterns
• Stress-Free Processing
  Maintains original material properties and flatness
• High Consistency & Scalability
  Suitable for prototyping and mass production

Typical Applications of Photo Etched Stainless Steel Mesh

• Precision filtration and flow control

• Automotive sensors and protection meshes

• Medical and laboratory devices

• Electronics and EMI shielding

• Energy, hydrogen, and micro-channel systems

Customization & Value-Added Services

• Design optimization & engineering support

• Electropolishing and passivation

• Forming, bending, and assembly

• Clean packaging for sensitive applications

• OEM & ODM manufacturing services

How to Customize Your Etched Filter Mesh

Step 1 – Send Your Requirements
Provide drawings (CAD / PDF) or application details including material, thickness, hole size, and quantity.

Step 2 – Engineering Evaluation
Our engineers review your design and offer optimization suggestions for manufacturability, precision, and cost efficiency.

Step 3 – Quotation & Sample
We issue a detailed quotation and can provide custom samples for testing and validation.

Step 4 – Mass Production & Delivery
After approval, we proceed with stable mass production and global shipment.

Why Choose Our Custom Etching Service?

• Over 13 years of precision chemical etching experience

• Specialized in ultra-thin metal etching down to 0.05mm

• Strict quality control and traceability

• Fast sampling & flexible MOQ

• OEM & ODM support
