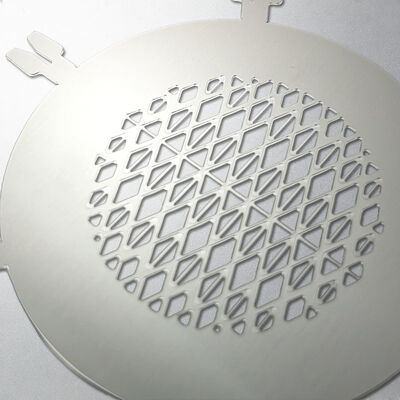

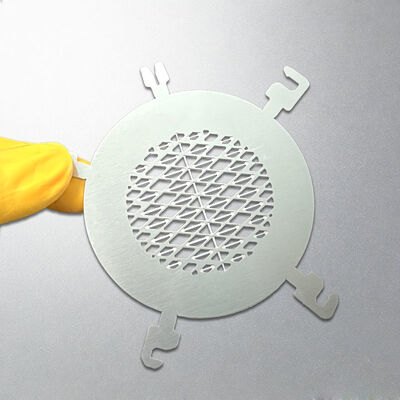

Precision-etched Stainless Steel Mesh Metal Components Custom Service

Precision-etched Stainless Steel Mesh Metal Components Custom Service

Product Overview

Welcome to our precision-etched stainless steel mesh assembly customization service. We specialize in delivering high-precision, high-quality, fully customized metal etching solutions to meet the specialized requirements for precision metal components across various industries. Utilizing advanced photochemical etching technology and a rigorous quality control system, we produce complex geometries and microstructures that are difficult to achieve through traditional manufacturing methods.

Core Advantages of Precision Etching Custom Service

Technical Specifications of Precison Etching Capacity

• Precision Etching Production Process Flow

1. Design Optimization - Engineering team assists in refining design files	2. Material Preparation - Selecting metal sheets, surface pretreatment	3. Photolithography Imaging - High-precision exposure, pattern transfer
4. Chemical Etching - Precise control of etching depth and speed	5. Post-Processing - Cleaning, film removal, heat treatment	6. Quality Inspection - Full-dimension measurement, performance testing

• Standard Parameter Range of Precision Etching

What can we etching?

 * Encoder wheels
 * Linear encoders
 * EMI RFI Shielding,
 * Components
 * Shim mask
 * Etching craft
 * Ornaments
 * Precision machinery parts
 * Screened meshes / filters

Benefits of Photochemical Etching:

1. High Accuracy:
Achieve intricate and detailed digital designs that are not possible with traditional machining.

2. Flexibility:
Easily accommodate design changes and modifications without the need for expensive tooling.

3. Material Efficiency:
Save money by reducing waste and optimizing materials.

4. No Mechanical Stress:
Maintain material integrity by avoiding mechanical deformation during etching.

5. Scalability:
Efficiently scale from prototype to high-volume production.

6. Cost effective:
Eliminates the need for expensive and time-consuming tooling.

7. Cost efficient:
Part complexity does not affect the production time.

8. Rapid prototyping:
Produce different designs at the same time without added effort.

FAQ:

Q: What advantages does the etching process offer compared to traditional stamping?
A: Etching eliminates the need for physical molds, making it ideal for small-batch customization; It avoids mechanical stress, preserving material properties; enables more intricate patterns; produces burr-free edges requiring no secondary processing.

Q: What is the minimum order quantity?
A: Typically 100 pieces based on complexity; negotiable for special designs.

Q: How long does it take from design to delivery?
A: 5-7 business days for samples; 2-4 weeks for production runs depending on quantity.

Q: What design file formats do you accept?
A: We support AutoCAD (DWG/DXF), CorelDraw (CDR), Adobe Illustrator (AI), PDF, and high-resolution bitmaps.

Q: How do you ensure consistency in etching?
A: We utilize a fully automated etching control system with real-time parameter monitoring. Every batch undergoes random full-dimension measurement.
