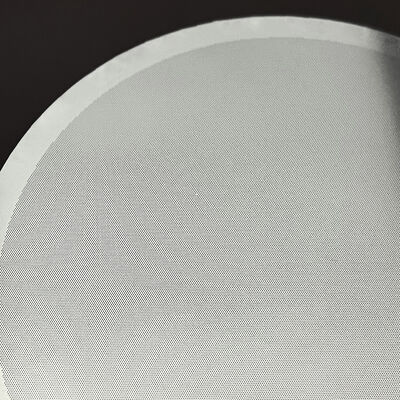

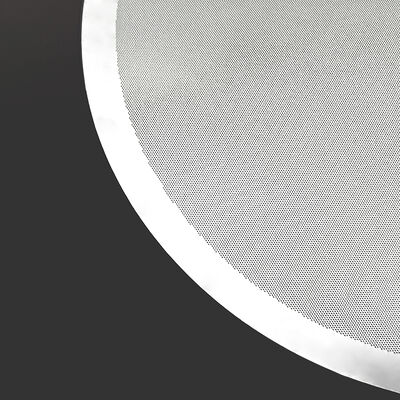

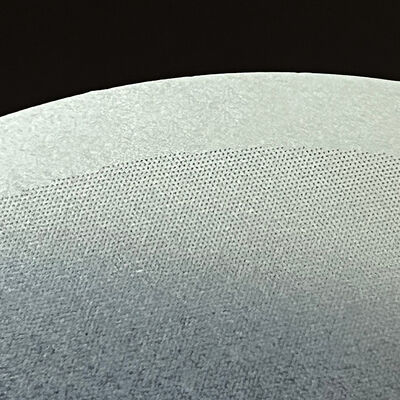

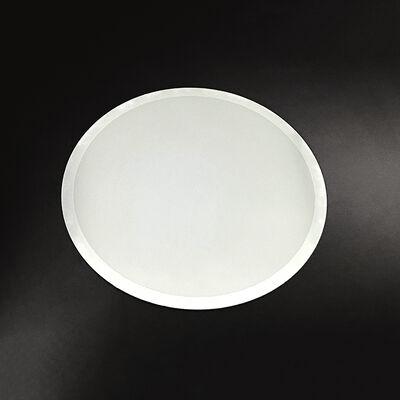

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration
Product Details
| Materials: | Stainless Steel (304, 316), Nickel, Copper, Brass, Titanium | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Surface Finish: | Natural Metal Or Electropolished | Other Processing: | Plating, Stamping, Laser Cutting |
| Highlight |
stainless steel photo etch mesh,fine metal filter mesh screen,high precision filtration mesh |
||
Product Description
High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration
| Our high precision stainless steel photo-etched filter mesh screens are manufactured using advanced photo chemical etching technology, enabling the production of ultra-fine, burr-free filtration components with excellent dimensional accuracy and consistency. Compared with woven wire mesh or mechanically punched screens, chemical etching provides superior control over micro hole geometry and open area, ensuring reliable and repeatable filtration performance. |  |
Chemical Etching Technology Advantage
Photo chemical etching is a non-contact, stress-free process that allows:
-
Precise and uniform micro apertures without burrs or deformation
-
No heat-affected zones, maintaining original material properties
-
High repeatability for complex and high-density hole patterns
-
Stable performance for thin and ultra-thin metal filters
This makes photo-etched mesh ideal for applications requiring tight filtration accuracy and long-term reliability.
Specifications of Photo Etched Metal Filter Mesh Screen:
Secondary Processing Options
To meet complete application needs, we provide a variety of post-processing services:
-
Electropolishing for smoother surfaces and improved cleanliness
-
Chemical passivation for enhanced corrosion resistance
-
Forming, bending, and deep drawing
-
Laser cutting for outer profile accuracy
-
Assembly with frames or multi-layer lamination
Typical Filtration Applications
Photo-etched stainless steel filter mesh screens are widely used in:
-
Industrial liquid and gas filtration systems
-
Automotive fuel, oil, and air filters
-
Medical and laboratory filtration devices
-
Chemical processing and environmental equipment
-
Electronics ventilation and protection filters
With strong chemical etching expertise, strict quality control, and flexible customization capability, we deliver precision metal filter mesh solutions that meet demanding filtration standards.
How to Customize photo etched metal filter mesh screen from us?
-
Send Requirements
Provide material, thickness, hole size/pattern, dimensions, or drawings. -
Engineering Review
We evaluate etching feasibility and optimize the design if needed. -
Sample Approval
Photo-etched samples are made for testing and confirmation. -
Mass Production
Stable, burr-free production after sample approval. -
Secondary Processing
Optional polishing, passivation, forming, or assembly.
