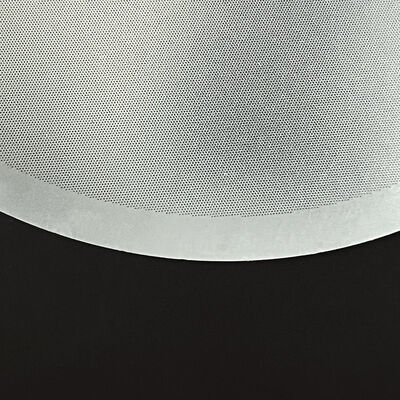

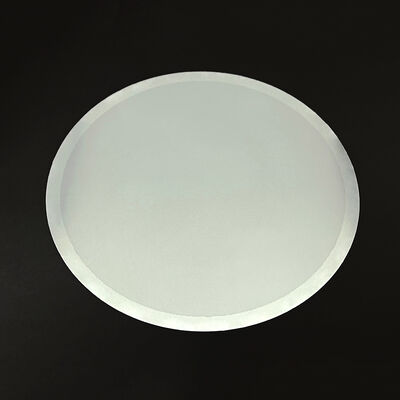

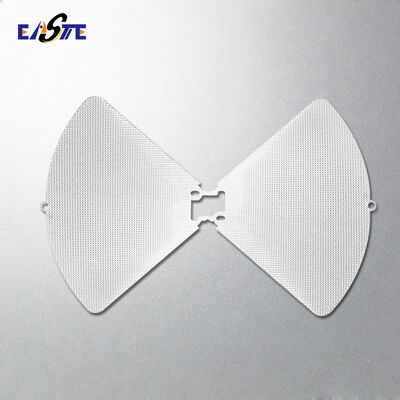

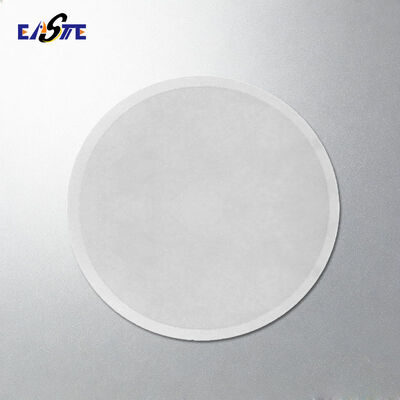

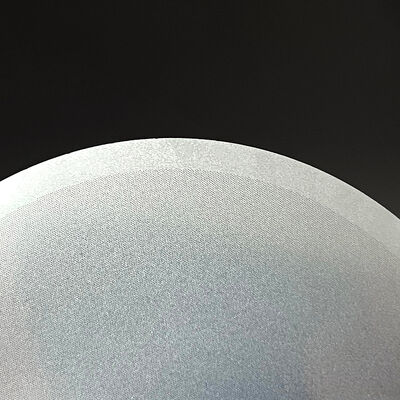

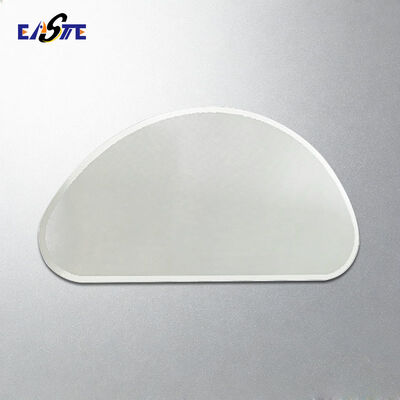

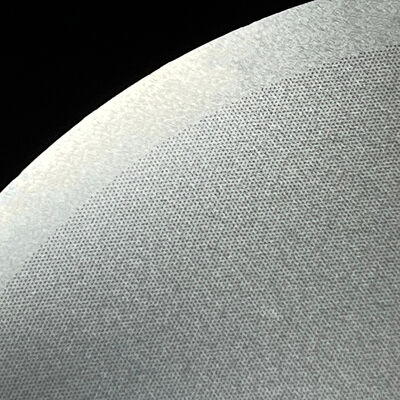

Metal Chemical Etching Custom 0.1mm to 1mm Stainless Steel 301 304 316 Precision Photo Etched Mesh

Metal Chemical Etching Custom 0.1mm to 1mm Stainless Steel 301 304 316 Precision Photo Etched Mesh

Brand Name: XHS/ Customized
Model Number: Custom
MOQ: 10
Price: 50-100USD
Payment Terms: T/T
Supply Ability: 10000-100000PCS / week
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
ISO 9001, ISO 14001
Materials:
Stainless Steel (304, 316), Nickel, Copper, Brass, Titanium
Thickness:
0.02mm - 1.5mm
Tolerance:
+/- 0.005mm
Production Process:
Photo Chemical Etching, Plating, Stamping, Laser Cutting
Surface Finish:
Natural Metal Or Electropolished
Other Processing:
Plating, Stamping, Laser Cutting
Packaging Details:
PE bags and Cartons / Customized
Supply Ability:
10000-100000PCS / week
Highlight:

Custom metal photo etched mesh

,

Precision stainless steel etched mesh

,

301 304 316 photo etch mesh

Product Description

Metal Chemical Etching Custom 0.1mm to 1mm Stainless Steel 301 304 316 Precision Photo Etched Mesh



We specialize in precision photo chemical etching for custom stainless steel meshes, delivering high-accuracy, burr-free metal components with complex and repeatable hole patterns. Our chemical etching process enables the production of ultra-fine and highly uniform meshes that cannot be achieved by traditional stamping, laser cutting, or weaving. Metal Chemical Etching Custom 0.1mm to 1mm Stainless Steel 301 304 316 Precision Photo Etched Mesh 0



Specifications of Photo Etched Mesh:


Material
Stainless steel 304,316 or according to your request
Mesh Type
Round hole, square hole, slot hole, hexagonal, or custom design
Thickness
0.02mm-1.5mm
Tolerance
+/-0.005mm
Smallest opening
0.08mm
Sample
Available
Filter rating
100%
Surface
Bright and smooth
Process
Chemical etching
MOQ
500pcs
Feature
No burrs, no broken point and clean
Application
Metal mesh, filter mesh for coffee maker, juice machines


What we can support:


Precision Etching Capability

Using advanced photochemical etching technology, we can manufacture stainless steel etched meshes with:

  • Thickness range from 0.1mm to 1.0mm

  • High dimensional accuracy and excellent pattern consistency

  • Burr-free, stress-free edges with no thermal distortion

  • Tight tolerances suitable for functional and filtration applications

Fine & Diverse Hole Patterns

Our etched metal meshes support a wide variety of hole designs, including:

  • Round, square, rectangular, hexagonal, slot and custom-shaped apertures

  • Micro holes and high open-area designs

  • Variable hole sizes and densities within the same part

  • Complex patterns optimized for airflow, filtration, shielding, or acoustic performance

This flexibility allows precise control over flow rate, strength, transparency, and functional performance.



Available Materials

We commonly etch the following stainless steel grades:

  • Stainless Steel 301

  • Stainless Steel 304 / 304L

  • Stainless Steel 316 / 316L

Other metals such as copper, nickel, aluminum, and special alloys are also available upon request.



Secondary & Auxiliary Processing

To provide complete solutions, we offer multiple post-etching processes, including:

  • Electropolishing and chemical passivation

  • Surface finishing (brushing, polishing, blackening)

  • Forming, bending, and welding

  • Lamination, adhesive backing, and frame assembly

  • Custom cutting, cleaning, and packaging



Typical Applications

Our precision etched stainless steel meshes are widely used in:

  • Filtration and separation systems

  • Automotive speaker grilles and sensor protection

  • Medical and laboratory equipment

  • Electronics shielding and ventilation

  • Industrial flow control and protection covers

  • Decorative and functional metal panels


How to Custom Filter Mesh from Us

  1. Send Your Requirements: Mesh size, shape, material, quantity

  2. Get a Free Design Consultation: Our engineers will assist with DFM (design for manufacturing)

  3. Rapid Prototyping: Fast sampling available for approval

  4. Mass Production & Delivery: ISO-certified, quality-guaranteed production

  5. After-Sales Support: Reliable technical and customer service


Contact us today to get your custom etched filter mesh quote!
