Chemical Metal Etching 0.1mm 0.2mm Stainless Steel Etched Mesh For Smoke Detector
Product Details
| Durability: | High | Complexity: | High |
|---|---|---|---|
| Tolerance: | ±0.005mm | Thickness: | 0.02mm-1.5mm |
| Lead Time: | 2-3 Weeks | Size: | Customized |
| Precision: | High | Cost: | Low |
| Highlight |
0.1mm stainless steel etched mesh,0.2mm chemical metal etching mesh,smoke detector photo etch mesh |
||
Product Description

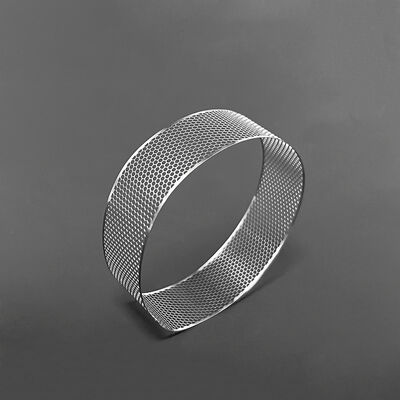

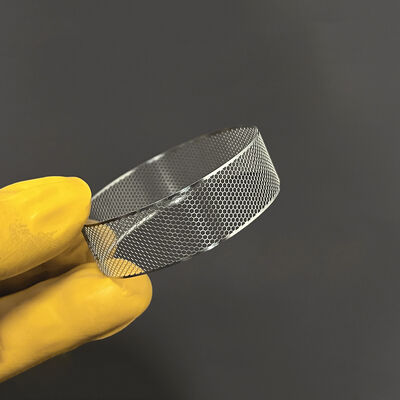

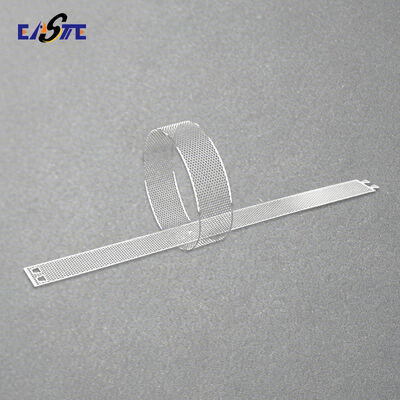

Chemical Metal Etching 0.1mm 0.2mm Stainless Steel Etched Mesh For Smoke Detector
|
Xinhaisen is a professional manufacturer specializing in precision chemical metal etching services. With over 13 years of experience, we provide ultra-thin stainless steel etched meshes widely used in smoke detectors, fire alarms, and security sensors.
Our advanced etching process ensures uniform aperture size, clean edges, and excellent repeatability, making it the ideal solution for high-safety electronic detection devices.
|
 |
Material Options for Chemical Metal Etching Stainless Steel Mesh
We support various materials and thicknesses used in smoke detector mesh screens:
-
Stainless Steel 304 / 316 / 301
-
Stainless Steel 430 / 420 / 409
-
Pure Nickel / Nickel Alloy (optional)
-
Copper / Brass / Phosphor Bronze (optional)
Specifications of Chemical Metal Etching Stainless Steel Mesh:
|
Thickness Range: |
0.03 mm – 0.5 mm |
|
Hole Size: |
As small as 25 microns |
|
Pattern Tolerance: |
±0.01 mm |
| Mesh Types: | Circular, rectangular, multi-layer, or custom shapes |
|
Surface Finish: |
Clean, burr-free, optional passivation |
|
|
|
Additional Processes Available
To meet diverse application needs, we provide the following post-treatments:
-
Surface polishing & deburring (mirror, matte, bright finish)
-
Electroplating (Ni, Sn, Au, Ag)
-
Passivation / Anti-rust coating
-
Forming & bending
-
Adhesive backing (3M tape)
-
Laser marking / Logo customization
Advantages of Chemical Etching for Detector Mesh
-
No burrs, no deformation, perfect for ultra-thin filters
-
High-precision uniform mesh holes
-
No tooling cost, fast prototype delivery
-
Ideal for intricate and micro-aperture designs
-
Material properties remain unchanged (no heat-affected zones)
-
Excellent repeatability from sample to mass production
Products We Can Etch
Our chemical etching process is ideal for:
-

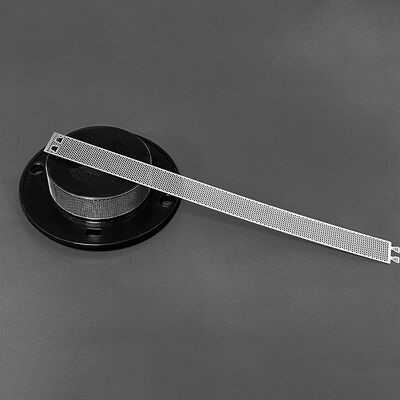

Smoke detector stainless steel insect screens
-
Sensor filters and mesh covers
-
EMI/RFI shielding mesh
-
Battery protection plates
-
Micro-flow restrictor plates
-
Micro-perforated speaker grilles
-
Fuel cell bipolar plates
-
Precision electronic shims & washers
Why Choose Xinhaisen
-
13+ years of professional chemical etching experience
-
Automotive-grade quality control
-
Fast prototype service with short turnaround time
-
Stable and reliable mass production capability
-
OEM/ODM customization support
-
Strict surface and dimensional inspection for every batch
How to Customize Your Etched Mesh
You can easily place a custom order by providing:
-
Drawing file (DWG / DXF / PDF / AI acceptable)
-
Material & thickness requirements
-
Mesh size & aperture specification
-
Quantity (prototype or mass production)
-
Any post-processing needs (surface finish, plating, adhesive, logo)
Send us your design, and our engineering team will evaluate and provide a quotation within 24 hours.
