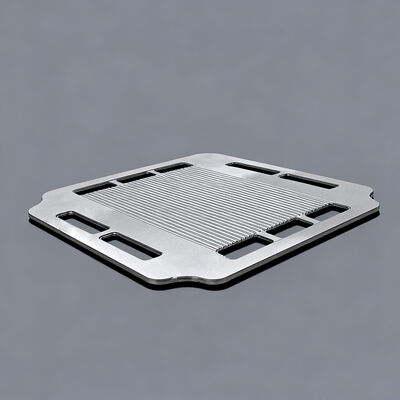

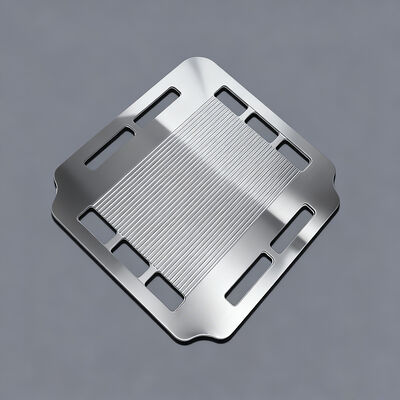

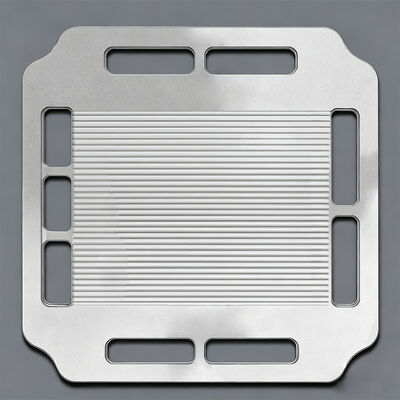

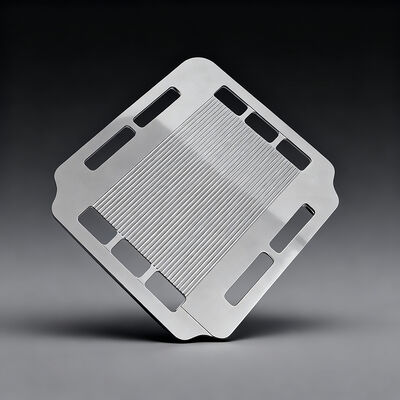

Titanium Etching Service For Custom 0.6mm Thickness Micro Flow Channel Metallic Bipolar Plate

Titanium Etching Service For Custom 0.6mm Micro Flow Channel Metallic Bipolar Plate

Titanium etching services are dedicated to manufacturing customised titanium metal bipolar plates featuring ultra-fine flow channels for high-end applications such as hydrogen fuel cells and electrolytic cells through precision chemical etching processes. This represents a technical solution pursuing high performance, lightweight construction and extended service life within demanding environments. Process: Employing advanced photochemical etching or precision electrolytic etching. This is a subtractive manufacturing process that selectively removes material through controlled chemical agents or electrochemical processes to form intricate patterns.

Advantages of Titanium Etching Metallic Bipolar Plate

—————————

1. Stress-free: Eliminates internal stresses and deformation caused by mechanical processes such as stamping, preserving the flatness of the sheet material.
2. Burr-free: The etching process naturally forms smooth flow channel walls, eliminating the need for secondary deburring and ensuring sealing integrity.
3. High precision: Capable of perfectly replicating design drawings, achieving exceptional dimensional consistency and repeatability.

Specifications of Customizable Titanium Bipolar Plate

—————————

Application of Titanium Etching Metallic Bipolar Plate

—————————

• Bipolar plates for proton exchange membrane fuel cells.
• Separators in electrolytic hydrogen production.
• Micro-reactors or heat exchangers.
• Prototype plates for laboratory R&D and small-batch production.

The production process of photochemical machining titanium bipolar plates

—————————

1. Material selection (stainless steel/titanium)

2. Surface cleaning

3. Photoresist coating to define flow channel patterns

4. Exposing and Developing

5. Chemical etching to dissolve exposed areas

6. Post-processing (resist removal, residue neutralization)

7. Quality inspection

Precise control of etching parameters (time, temperature, concentration) ensures uniform channel geometry for optimized gas distribution, conductivity, and corrosion resistance while maintaining structural integrity. This method supports scalable, cost-efficient mass production.

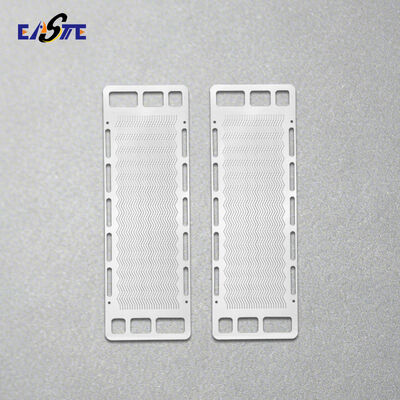

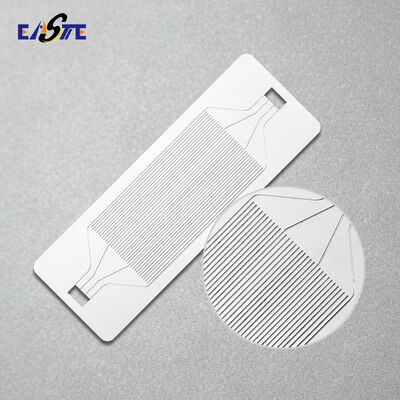

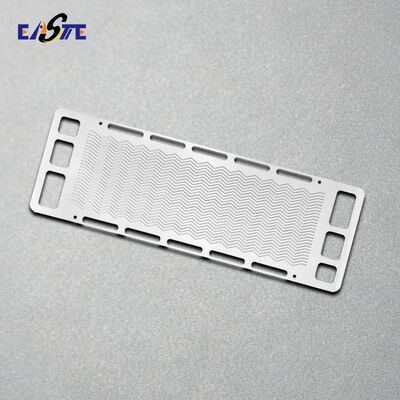

Different Shapes of Customizable Titanium Plates

—————————

How to custom Titanium Bipolar Plate from us?

—————————

1. Please send us your design. We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator.

2. Samples making lead time:3-10 days

3. Express:By DHL, FedEx, UPS, Air or Sea.

Titanium metal etching services provide engineers and researchers with an efficient, flexible and high-precision manufacturing solution, specifically designed to address the processing challenges of 0.6mm-thick microchannel titanium bipolar plates. This technology seamlessly combines the exceptional properties of titanium with the unique advantages of etching techniques, serving as a key enabling technology for developing next-generation high-performance energy conversion and storage devices.

Would like to have a further discussion? Please click "CONTACT US" to share us your requirements.
