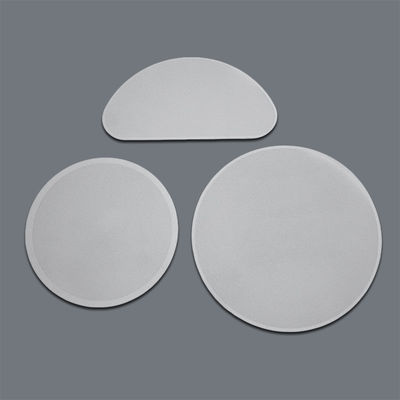

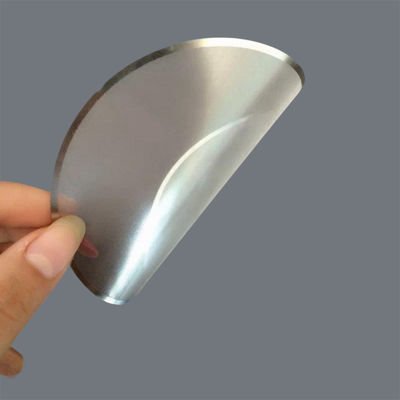

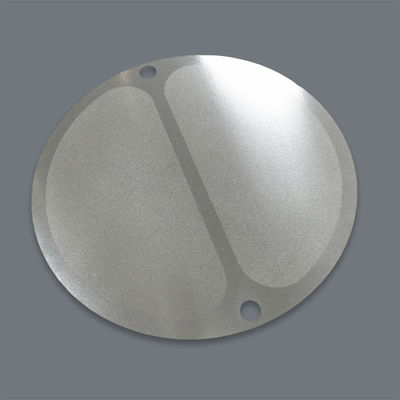

Photo Etching 0.03MM Thickness Ultra Fine Stainless Steel Filter Screen For Precison Filtration
Product Details
| Durability: | High | Complexity: | High |
|---|---|---|---|
| Tolerance: | ±0.005mm | Thickness: | 0.02mm-1.5mm |
| Lead Time: | 2-3 Weeks | Size: | Customized |
| Precision: | High | Cost: | Low |
| Highlight |
0.03mm stainless steel filter screen,ultra fine photo etch mesh,precision filtration stainless steel screen |
||
Product Description
Photo Etching 0.03MM Thickness Ultra Fine Stainless Steel Filter Screen For Precison Filtration
|
Our ultra-fine stainless steel filter screens are manufactured using advanced photo chemical etching technology, ensuring exceptional precision, uniformity, and consistency for demanding filtration applications.
Unlike traditional punching or laser cutting, photo etching (chemical etching) removes metal through a controlled chemical process — achieving burr-free, stress-free and distortion-free filter screens with micron-level precision.3 |
 |
Specifications of Photo Etching Filter Screen
| Mesh dimensions: | Customizable to your design |
| Thickness: | 0.02mm – 1.0mm |
| Aperture size: | Fully customizable per drawing |
| Surface finish: | Polished, coated, or bare metal |
Available Materials for Photo Etching Filter Screen
-
Stainless Steel: SUS 304 / SUS 316 / SUS 316L / SUS 301
-
Nickel & Nickel Alloy
-
Copper & Brass
-
Titanium Foil
-
Other Special Alloys available upon request
Key Features
-
Ultra-Thin Precision: 0.03mm stainless steel for high flow and fine filtration accuracy.
-
High Precision Tolerance: ±0.01mm dimensional accuracy, consistent aperture size and geometry.
-
Burr-Free & Stress-Free: Etching process produces smooth edges and no mechanical deformation.
-
Customizable Aperture & Pattern: Round, square, slotted, or complex patterns available per drawing.
-
Corrosion & Heat Resistant: Made from premium stainless steel (304, 316L, 301, etc.).
-
Excellent Flatness: Ensures stable assembly and reliable sealing in filtration systems.
Typical Applications
-
Precision fluid filtration (medical devices, fuel cells, inkjet printers)
-
Microfiltration for sensors and microelectronics
-
Acoustic and speaker meshes
-
Microfluidic flow control components
-
Aerospace and automotive fine filtration systems
Why Choose Photo Etching for Filter Screens
-
No Tooling Stress: Chemical etching eliminates burrs and micro-cracks.
-
Complex Geometries Possible: Design freedom for intricate patterns.
-
Fast Prototyping & Low Cost: Ideal for both small and large production runs.
-
High Reproducibility: Each piece identical, ensuring stable performance.
|
|
|
Customization & Ordering
We provide OEM precision etching services — simply send us your CAD drawing or sample and our engineering team will develop a custom filter screen tailored to your specific flow and particle size requirements.
