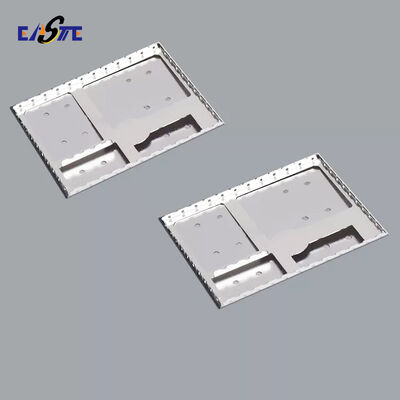

High Precision Etched EMI Shielding Cans with Micro-Vent Patterns & Solder Tabs
Product Details
| Operating Temperature: | -40°C To 150°C | Size: | Customizable |
|---|---|---|---|
| Material: | Stainless Steel, Copper, Alloys,etc. | Surface Finish: | Electroplating |
| Conductivity: | Highly Conductive | Tolerance: | +/- 0.01mm |
| Lead Time: | 2-4 Weeks | Shielding Effectiveness: | Up To 100dB |
| Highlight |
EMI shielding cans with micro-vents,Precision etched PCB shielding cans,Solder tab EMI shielding cans |
||
Product Description
High Precision Etched EMI Shielding Cans with Micro-Vent Patterns & Solder Tabs
EMI Shieding Overview
EMI shielding components are designed to protect electronic devices from electromagnetic interference, ensuring optimal performance and compliance with industry standards. Our precision-etched shields offer reliable suppression of interference across various applications.
Process
Manufactured using advanced chemical etching technology, our EMI shields are crafted from high-quality metal materials. The process allows for precise, burr-free patterns with consistent performance.
EMI Shieding Features
-
High Precision & Fine Pitch: Capable of producing ultra-fine features and patterns with line widths as small as 0.015mm.
-
Burr-Free & Stress-Free: The chemical etching process ensures no mechanical stress or burrs, protecting delicate components.
-
Material Versatility: We can process a wide range of conductive metals, including stainless steel, copper, beryllium copper, and nickel silver.
-
Customizable Designs: Easily create custom shapes, vents, and mounting features without the high cost of hard tooling.
-
Excellent Shielding Effectiveness: Provides reliable attenuation across a broad frequency range.
EMI Shieding Specification
| Parameter | Specification |
|---|---|
| Material | Stainless Steel, Copper, Beryllium Copper, Nickel Silver |
| Standard Thickness | 0.02mm - 1.5mm |
| Tolerance | ±0.01mm |
| Plating/Coating | Tin, Nickel, Silver (Optional) |
| Standard Flatness | < 0.5% of material thickness |
| Size | Customizable |
EMI Shieding Applications
Our EMI shields are widely used in:
-
Communications: 5G equipment, base stations, routers
-
Consumer Electronics: Smartphones, tablets, wearables
-
Medical Devices: Patient monitors, diagnostic equipment
-
Automotive Electronics: Control units, infotainment systems
-
Aerospace & Defense: Avionics, navigation systems
Why Choose Xinhaisen?
-
Speed & Agility: We are known for rapid response and fast turnaround times, ideal for both urgent prototypes and high-volume orders.
-
Precision Expertise: Our core competency in etching allows us to manufacture shields with unparalleled accuracy and consistency.
-
High-Volume Capacity: We can seamlessly scale to meet your mass production needs without compromising on quality.
-
Proven Quality: We maintain strict quality control from material procurement to final inspection, ensuring every part meets your specifications.
Welcome to contact us at any time!
