Aluminium Photo Chemical Etching 0.1mm–1.0mm Precision Lightweight Bipolar Plates for Aerospace
Product Details
| Materials: | Aluminum Or Aluminum Alloy | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
aluminium chemical etching aerospace plates,precision lightweight bipolar plates,0.1mm–1.0mm aluminium etching aerospace |
||
Product Description

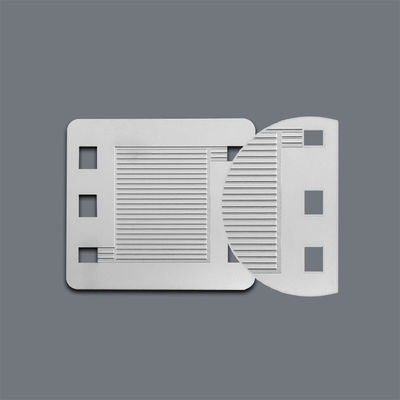

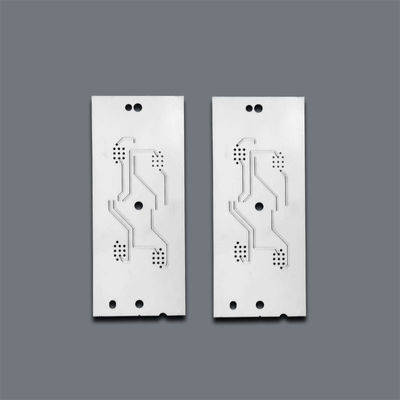

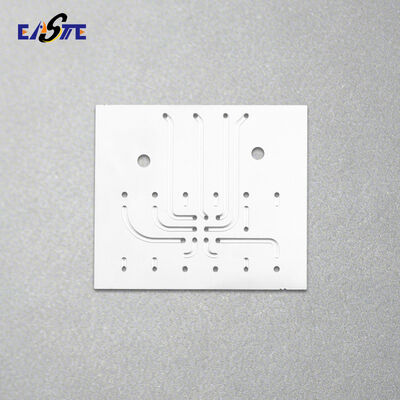

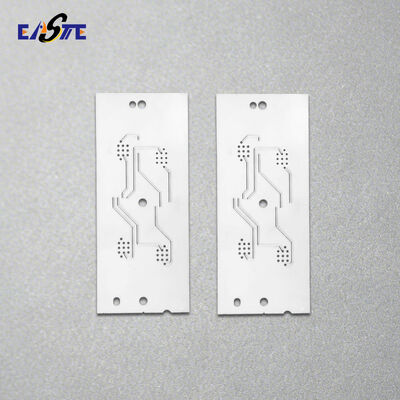

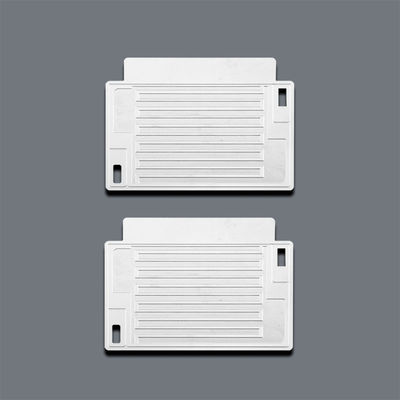

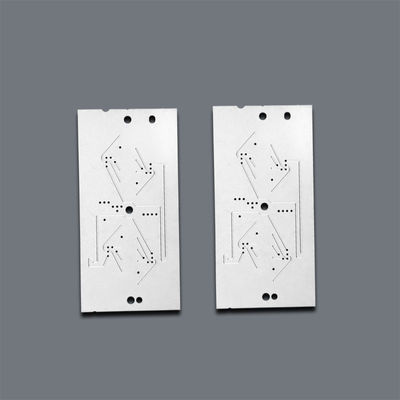

Aluminium Photo Chemical Etching 0.1mm–1.0mm Precision Lightweight Bipolar Plates for Aerospace
Xinhaisen specializes in precision aluminium photo chemical etching, providing high-quality metal etching services for lightweight and high-performance components. Our etched aluminium bipolar plates are just one example of our expertise — widely used in aerospace fuel cells, heat exchangers, and electronic cooling systems, where fine flow channels, corrosion resistance, and ultra-thin structures are required.
 |
|
|
Aluminum Etched Bipolar Plate Specifications
| Material Options: | Aluminium 1050, 1060, 3003, 5052, 6061, 7075, and other customized alloys. |
| Thickness Range: | 0.1mm – 1.0mm (other thicknesses available upon request) |
| Maximum Sheet Size: | Up to 600mm × 1800mm |
| Tolerances: | ±0.02mm for critical features |
| Surface Finish: | Clean, burr-free, oxide-free; optional anodizing or passivation available |
Additional Processing Capabilities
Besides aluminium etching, we offer chemical etching for:
-
Stainless Steel: SUS301, SUS304, SUS316L
-
Copper & Copper Alloys: C1100, C2680, C5191
-
Titanium & Nickel: For high-corrosion and heat-resistant applications
-
Other Processes: Half-etching, folding lines, surface texturing, electroplating, and adhesive lamination
Our Etching Capabilities
-
Etching Accuracy: ±0.02mm
-
Minimum Line Width/Spacing: 0.05mm
-
Max Sheet Size: 600mm × 800mm (reel-to-reel continuous etching also available)
-
Design Support: Rapid prototyping based on customer CAD drawings
-
Production Volume: From small-batch samples to mass production
Etchable Product Range
-
Bipolar plates for fuel cells and heat exchangers
-
Micro heat dissipation fins and cold plates
-
Electronic shielding covers (EMI/RFI shields)
-
Precision meshes and filters
-
Lead frames, connectors, and battery current collectors
Etchable Product Range
-
Bipolar plates for fuel cells and heat exchangers
-
Micro heat dissipation fins and cold plates
-
Electronic shielding covers (EMI/RFI shields)
-
Precision meshes and filters
-
Lead frames, connectors, and battery current collectors
Why Choose Xinhaisen
-
13+ years of experience in precision metal photo etching
-
ISO-certified facility with strict quality control standards
-
Fast turnaround: Prototype delivery in as little as 3 days
-
Comprehensive one-stop service: From design support to final surface treatment
-
Global supply capability: Trusted by aerospace, electronics, and energy industries worldwide
|
|
|
|
|
|
How to customize the metal parts from us?
- Please send us your design.
We accept the following file formats: DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator - Samples making lead time: 5-7 days.
- Express:By Air/ Sea/ Express: DHL,Fedex, EMS, etc.
