Semi-Etched Plates for Complex Manifolding in Printed Circuit Heat Exchangers

Name: Semi-Etched Plates for Complex Manifolding in Printed Circuit Heat Exchangers
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 90.00 USD
Availability: InStock

Brand Name:	XHS/ Customized
Model Number:	Custom
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001

Materials:

Stainless Steel, Titanium Or Customized

Thickness:

0.5-3.0mm

Tolerance:

+/- 0.005mm

Production Process:

Photo Chemical Etching, Plating, Stamping, Laser Cutting

Packaging Details:

PE bags and Cartons / Customized

Supply Ability:

10000-100000PCS / week

Highlight:

semi-etched plates for PCHE

complex manifolding heat exchanger plates

printed circuit heat exchanger plates

Product Description

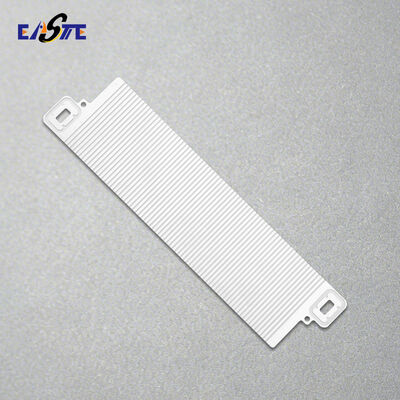

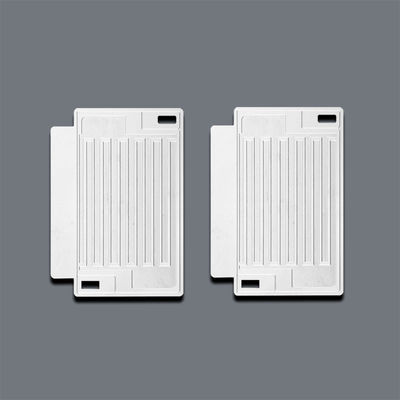

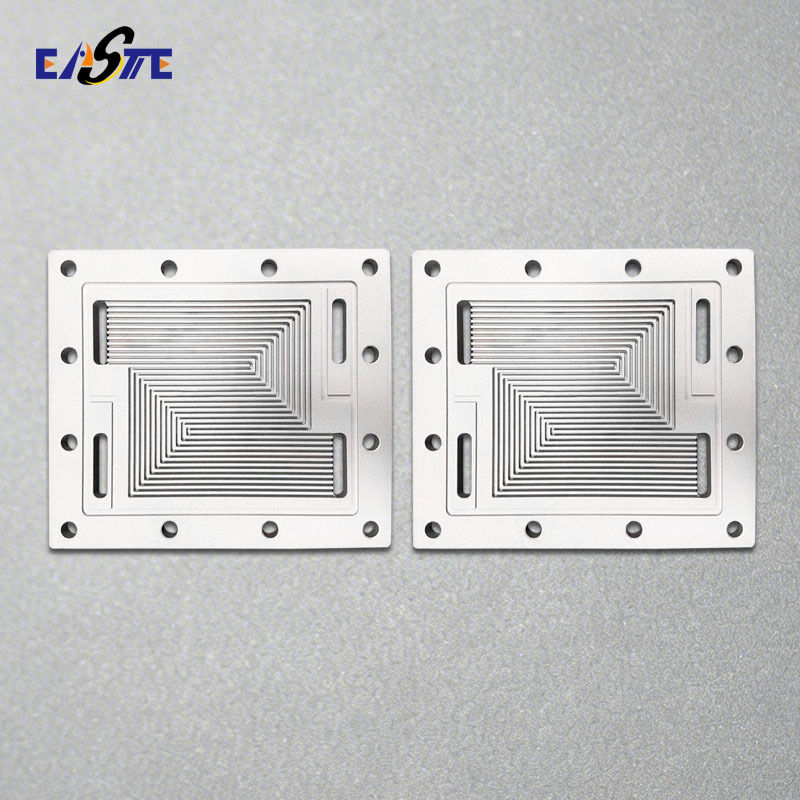

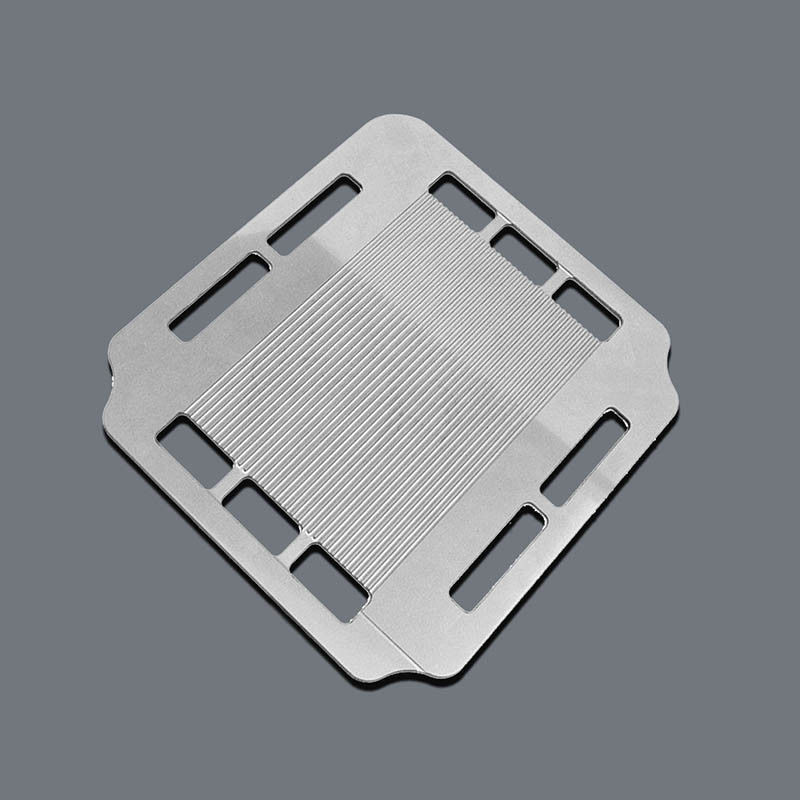

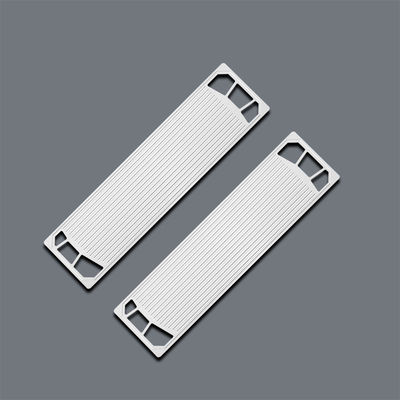

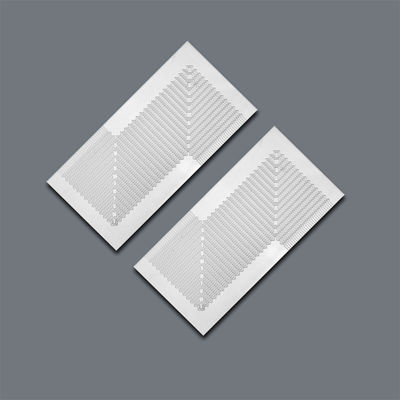

Semi-Etched Plates for Complex Manifolding in Printed Circuit Heat Exchangers

Description of Semi-Etched Plates for Printed Circuit Heat Exchangers

What is Printed Circiut Heat Exchangers?

Printed Circuit Board Heat Exchanger (PCHE), also known as Diffusion Bonded Compact Heat Exchanger, represents a new generation of heat exchange equipment combining ultra-compact design with high efficiency. This device utilizes chemical etching technology to precisely fabricate micrometer-to-millimeter-scale flow channels within metal plates. These plates are then integrated into a monolithic module through diffusion bonding, delivering both exceptional resistance to high temperatures and pressures alongside highly efficient heat transfer characteristics.

Specifications of Semi-Etched Plates for Printed Circuit Heat Exchangers

Material	Stainless Steel 316L, Titanium Aluminum, etc.
Thickness	0.05mm to 3.0mm can be customized
Size	Can be customized, Max to 700*1800mm,
General Tolerance	±0.1mm, according to the thickness of the plate
Processing	Photochemical machining/ metal etching/ Photo etching
Other Processing	Diffusion bonding or other processing as requested

Manufacturing of Semi-Etched Plates for Printed Circuit Heat Exchangers

1.Chemical etching micro channels of compact heat exchanger plates

2. Diffusion bonded compact heat exchangers plates

We excel in providing comprehensive PCHE solutions, leveraging precision chemical etching and advanced diffusion bonding to deliver heat exchangers of exceptional reliability, efficiency, and consistent performance—even under the most demanding conditions.

Packing and Shipping of Semi-Etched Plates for Printed Circuit Heat Exchangers

Packing Methods:

We offer multiple packaging options to ensure maximum protection, including protective covers, PE bags, and foam inserts. Customized packaging solutions are also available upon request.

Shipment Methods:

By Air / Sea/ Express: EMS/DHL/FedEx/UPS etc,

How to custom Compact Heat Exchanger Plates from us?

Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator
Samples making lead time:3-10days
Express:By DHL, FedEx, TNT, around 3-7days.
