High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts

Name: High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 90.00 USD
Availability: InStock

Brand Name:	XHS/ Customized
Model Number:	Custom
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001

Materials:

Stainless Steel, Titanium Or Customized

Thickness:

0.02mm -3mm

Shape:

As Client's Request

Tolerance:

+/- 0.005mm

Production Process:

Photo Chemical Etching, Plating, Stamping, Laser Cutting

Packaging Details:

PE bags and Cartons / Customized

Supply Ability:

10000-100000PCS / week

Highlight:

high-precision copper chemical etching

ultra-thin metal parts etching

complex copper parts chemical etching

Product Description

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts

What is Copper Etching?

Copper etching (also known as chemical etching) is a process that uses chemical etching to precisely remove metal from the copper surface. It enables extremely high-precision dimensional control, with tolerances as low as ±0.01mm. It is particularly suitable for processing ultra-thin metal sheets, with thicknesses as low as 0.02mm. This high-precision processing technology has made copper etching widely used in the manufacture of electronics, micro-machinery, and high-precision components, while maintaining product flatness and fine edge detail.

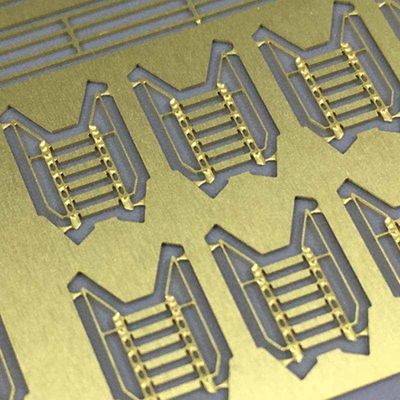

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts 0

Copper Etching Product Parameters

Parameter Description
Material Type:	Copper (pure copper, copper alloy)
Minimum Thickness:	0.02mm
Maximum Thickness:	2.0mm
Dimensional Tolerance:	±0.01mm
Minimum Aperture:	0.1mm
Maximum Sheet Size:	1800mm x 600mm
Etching Method:	Half Etching / Full Etching / Double-Sided Etching
Surface Treatment:	Nickel Plating, Sandblasting, Polishing, Protective Film
Production Options:	Single Sheet / Continuous Coil Production
Applicable Industries:	Electronics, Communications, Automotive, Medical Devices

Applications and Products

Copper etching is widely used in the production of high-precision components such as microelectronic components, precision conductive parts, sensors, heat sinks, speaker grilles, and micro springs. It also has important applications in automotive electronics, medical devices, aerospace, and communications equipment, providing customers with high-precision, lightweight, and complex metal components.

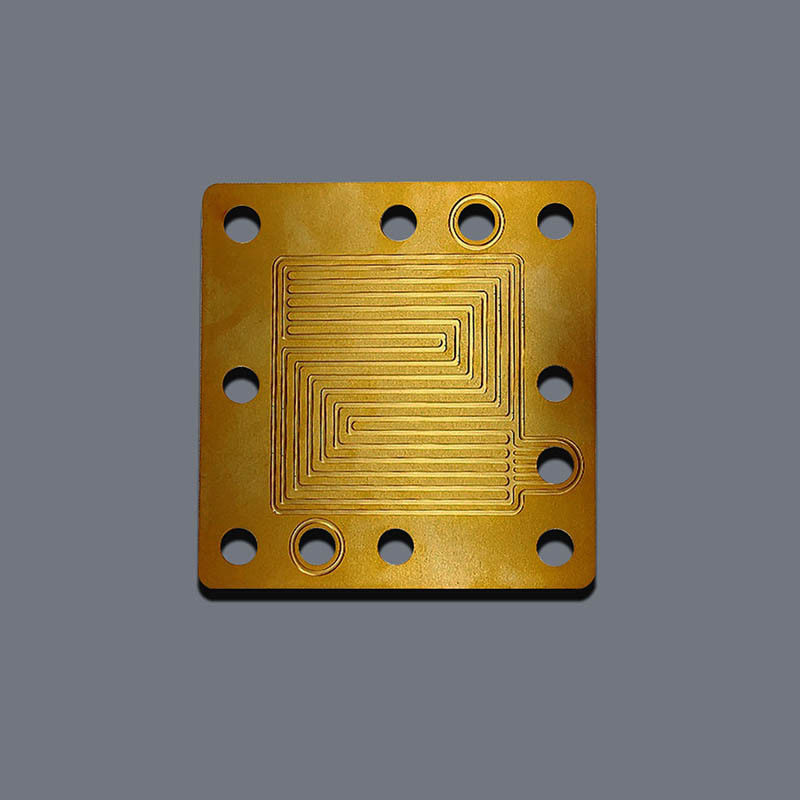

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts 1

Etching Methods and Production Capacity

Copper etching can be performed in half, full, or double-sided etching modes to meet diverse process requirements. The company also offers continuous etching of metal coils, ensuring stable and efficient mass production and providing reliable support for large-scale orders.

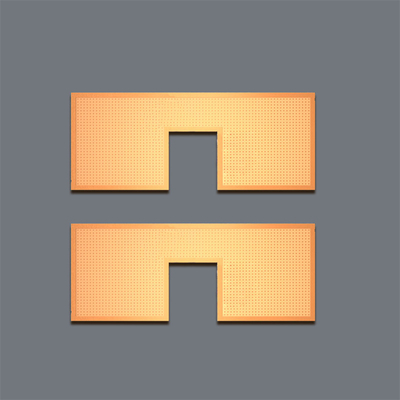

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts 2

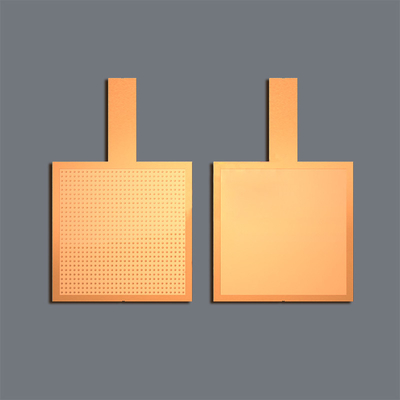

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts 3

High-Precision Copper Chemical Etching for Ultra-Thin & Complex Metal Parts 4

Flexible Production and One-Stop Service

We support both mass production and small-batch customization, offering rapid response and a one-stop precision metal solution. From material sourcing and process design to finished product inspection, we ensure that every copper etching product meets our customers' stringent requirements, achieving a perfect combination of high quality and efficiency.

FAQ:

1.What is the price of vapor chamber customization?

-- The price will be depended on material, thickness, size and other requirements, please feel free to send us your detail requirements, we’ll offer you the price asap.

2. How do we custom the titanium vapor chamber?

-- Please send us your drawing in DXF, DWG, STEP, PDF and other formats, we’ll do the evaluation and offer you the price.

3. How can we guarantee quality?

-- We always a pre-production sample before mass production, and always 100% final Inspection before shipment.

4. Why should you buy from us not from other suppliers?

-- Xinhaisen is established to specialized in the production of high-quality, finite and micro-size photo chemical etching metal products.Our seventy professional

staff specialized in research and development , manufacturing and marketing service.

5. What services can we provide?

-- Accepted Delivery Terms: FOB, CFR, CIF, EXW；

Accepted Payment Currency:USD, EUR, JPY, CAD, AUD, HKD, CNY;

Accepted Payment Type: T/T, Paypal, Western Union, Cash.

Do you want to custom the vapor chamber?

Click "contact us" below to send us the drawing of Titanium vapor chamber, we support DXF, DWG, STP etc. formats.

Or send email directly at bella.xiang@xinhsen.com / WhatsApp: +86 18025476918
