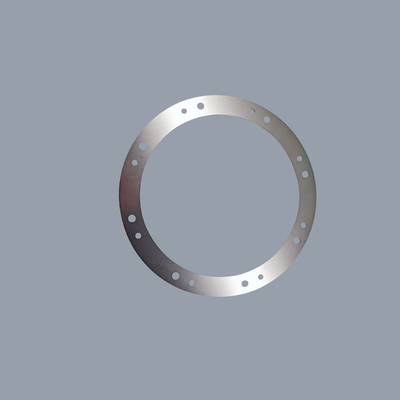

Custom 0.01-0.3MM metal shims via photochemical etching machining

Name: Custom 0.01-0.3MM metal shims via photochemical etching machining
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 190.00 USD
Availability: InStock

Brand Name:	XHS / Custom
Model Number:	Custom
MOQ:	10
Price:	USD80-300
Payment Terms:	T/T
Supply Ability:	1000000

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Material:

Titanium, Titanium Alloy

Size:

Custom

Color:

Silver, Black, Gold, Etc

Manufacturing Technology:

Photo Chemical Etching And Stamping

Packaging Details:

PE Bag and Carton

Supply Ability:

1000000

Highlight:

custom metal shims photochemical etching

precision titanium shims 0.01-0.3mm

thin metal shims with warranty

Product Description

Xinhaisen manufactures custom metal shims via photochemical etching process. The thickness can range from 0.01mm to 0.3mm. The material can be stainless steel, copper, nickle, titanium, kovar alloy ect.

What are metal shims?

Metal shims are used to fill the tiny gaps between two connecting surfaces. They reduce the wear and tear of the connecting parts caused by vibration, friction, or pressure changes. At the same time, they play a balancing role. Metal shims are suitable for high - temperature and high - pressure environments.

Industries We Serve

Metal shims can be used in various industries. Inprecision hardware processing, the dimensional accuracy of the shims, the flatness of the products, and the stability of the materials are of great importance, especially for the equipment in the automotive, aerospace and medical industries.

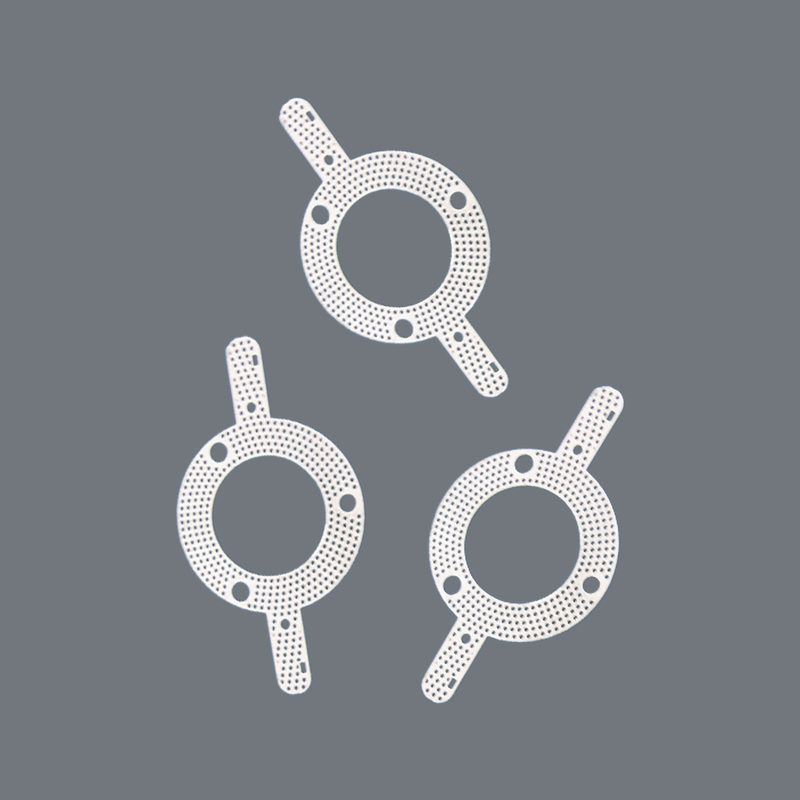

Custom 0.01-0.3MM metal shims via photochemical etching machining 0

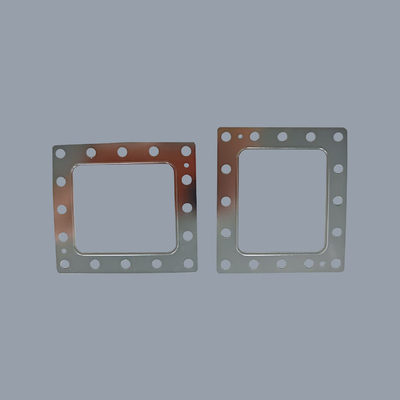

Custom 0.01-0.3MM metal shims via photochemical etching machining 1

Why fabricate shims via photochemical etching process?

✅ Burr-free
✅ Stress-free
✅ High-precision

The tolerances can be ±0.001MM

✅ Cost-effictive

No tooling cost.

Custom shims processing flowcart:

The material ,thickness and size we can produce as following

Material	Thickness	Size
STEEL AND STAINLESS STEELS	0.01mm – 1.5mm	700mm x 2400mm
NICKEL AND NICKEL ALLOYS	0.01mm – 1.5mm	700mm x 2400mm
COPPER AND COPPER ALLOYS	0.01mm – 1.5mm	600mm x 1500mm
ALUMINIUM	0.01mm – 1.5mm	600mm x 1500mm
TITANIUM AND TITANIUM ALLOYS	0.01mm – 1mm	700mm x 2400mm

How to customize the metal shims from us.

1.Please send us your design.

We accept the following file formats:

DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator

2.Samples making lead time:3-10days

3.Express:By DHL,Fedex,TNT,around 3-7days

Why Choose Xinhaisen?
✅ 13 Years Specialized in photochemical etching industry.

✅ ISO 9001 Certified for Quality
✅ IATF 16949 Certified for Automotive Quality
✅ ISO 14001 Eco-Friendly Production
✅ DFM Support & Engineering Consultation
✅ 98% On-Time Delivery Rate
✅ Prototype to Mass Production
