High Precision Chemical Etching Flow Plates For Printed Circuit Heat Exchangers
Product Details
| Materials: | Stainless Steel, Titanium Or Customized | Thickness: | 0.5-3.0mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
high precision chemical etching flow plates,PCHE heat exchanger flow plates,printed circuit heat exchanger components |
||
Product Description

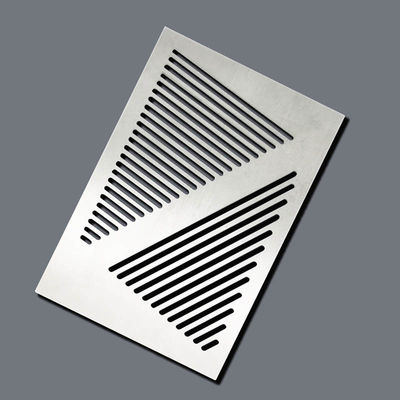

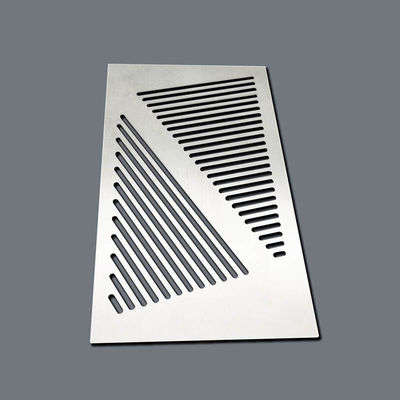

High Precision Chemical Etching Custom Printed Circuit Heat Exchanger Plates

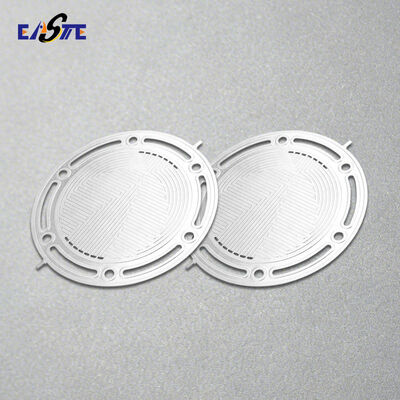

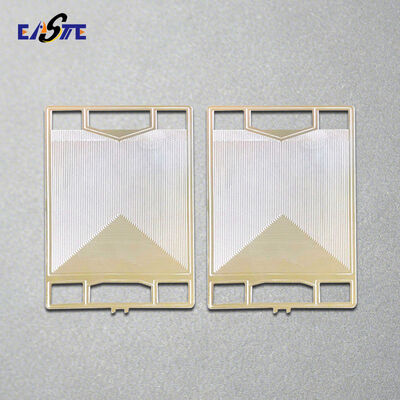

Xinhaisen adopts photochemical etching process to manufacture flow plates for printed circuit heat exchangers (PCHEs), with high accuracy micro channels and complex patterns.
Description of Flow Plates for Printed Circuit Heat Exchangers
What is Printed Circiut Heat Exchangers?
| Printed Circuit Heat Exchanger (PCHE), also referred to as Diffusion Bonded Compact Heat Exchanger (DCHE), is a next-generation heat exchanger that combines ultra-compact design with high efficiency. The flow channels, ranging from micro-scale to millimeter-scale, are accurately etched into metal plates by chemical etching technology. These plates are then diffusion bonded together, creating a solid block structure capable of withstanding extreme temperature and pressure conditions while ensuring excellent heat transfer performance. |  |
Specifications of Flow Plates for Printed Circuit Heat Exchangers
| Material | Stainless Steel 316L, Aluminum, etc. |
| Thickness | 0.5mm to 5.0mm can be customized |
| Size | Can be customized, Max to 600*1800mm, |
| General Tolerance | ±0.1mm, according to the thickness of the plate |
| Processing | Photochemical machining/ metal etching/ Photo etching |
| Other Processing | Diffusion bonding or other processing as requested |
Manufacturing of Flow Plates for Printed Circuit Heat Exchangers

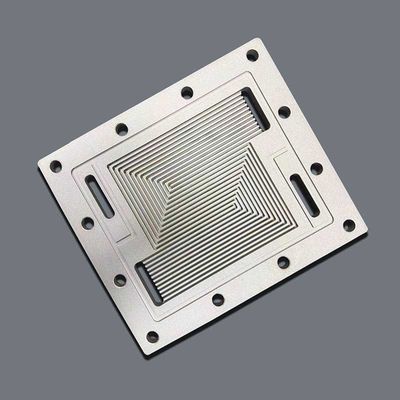

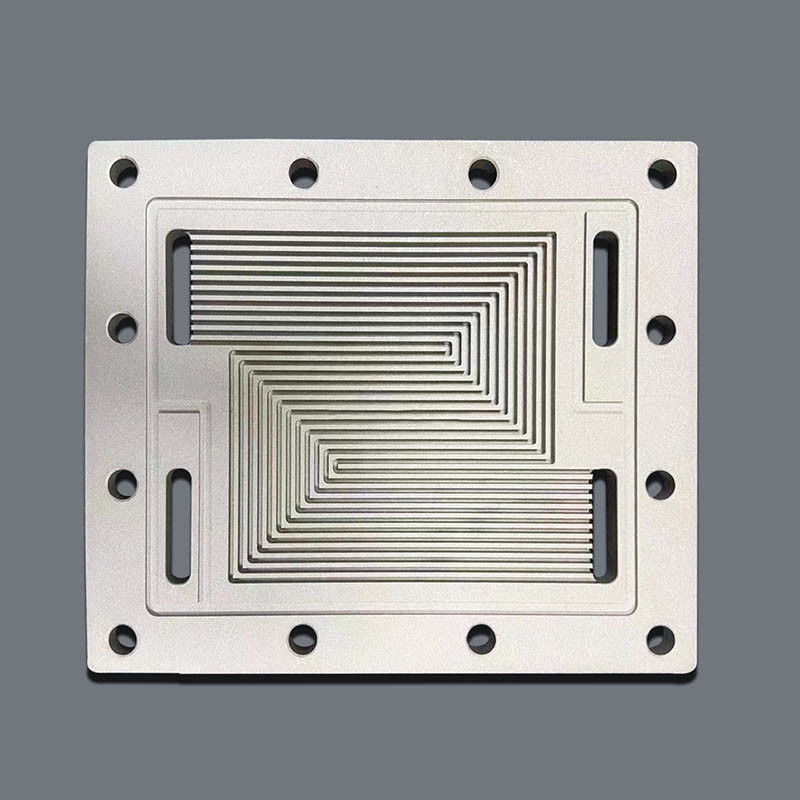

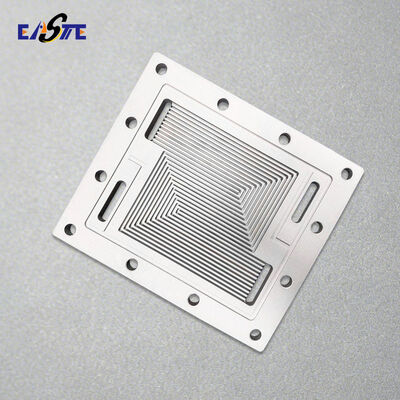

1.Chemical etching micro channels of compact heat exchanger plates
2. Diffusion bonded compact heat exchangers plates
|
We specialize in delivering end-to-end solutions for printed circuit heat exchangers (PCHEs). By integrating precision chemical etching with advanced diffusion bonding, we ensure that every heat exchanger offers high reliability, outstanding efficiency, and consistent performance to meet demanding application needs. |
Packing and Shipping of Printed Circuit Heat Exchangers
Packing Methods:
| We offer multiple packaging options to ensure maximum protection, including protective covers, PE bags, and foam inserts. Customized packaging solutions are also available upon request. |
Shipment Methods:
By Air / Sea/ Express: EMS/DHL/FedEx/UPS
