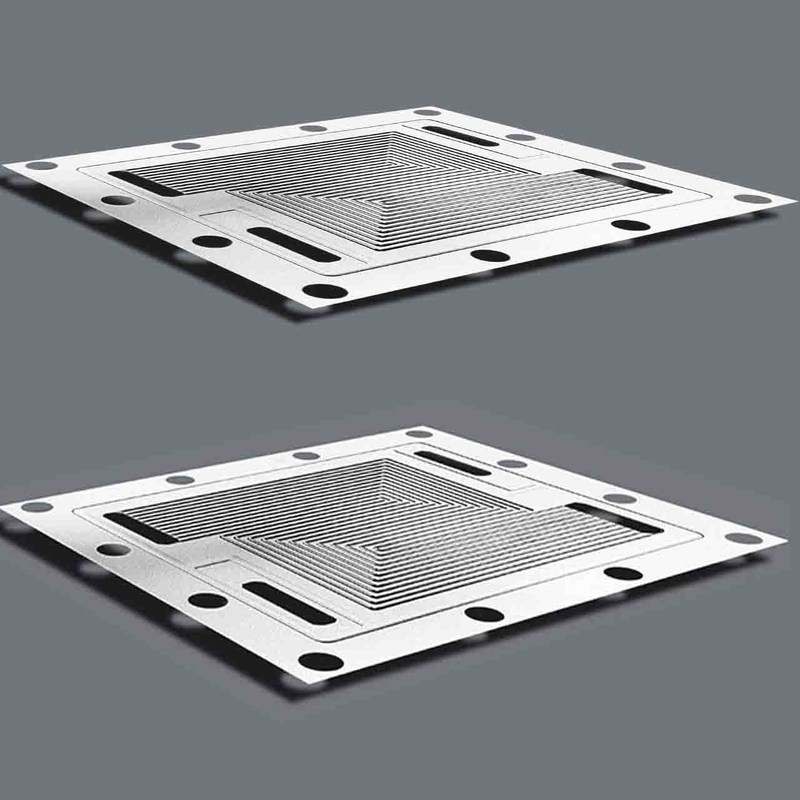

Photochemical Etched Printed Circuit Heat Exchanger Plates Customized

Name: Photochemical Etched Printed Circuit Heat Exchanger Plates Customized
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Application:

Cooling And Heating

Thickness:

0.5-5.0mm

Size:

Customizable

Efficiency:

High

Processing Technology:

Photo Chemical Etching

Material:

Stainless Steel

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

custom photochemical etched PCHE plates

printed circuit heat exchanger plates

etched heat exchanger plates with warranty

Product Description

Photochemical Etched Printed Circuit Heat Exchanger Plates Customized

PCHE Overview
Xinhaisen provides high-performance printed circuit heat exchanger cores and plates for extreme thermal management applications. Our precision etching technology enables complex microchannel designs with superior heat transfer efficiency and reliability in demanding environments.

PCHE Features

Burr-Free & Stress-Free: No mechanical stress or burrs, ensuring perfect sealing and performance.
High Precision & Complexity: Capable of ultra-fine flow field channels and micro-features.
Material Versatility: Etch various corrosion-resistant metals (e.g., stainless steel, titanium, aluminum alloys).
Rapid Prototyping & Mass Production: Fast tooling turnaround (days, not weeks) seamlessly scales to high-volume orders.
Excellent Surface Uniformity: Consistent channel depth and width across the entire plate.

PCHE Specification

Parameter	Specification
Plate Thickness	0.5mm – 5mm
Operating Pressure	Up to 1000 bar
Material	SS316,Titanium, etc.
Core Size (Custom)	Up to 650mm × 1800mm
Plate Size	Customized, suitable for stack assembly requirements

PCHE Applications

Energy: Supercritical CO₂ cycles, nuclear reactors, hydrogen systems.
Aerospace: Fuel/oil cooling, ECS, avionics thermal management.
Industrial: Gas processing, chemical reactors, waste heat recovery.
Electronics: High-power server cooling, EV battery thermal systems.

Our Advantages

Unmatched Speed: From design to delivery, we are faster for both prototypes and bulk orders.
High Precision & Quality: Expertise in etching extreme tolerances for critical components.
Volume Flexibility: Reliably handle temporary, urgent, and super-large quantity orders.
Broad Experience: Proven track record in high-tech sectors like communications, medical, and automotive industries.
One-Stop Solution: From material sourcing to final precision etching, ensuring quality control at every step.

Get Started
Send us your drawings for:
Free quote within 2 hours
Design advice
Sample arrangement

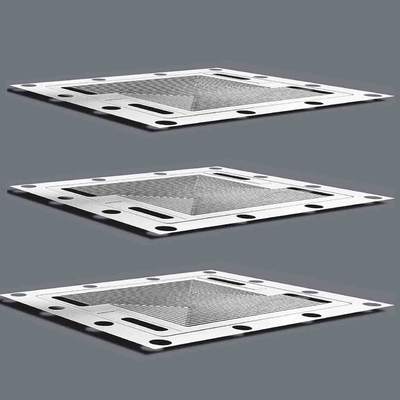

Photochemical Etched Printed Circuit Heat Exchanger Plates Customized 1

Easy to order! Just contact us with your requirements.

Ratings & Review

Overall Rating

4.3

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

33%

4 stars

67%

3 stars

2 stars

1 stars

All Reviews

E*a

Mexico Nov 28.2025

Helpful (8)

The mesh made by this company is really precise and quite good. We will customize from this company again next time. It would be even better if the delivery time could be shorter.

P*r

Austria Nov 25.2025

Helpful (12)

The products made by this company are quite good. They helped me adjust the data in the early stage. The service is also very good.

M*k

United States Aug 19.2024

Helpful (6)

Professional manufacturer. Everything matched our specs, and the product looks great—super clean, no burrs, no stress marks.
