Chemical Etching Customize Different Thickness Compact Heat Exchanger Plates

Name: Chemical Etching Customize Different Thickness Compact Heat Exchanger Plates
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Custom
Price: 90.00 USD
Availability: InStock

Brand Name:	XHS/ Customized
Model Number:	Custom
MOQ:	10
Price:	80-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001

Materials:

Stainless Steel, Titanium Or Customized

Thickness:

0.5-3.0mm

Tolerance:

+/- 0.005mm

Production Process:

Photo Chemical Etching, Plating, Stamping, Laser Cutting

Packaging Details:

PE bags and Cartons / Customized

Supply Ability:

10000-100000PCS / week

Highlight:

custom chemical etching heat exchanger plates

compact heat exchanger plates with warranty

different thickness pche heat exchanger plates

Product Description

Chemical Etching Customize Different Thickness Compact Heat Exchanger Plates

Description of Compact Heat Exchanger Plates:

What is Printed Circiut Heat Exchangers?

A Printed Circuit Heat Exchanger (PCHE), also known as a Diffusion Bonded Compact Heat Exchanger (DCHE), is highly compact and designed for efficient heat transfer under extreme temperature and pressure. Using chemical etching, micro- to millimeter-scale channels are precisely formed in the plates.

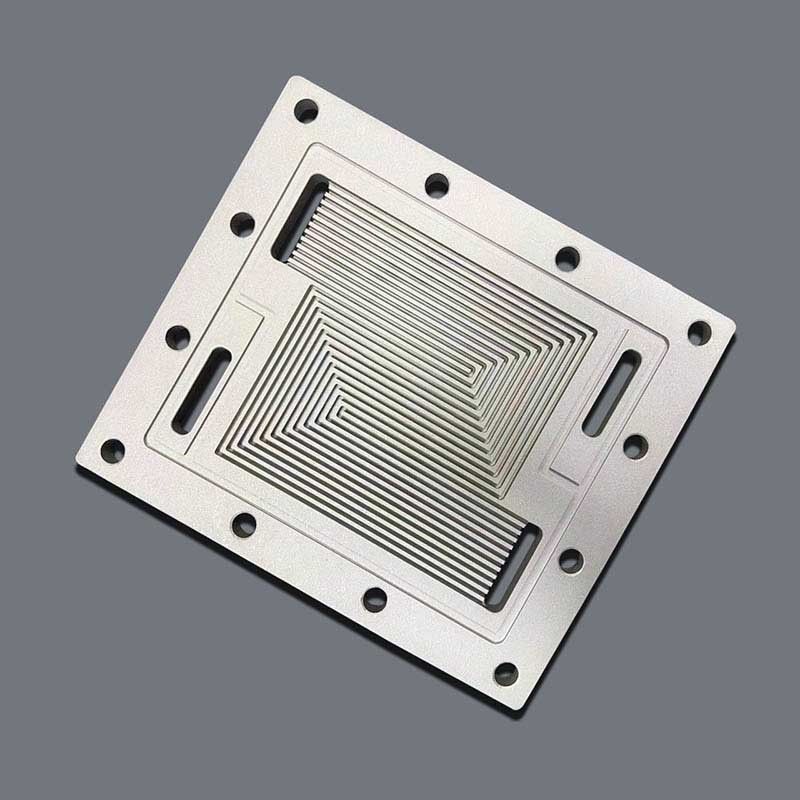

Chemical Etching Customize Different Thickness Compact Heat Exchanger Plates 0

Specifications of Compact Heat Exchanger Plates:

Material	Stainless Steel 316/316L, Aluminum, etc.
Thickness	0.5mm to 5.0mm can be customized
Size	Max to 1800*600mm, can be customized
General Tolerance	±0.1mm
Processing	Photochemical machining/ metal etching/ Photo etching
Other Processing	Plating, Welding or other processing as requested

Production Process Steps of Compact Heat Exchanger Plates:

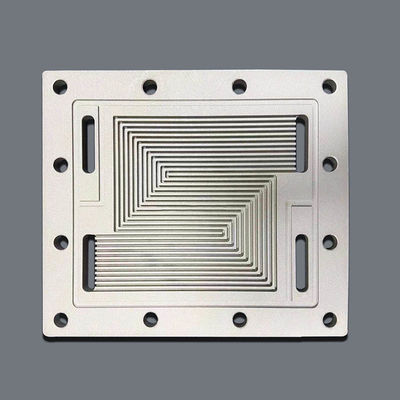

1.Chemical etching micro channels of compact heat exchanger plates

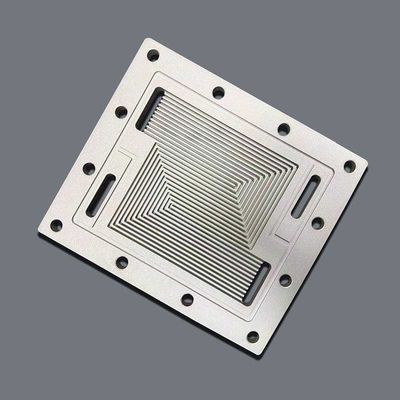

Chemical Etching Customize Different Thickness Compact Heat Exchanger Plates 2

2. Diffusion bonded compact heat exchangers plates

We provide complete solutions for chemical etching and diffusion-bonded printed circuit heat exchangers. Our expertise allows us to combine both processes seamlessly, ensuring reliable performance and superior efficiency for our customers.

How to custom Compact Heat Exchanger Plates from us?

1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator

2. Samples making lead time:3-10days

3. Express:By DHL, FedEx, TNT, around 3-7days.
