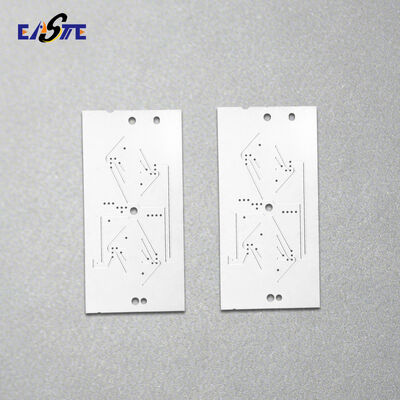

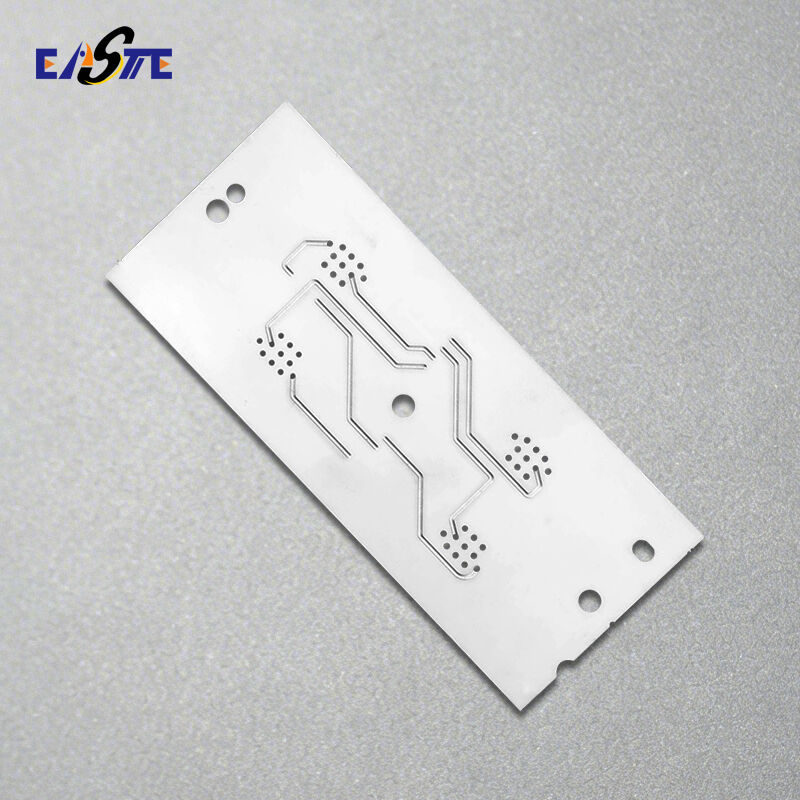

Chemical Etching Custom Precision 0.5mm to 2mm Stainless Steel Heat Exchanger Plates
Product Details
| Materials: | Stainless Steel, Titanium Or Customized | Thickness: | 0.5-3.0mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
custom chemical etching heat exchanger plates,compact heat exchanger plates with warranty,different thickness pche heat exchanger plates |
||
Product Description
Chemical Etching Custom Precision 0.5mm to 2mm Stainless Steel Heat Exchanger Plates
Description of Etching Stainless Steel Heat Exchanger Plates:
What is Printed Circiut Heat Exchangers?
A Printed Circuit Heat Exchanger (PCHE), also known as a Diffusion Bonded Compact Heat Exchanger (DCHE), is highly compact and designed for efficient heat transfer under extreme temperature and pressure. Using chemical etching, micro- to millimeter-scale channels are precisely formed in the plates.
 |
|
Specifications of Etching Stainless Steel Heat Exchanger Plates:
| Material | Stainless Steel 316/316L, Aluminum, etc. |
| Thickness | 0.5mm to 5.0mm can be customized |
| Size | Max to 1800*600mm, can be customized |
| General Tolerance | ±0.1mm |
| Processing | Photochemical machining/ metal etching/ Photo etching |
| Other Processing | Plating, Welding or other processing as requested |
Production Process Steps of Etching Stainless Steel Heat Exchanger Plates:
1.Chemical etching micro channels of compact heat exchanger plates
2. Diffusion bonded etching stainless steel heat exchangers plates
We provide complete solutions for chemical etching and diffusion-bonded printed circuit heat exchangers. Our expertise allows us to combine both processes seamlessly, ensuring reliable performance and superior efficiency for our customers.
How to custom Etching Stainless Steel Heat Exchanger Plates from us?
1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator
2. Samples making lead time:3-10days
3. Express:By DHL, FedEx, TNT, around 3-7days.
