Metal Chemical Etching 1.5mm 2.5mm Micro Channel Plates For PCHE Heat Exchanger

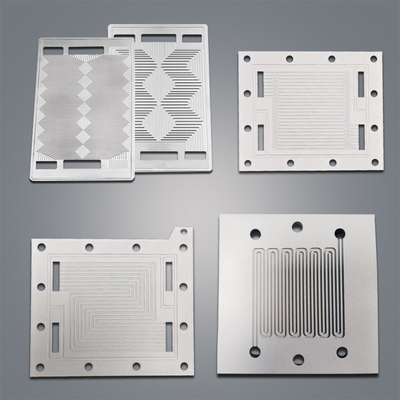

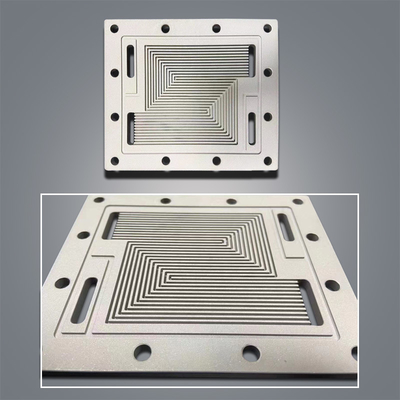

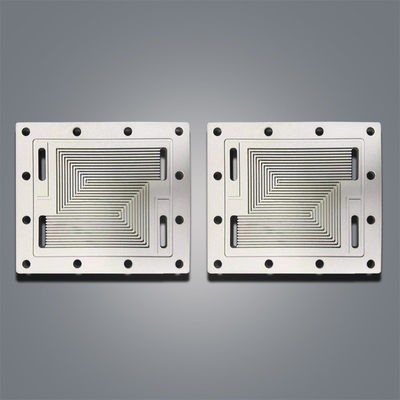

Description of Plates for PCHE Heat Exchanger:

What is Printed Circiut Heat Exchangers?

Printed Circuit Heat Exchanger (PCHE), also referred to as Diffusion Bonded Compact Heat Exchanger (DCHE), is a new generation of heat exchangers. It offers extremely high compactness and is capable of efficient heat transfer under demanding conditions such as high temperature and high pressure. By applying chemical etching technology, micro- to millimeter-scale channels can be precisely etched into the heat exchange plates.

Specifications of Plates for PCHE Heat Exchanger:

Manufacturing of Plates for PCHE Heat Exchanger:

PCHE heat exchanger consists of multiple etched plates, similar to the manufacturing process of electronic printed circuit boards.

1. First, microchannels are etched according to design drawings using etching technology. With over 13 years of experience in the chemical etching industry, we possess mature etching techniques and a rigorous quality control team, ensuring all etched plates are burr-free and stress-free.

      2. Once all required plates are etched, diffusion bonding technology is used to stack them together, ultimately forming a complete PCHE.

We offer end-to-end solutions for chemical etching and diffusion-bonded printed circuit heat exchangers. With our specialized expertise, we integrate both processes seamlessly to deliver high-quality and efficient results for our customers.

How to custom Plates for PCHE Heat Exchanger from us?

1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator.

2. Samples making lead time:3-10days

3. Express:By DHL, FedEx, TNT, around 3-7days.
