Metal Chemical Etching 0.6mm 1.0mm Flow Plates For PCHE Heat Exchanger
Product Details
| Materials: | Stainless Steel, Titanium Or Customized | Thickness: | 0.5-3.0mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
metal chemical etching micro channel plates,1.5mm PCHE heat exchanger plates,2.5mm micro channel heat exchanger |
||
Product Description

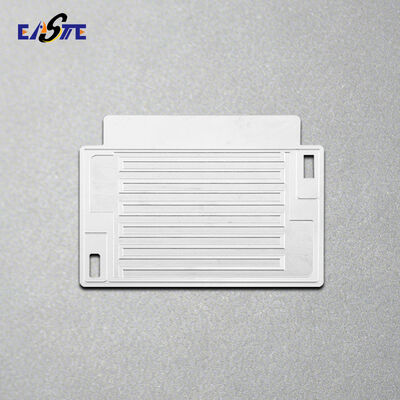

Metal Chemical Etching 0.6mm 1.0mm Flow Plates For PCHE Heat Exchanger
Description of Plates for PCHE Heat Exchanger:
What is Printed Circiut Heat Exchangers?

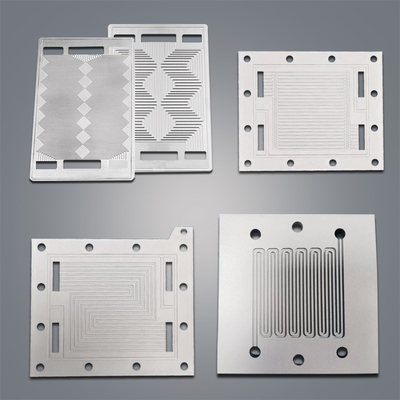

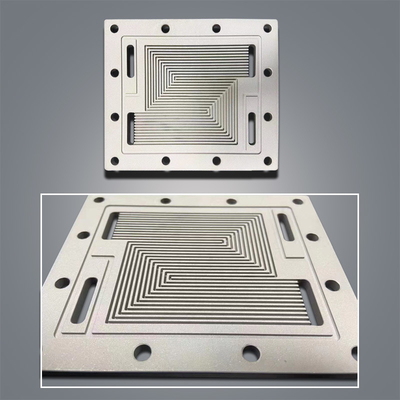

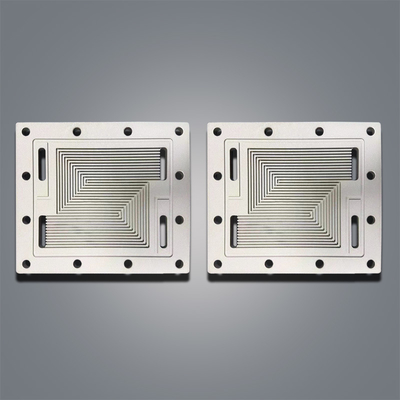

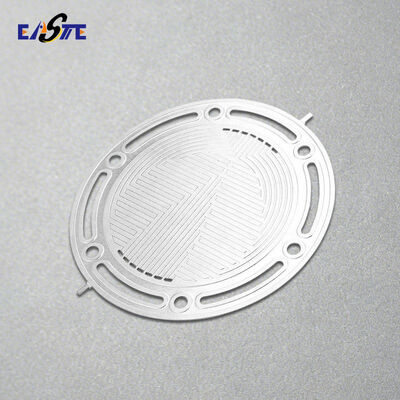

Printed Circuit Heat Exchanger (PCHE), also referred to as Diffusion Bonded Compact Heat Exchanger (DCHE), is a new generation of heat exchangers. It offers extremely high compactness and is capable of efficient heat transfer under demanding conditions such as high temperature and high pressure. By applying chemical etching technology, micro- to millimeter-scale channels can be precisely etched into the heat exchange plates.
Specifications of Plates for PCHE Heat Exchanger:
| Material | Stainless Steel 316/316L, Titanium, Aluminum, etc. |
| Thickness | 0.5mm to 5.0mm can be customized |
| Size | Max to 1800*600mm, can be customized |
| General Tolerance | ±0.1mm |
| Processing | Photochemical machining/ metal etching/ Photo etching |
| Other Processing | Diffusion Bonding Service |
Manufacturing of Plates for PCHE Heat Exchanger:
PCHE heat exchanger consists of multiple etched plates, similar to the manufacturing process of electronic printed circuit boards.
-
First, microchannels are etched according to design drawings using etching technology. With over 13 years of experience in the chemical etching industry, we possess mature etching techniques and a rigorous quality control team, ensuring all etched plates are burr-free and stress-free.
2. Once all required plates are etched, diffusion bonding technology is used to stack them together, ultimately forming a complete PCHE.
We offer end-to-end solutions for chemical etching and diffusion-bonded printed circuit heat exchangers. With our specialized expertise, we integrate both processes seamlessly to deliver high-quality and efficient results for our customers.
How to custom Plates for PCHE Heat Exchanger from us?
1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, STP, Gerber, IGES, CorelDraw and Adobe Illustrator.
2. Samples making lead time:3-10days
3. Express:By DHL, FedEx, TNT, around 3-7days.
