Precision Etched Vapor Chambers for Advanced Thermal Management Solutions
Product Details
| Material: | Copper,Alloys Or Customized | Corrosion Resistance: | Excellent |
|---|---|---|---|
| Weight: | Lightweight | Tolerance: | +/- 0.01mm |
| Operating Temperature: | -50°C To 150°C | Quality Control: | 100% Inspection |
Product Description
Precision Etched Vapor Chambers for Advanced Thermal Management Solutions

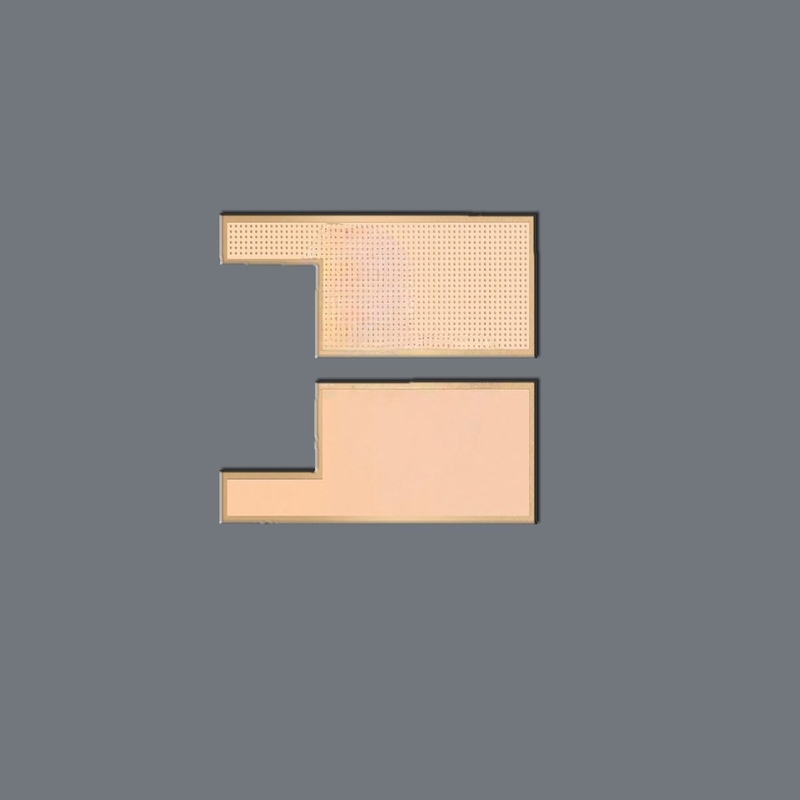

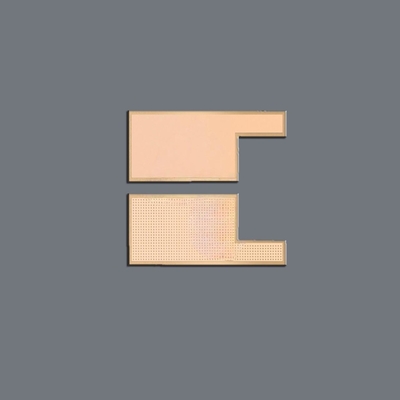

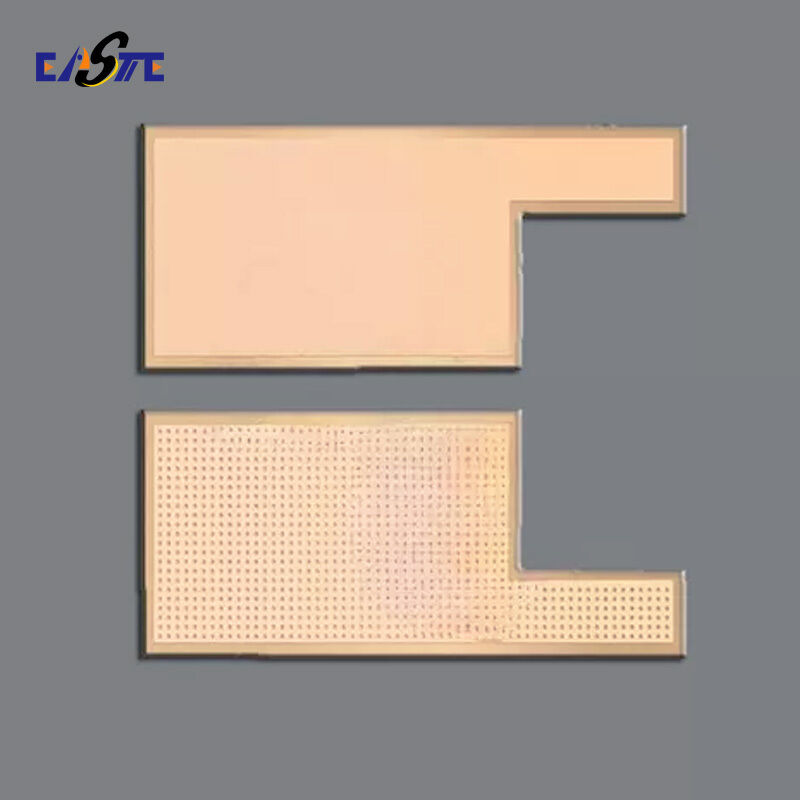

Vapor Chamber Overview
Vapor Chambers are advanced two-phase heat transfer devices designed for efficient thermal management in high-power and space-constrained applications. They provide superior heat dissipation through phase-change principles, making them essential in modern electronics thermal design.
Manufacturing Process
-
Material Selection: High-conductivity metals such as copper or aluminum.
-
Cleaning & Preparation: Degreasing and surface treatment for optimal etching.
-
Photoresist Coating: Application of a photosensitive layer.
-
Exposure & Development: UV light transfers the micro-channel pattern onto the metal.
-
Etching: Chemical etching forms precise capillary structures and cavities.
-
Assembly & Sealing: Two etched plates are bonded to form sealed chambers, followed by vacuum filling with working fluid.
-
Quality Testing: Leak testing, flatness inspection, and thermal performance verification.
Vapor Chamber Features
-
High Thermal Conductivity: Efficient heat spreading and dissipation.
-
Ultra-Thin Design: Thickness as low as 0.02mm for compact applications.
-
Custom Patterns: Flexible designs for optimized heat transfer.
-
Lightweight & Durable: Corrosion-resistant and long-term use performance.
-
Uniform Heat Distribution: Eliminates local hotspots.
-
Burr-Free & Smooth Structures: Ensures consistent fluid flow and reliability.
Vapor Chamber Specification
| Parameter | Specification |
| Material | Copper, Alloys,etc. |
| Operating Temperature | -40°C to 200°C |
| Tolerance | +/-0.01mm |
| Surface Roughness | Ra ≤ 0.3μm (can be improved to Ra ≤ 0.1μm with polishing) |
| Surface Flatness | ≤0.05mm/m² |
Vapor Chamber Applications
-
Consumer Electronics: Smartphones, tablets, laptops, gaming devices.
-
Telecommunications: 5G base stations, routers, optical modules.
-
Automotive Electronics: LED headlights, battery cooling, power control units.
-
Medical Devices: Portable diagnostic equipment, imaging systems.
-
Industrial & Aerospace: Power converters, high-density electronic modules.
Our Advantages
-
Fast Turnaround: Rapid prototyping and volume production for urgent/large orders.
-
High Precision Etching: Capable of micro-channels (0.05mm width) and tight tolerances (±0.01mm).
-
Material Versatility: Expertise in copper, aluminum, and alloys (0.02mm–1.5mm thickness range).
-
End-to-End Service: From design support to final sealing and testing.
-
Quality Reputation: Recognized for precision, consistency, and reliability.
Easy to order! Just contact us with your requirements.
