Ultra-thin Etching Vapor Chambers with Customizable Heat Transfer Capacity
Product Details
| Material: | Copper Or Alloys,etc. | Tolerance: | +/- 0.01mm |
|---|---|---|---|
| Surface Finish: | Smooth | Shape: | As Client's Request |
| Operating Temperature: | -50°C To 200°C | Quality Control: | 100% Inspection |
| Highlight |
Ultra thin Vapor Chambers,Custom Vapor Chambers,High Precision Ultra Thin Vapor Chambers |
||
Product Description

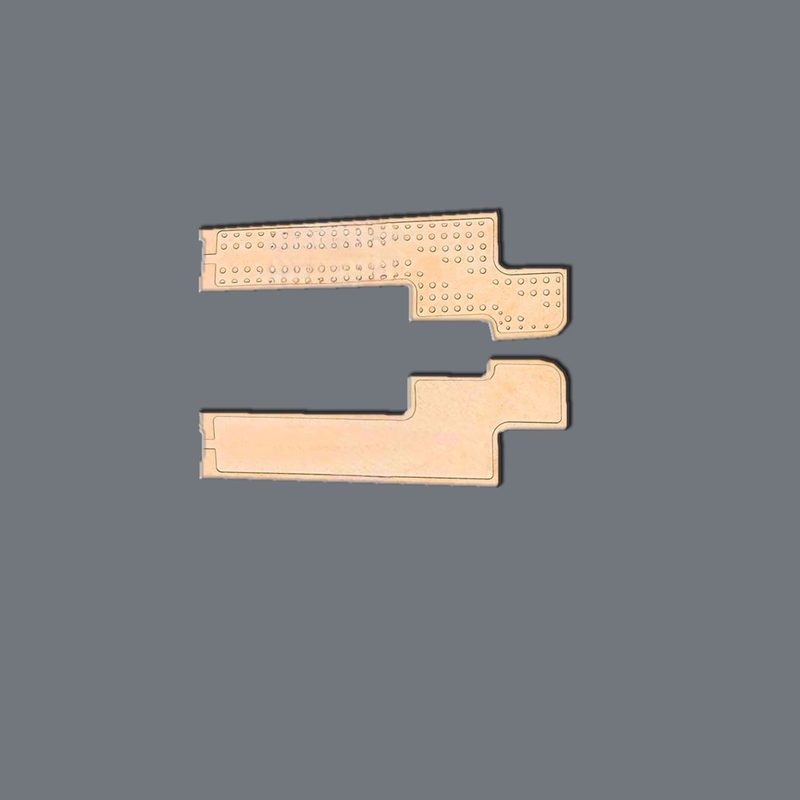

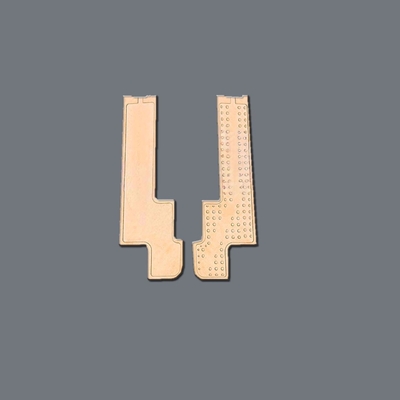

Ultra-thin Etching Vapor Chambers with Customizable Heat Transfer Capacity
Vapor Chamber Overview
Xinhaisen Technology specializes in the manufacturing of high-precision vapor chambers (also known as VC heat spreaders or flat heat pipes) through advanced etching technology. Our vapor chambers are designed for superior thermal management in high-performance electronic devices, ensuring efficient heat dissipation and temperature uniformity.
Vapor Chamber Key Features
-
Ultra-Thin Design: Thickness as low as 0.3mm, ideal for slim devices.
-
High Thermal Conductivity: Efficient heat transfer across the entire surface.
-
Customizable Shapes & Sizes: Tailored to fit specific device layouts.
-
Lightweight & Durable: Robust construction ensures long-term reliability.
-
Excellent Flatness: Ensures optimal contact with heat sources for maximum efficiency.
Vapor Chamber Specification
| Parameter | Specification |
| Material | Copper, Alloys, etc. |
| Application Temperature | -50°C to 200°C |
| Tolerance | ±0.01mm |
| Max. Dimension | Customizable |
| Thermal Conductivity | 500 - 5,000 W/m·K (depending on design) |
Vapor Chamber Applications
-
Consumer Electronics: Smartphones, tablets, laptops, wearables.
-
Telecommunications: 5G base stations, routers, RF modules.
-
Automotive: LED headlights, infotainment systems, battery cooling.
-
Medical Devices: Portable diagnostic equipment, imaging systems.
-
Industrial & Aerospace: Power modules, avionics cooling systems.
Our Advantages
-
Precision Etching Expertise: Capable of producing micro-features down to 0.03mm holes and 0.015mm line widths.
-
Rapid Prototyping & Production: Quick turnaround for both small batches and large-volume orders.
-
Wide Material Compatibility: Experience with various metals, including copper, stainless steel, and aluminum.
-
High Consistency & Quality: Uniformity tolerance within ±0.01mm, ensuring reliable performance.
-
Customization Flexibility: Ability to adapt designs for unique thermal and mechanical requirements.
FAQ
Q: What materials can be used for vapor chambers?
A: We commonly use copper for high thermal conductivity or stainless steel for corrosion resistance. Other alloys can be customized upon request.
Q: What is the minimum thickness you can achieve?
A: We can produce vapor chambers as thin as 0.3mm, with precise control over flatness and integrity.
Q: Can you handle large-volume orders?
A: Yes, we are equipped to manage both prototype development and high-volume production with fast lead times.
Q: How do you ensure quality?
A: Each vapor chamber undergoes strict thermal, leakage, and dimensional inspections to meet industry standards.
Q: Do you provide custom design support?
A: Absolutely. Our engineering team can collaborate with you to optimize the design for your specific application.
Welcome to contact us at any time!
