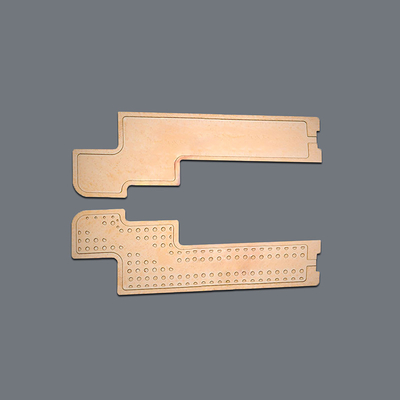

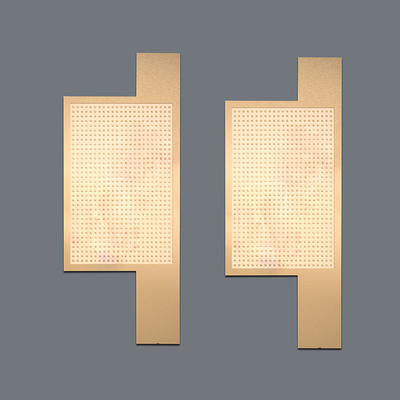

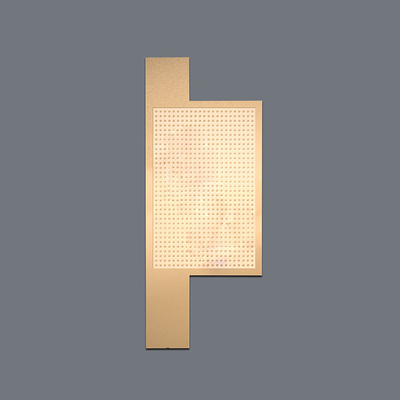

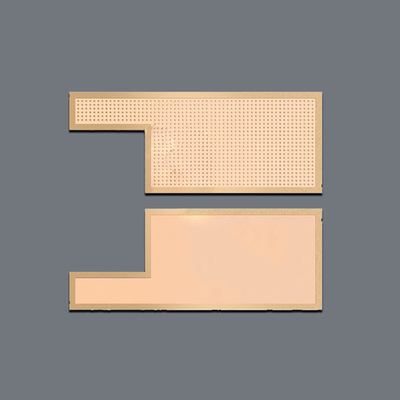

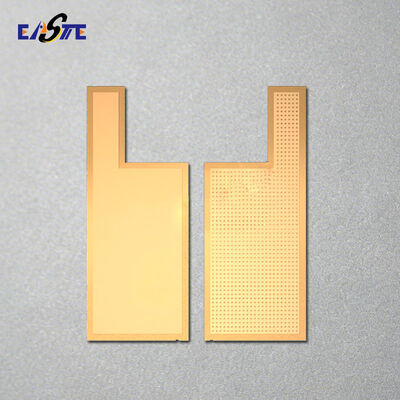

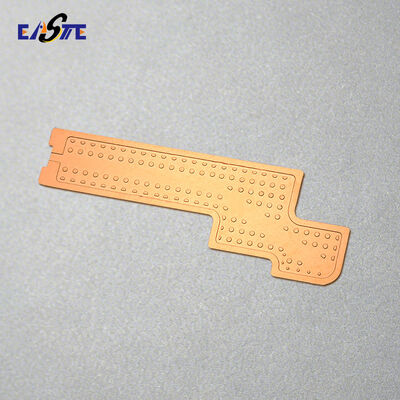

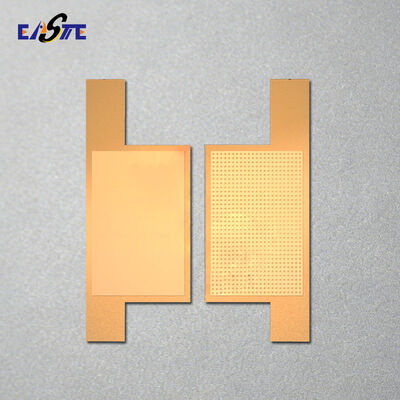

Copper Etching Ultra Thin Vapor Chamber For High-performance CPUs GPUs

Basic Information of Ultra Thin Vapor Chamber:

A vapor chamber is a flat heat pipe that spreads heat evenly in two dimensions, making it ideal for high-power CPUs, GPUs, and LEDs. Its wick structure circulates coolant through evaporation and condensation, enabling fast, uniform heat transfer to keep components cool and extend lifespan.

Specifications of Etched Ultra Thin Vapor Chamber:

Features of Ultra Thin Vapor Chamber:

A vapor chamber is a vacuum-sealed enclosure, commonly made of copper due to its excellent thermal conductivity. Inside, a wick structure supports fluid circulation, while a small volume of working fluid—often water—evaporates more easily under reduced pressure. This mechanism enables fast and efficient heat spreading.

• Exceptional Heat Dissipation: Etched vapor chambers efficiently distribute heat across broad surfaces, maintaining minimal temperature variations for optimized thermal management.
• Slim and Lightweight Profile: Their ultra-thin, light construction allows seamless integration into compact electronic devices without increasing size or weight.
• Trusted Reliability: Engineered with advanced thermal technology and robust durability, these vapor chambers provide outstanding cooling performance and sustained reliability for contemporary electronics.

Application of Custom Vapor Chamber:

• Smartphones, tablets, ultra-thin laptops

• High-performance IC, 5G communication modules

• Mini LED / Micro LED backlight cooling

• Compact aerospace and medical devices

As a professional chemical etching manufacturer based in China, we specialize in producing precision metal parts. Our expertise includes the fabrication of ultra-thin vapor chambers, which stand as one of our core products. We offer custom etching services for various types of vapor chambers—all manufactured to client specifications—with complete absence of burrs and mechanical stress.

What's Chemical Etching?

Chemical etching-also known as photo etching or photochemicalmachining (PCM)-is a precise and cost-effective metal machiningprocess used to create intricate and complex parts without usingmechanical force or heat.

How's Chemical Etching Works?

We not only excel in chemical etching technology, but also maintain stringent quality control standards. All materials are sourced in strict compliance with client specifications. After etching process, we conduct comprehensive inspections using professional equipment—including 2.5D measuring systems, electron microscopes, and digital magnifiers—to perform 100% quality verification. This ensures that every product meets precise requirements and conforms to all designated specifications.

   ¦  ¦

Package and Shipment of Custom Vapor Chamber:

We offer multiple packaging options to ensure maximum protection, including protective covers, PE bags, and foam inserts. Customized packaging solutions are also available upon request.

Shipment Methods:

• EMS: 10-15 business days

• DHL: 3-5 business days

• FedEx: 4-6 business days

• UPS / TNT: 6-8 business days

• Air Freight: 5-7 business days

• Sea Freight: 15-30 business days

FAQ:

1.What is the price of vapor chamber customization?

 -- The price will be depended on material, thickness, size and other requirements, please feel free to send us your detail requirements, we’ll offer you the price             asap.

2. How do we custom the ultra thin vapor chamber?

 -- Please send us your drawing in DXF, DWG, STEP, PDF and other formats, we’ll do the evaluation and offer you the price.

3. How can we guarantee quality?

 -- We always a pre-production sample before mass production, and always 100% final Inspection before shipment.

4. Why should you buy from us not from other suppliers?

 -- Xinhaisen is established to specialized in the production of high-quality, finite and micro-size photo chemical etching metal products.Our seventy professional             staff specialized in research and development , manufacturing and marketing service.

5. What services can we provide?

 -- Accepted Delivery Terms: FOB, CFR, CIF, EXW；

   Accepted Payment Currency:USD, EUR, JPY, CAD, AUD, HKD, CNY;

   Accepted Payment Type: T/T, Paypal, Western Union, Cash.

Do you want to custom the vapor chamber?

Click "contact us" below to send us the drawing of ultra thin vapor chamber, we support DXF, DWG, STP etc. format.

Or send email directly at bella.xiang@xinhsen.com  /  WhatsApp: +86 18025476918
