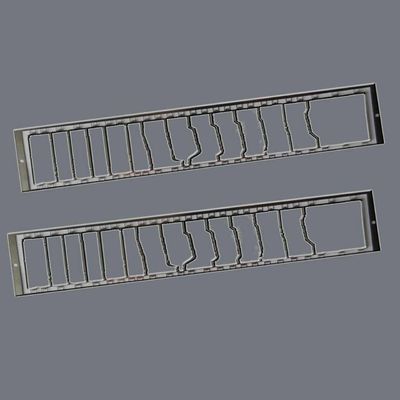

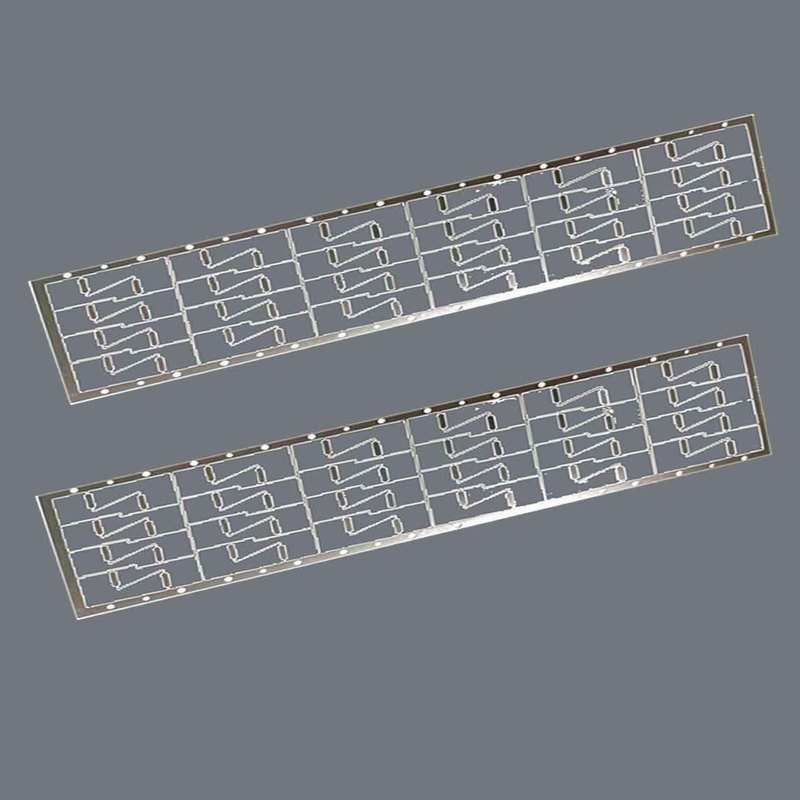

High Precision Etched Lead Frames with ±0.01mm Tolerance ISO Certified

Name: High Precision Etched Lead Frames with ±0.01mm Tolerance ISO Certified
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	10
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Materials:

Stainless Steel, Titanium Or Customized

Tolerance:

+/- 0.01mm

Size:

Customized

Advantages:

Cost-effective, High Quality

Process Type:

Chemical Etching

Durability:

Corrosion Resistant, Wear Resistant

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

high precision etched lead frames

custom stainless steel photo etching

lead frames with ±0.01mm tolerance

Product Description

High Precision Etched Lead Frames with ±0.01mm Tolerance ISO Certified

Lead Frames Overview

Xinhaisen Tech specializes in high-precision etched lead frames for semiconductor packaging, offering superior alternatives to traditional stamped frames. With ±0.01mm tolerance and 0.02-3.0mm thickness range, our photo chemically etched lead frames deliver unmatched precision for QFN, DFN, QFP, and other advanced IC packages.

Lead Frames Specification

Paramete	Specification
Tolerance	±0.01mm
Material	Stainless Steel,alloys,etc.
Surface Finish	Matte, polished, plated
Lead Count	Up to 500 I/Os

Lead Frames Applications

·Power ICs - Superior heat dissipation

·LED Packaging - Precise light alignment

·MEMS Devices - Ultra-fine features

·Automotive Electronics - Vibration-resistant

·5G/Wireless ICs - High-frequency performance

Why Choose Our Etched Lead Frames?

Unmatched Precision

·Multi-tier designs with consistent accuracy (±0.01mm)

·Burr-free edges for perfect die attachment

Material Expertise

·Copper alloys (C194, C7025) - Optimal conductivity

·Kovar/Alloy 42 - Low CTE for sensitive applications

·Custom silver/gold plating available

Advanced Manufacturing

·Photo chemical etching for complex geometries

·Monthly capacity: 1,000,000+ units

·5-7 day prototyping for fast NPI

Reliability Assurance

·100% automated optical inspection

·JEDEC-compliant production standards

·Material certifications (SGS, RoHS)

Welcome to contact us at any time!
