High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

Name: High Precision Metal Mesh for Smoke Detector with Chemically Etching Service
Brand: Shenzhen Xinhaisen Technology Limited
SKU: XHS or Customized
Price: 90.00 USD
Availability: InStock

Brand Name:	XHS or Customized
Model Number:	XHS or Customized
MOQ:	100
Price:	80-100USD
Payment Terms:	T/T,Western Union
Supply Ability:	10000-100000PCS / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO14001, ROHS

Material:

Stainless Steel, Copper, Aluminum, Titanium, Nickel Or Custom Alloy Etc.

Thickness:

Support 0.02-3mm Thickness Cusomization

Size:

As Client's Requirements

Mesh Aperture:

Customizable For Optimal Smoke Particle Detection.

Hole Shape:

Round, Square, Or Custom Shapes Depending On The Requirements.

Hole Size:

Ranges From Microns To Millimeters, According To Design Needs.

Corrosion Resistance:

Resistant To Rust And Corrosion, Ensuring Long-term Functionality In Humid Or Harsh Environments.

Packaging Details:

PE bag, Carton

Supply Ability:

10000-100000PCS / week

Product Description

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service

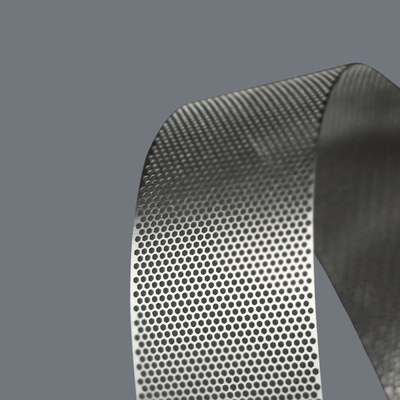

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service 0

Features of Metal Mesh for Smoke Detector:

High Precision: Our chemically etched stainless steel mesh ensures uniform hole size and placement, optimizing performance in smoke detection systems.
Customizable Thickness: Available in 0.1mm, 0.2mm, and 0.3mm thicknesses to fit various smoke detector models.
Corrosion Resistance: Crafted from premium stainless steel for excellent rust and corrosion resistance, ensuring durability in tough environments.
Fine Mesh Pattern: Delivers superior filtration and airflow, crucial for accurate smoke detection.
Lightweight & Durable: Thin yet strong, providing durability without extra weight for the smoke detector.

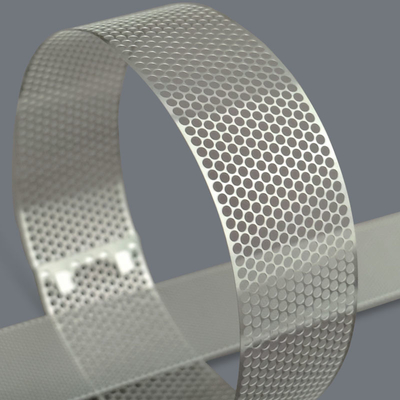

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service 1

Specifications of Etched Metal Mesh for Smoke Detector:

Material:	Stainless Steel, Copper, Aluminum, Titanium, Nickel, as requested.
Thickness Options:	0.02-3mm can be customized
Mesh Aperture Size:	Customizable
Width:	Customizable
Length:	Customizable
Surface Finish:	Smooth, polished, or matte depending on the specific requirements.
Application:	Smoke detectors, fire alarm systems, and other environmental sensing devices, etc..

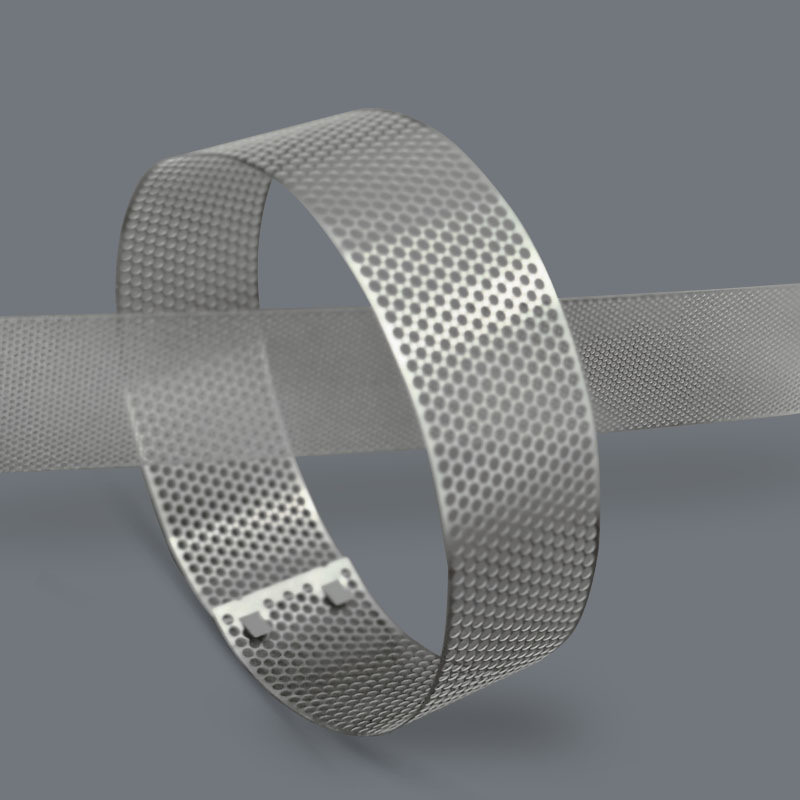

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service 2

How to Chemically Etch Metal Mesh for Smoke Detectors:

Material Cutting: Cut the stainless steel sheet to the required size and thickness (0.1mm, 0.2mm, or 0.3mm).
Material Cleaning: Clean the surface to remove grease, dust, and oxidation for proper photoresist adhesion.
Printing: Print the mesh pattern onto the metal using photolithography or digital printing.
Exposure: Expose the photoresist to UV light, hardening the exposed areas and leaving the unexposed ones soft.
Developing: Remove the unexposed photoresist, revealing the mesh pattern.
Etching: Submerge the metal in an etching solution (e.g., ferric chloride) to dissolve the exposed metal and form the mesh.
Stripping: Remove the remaining photoresist using a chemical stripper.
Data Inspection: Inspect the etched mesh under a microscope to ensure accuracy.

High Precision Metal Mesh for Smoke Detector with Chemically Etching Service 3

Advantages of Etched Metal Mesh for Smoke Detectors:

Precision Engineering: Chemical etching creates highly accurate, intricate mesh patterns for optimal smoke detection sensitivity.
Customization: Offers custom hole sizes, thicknesses, and patterns for tailored smoke detector designs.
No Material Distortion: Unlike mechanical methods, chemical etching preserves the material's integrity without distortion.
Consistent Quality: Ensures uniformity and consistency, meeting strict performance standards.
Cost-Effective for Small Runs: Ideal for small batches or prototypes, as it doesn’t require expensive tooling or molds.

How to Custom Metal Mesh for Smoke Detectors from Us:

Consultation & Design: Share your mesh specifications (size, thickness, aperture, material), and we’ll ensure your design needs are met.
Prototype Development: We provide a prototype for approval, allowing you to test its fit and performance.
Custom Production: Upon approval, we begin mass production, ensuring precision and consistency with advanced etching techniques.
Quality Assurance: Each mesh is inspected for hole size, corrosion resistance, and durability to meet quality standards.
Flexible Order Quantities: We offer flexible order sizes, whether small or large scale.
On-time Delivery: We ensure fast delivery without compromising quality, meeting your schedule.
