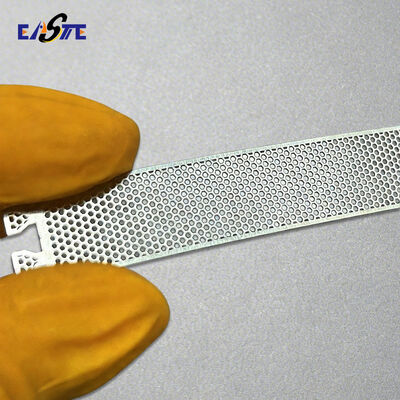

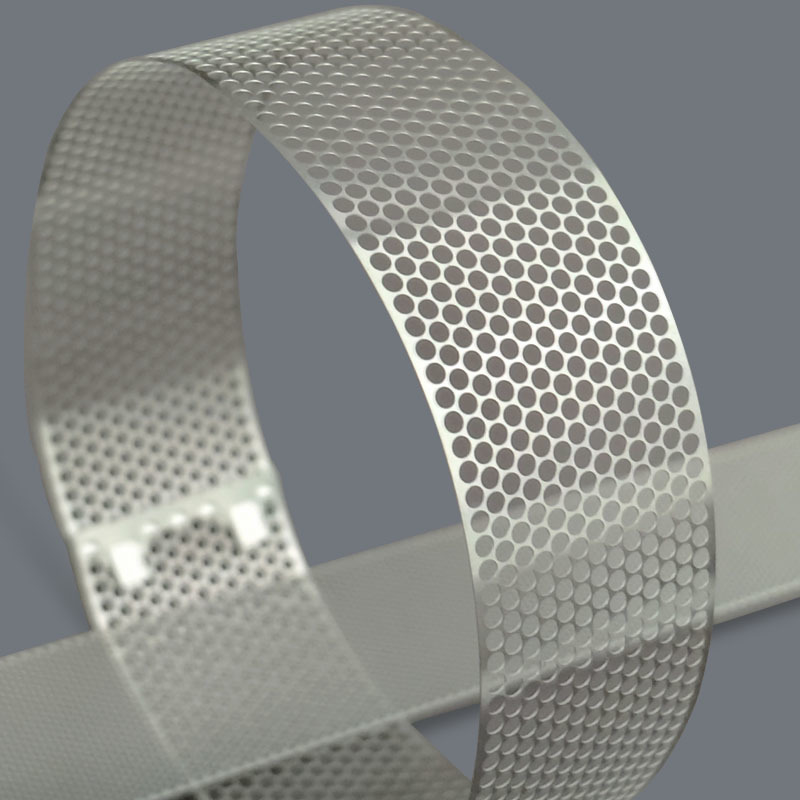

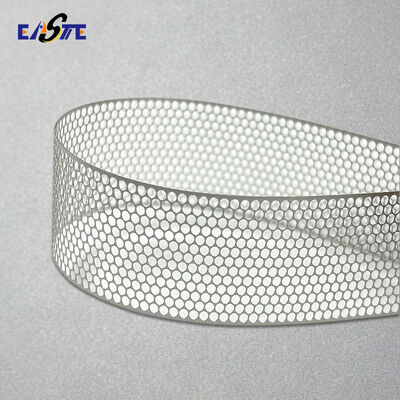

Custom Photo Chemically Etched High Precision Stainless Steel Mesh for Smoke Detector
Product Details
| Material: | Stainless Steel, Copper, Aluminum, Titanium, Nickel Or Custom Alloy Etc. | Thickness: | Support 0.02-3mm Thickness Cusomization |
|---|---|---|---|
| Size: | As Client's Requirements | Mesh Aperture: | Customizable For Optimal Smoke Particle Detection. |
| Hole Shape: | Round, Square, Or Custom Shapes Depending On The Requirements. | Hole Size: | Ranges From Microns To Millimeters, According To Design Needs. |
| Corrosion Resistance: | Resistant To Rust And Corrosion, Ensuring Long-term Functionality In Humid Or Harsh Environments. |
Product Description
Custom Photo Chemically Etched High Precision Stainless Steel Mesh for Smoke Detector
|
High Precision: Our chemically etched stainless steel mesh ensures uniform hole size and placement, optimizing performance in smoke detection systems. Customizable Thickness: Available in 0.1mm, 0.2mm, and 0.3mm thicknesses to fit various smoke detector models. Corrosion Resistance: Crafted from premium stainless steel for excellent rust and corrosion resistance, ensuring durability in tough environments. Fine Mesh Pattern: Delivers superior filtration and airflow, crucial for accurate smoke detection. Lightweight & Durable: Thin yet strong, providing durability without extra weight for the smoke detector. |
Specifications of Etched Stainless Steel Mesh for Smoke Detector:
| Material: | Stainless Steel, Copper, Aluminum, Titanium, Nickel, as requested. |
| Thickness Options: | 0.02-3mm can be customized |
| Mesh Aperture Size: | Customizable |
| Width: | Customizable |
| Length: | Customizable |
| Surface Finish: | Smooth, polished, or matte depending on the specific requirements. |

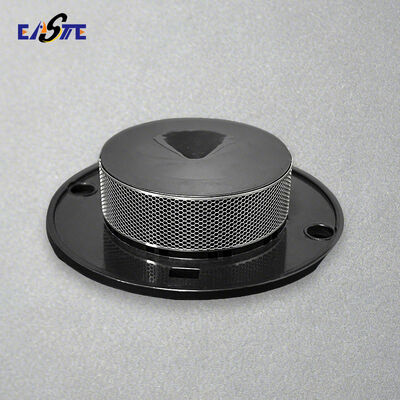

| Application: | Smoke detectors, fire alarm systems, and other environmental sensing devices, etc.. |
How to Chemically Etched Stainless Steel Mesh for Smoke Detector:
- Material Cutting: Cut the stainless steel sheet to the required size and thickness (0.1mm, 0.2mm, or 0.3mm).
- Material Cleaning: Clean the surface to remove grease, dust, and oxidation for proper photoresist adhesion.
- Printing: Print the mesh pattern onto the metal using photolithography or digital printing.
- Exposure: Expose the photoresist to UV light, hardening the exposed areas and leaving the unexposed ones soft.
- Developing: Remove the unexposed photoresist, revealing the mesh pattern.
- Etching: Submerge the metal in an etching solution (e.g., ferric chloride) to dissolve the exposed metal and form the mesh.
- Stripping: Remove the remaining photoresist using a chemical stripper.
- Data Inspection: Inspect the etched mesh under a microscope to ensure accuracy.
Advantages of Etched Stainless Steel Mesh for Smoke Detector:
|
|
How to Custom Stainles Steel Mesh for Smoke Detectors from Us:
-
Consultation & Design: Share your mesh specifications (size, thickness, aperture, material), and we’ll ensure your design needs are met.
-
Prototype Development: We provide a prototype for approval, allowing you to test its fit and performance.
-
Custom Production: Upon approval, we begin mass production, ensuring precision and consistency with advanced etching techniques.
-
Quality Assurance: Each mesh is inspected for hole size, corrosion resistance, and durability to meet quality standards.
-
Flexible Order Quantities: We offer flexible order sizes, whether small or large scale.
-
On-time Delivery: We ensure fast delivery without compromising quality, meeting your schedule.
