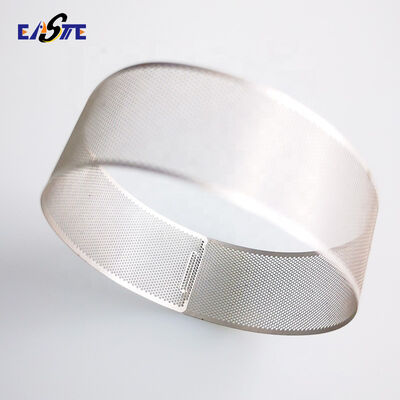

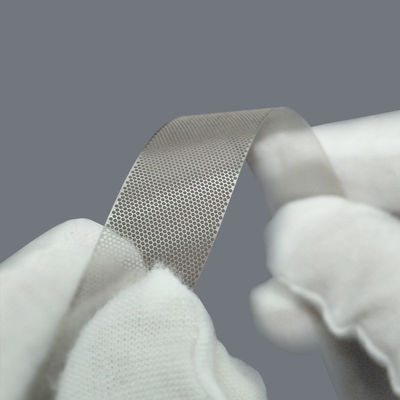

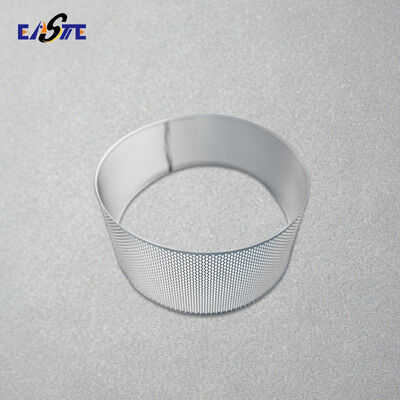

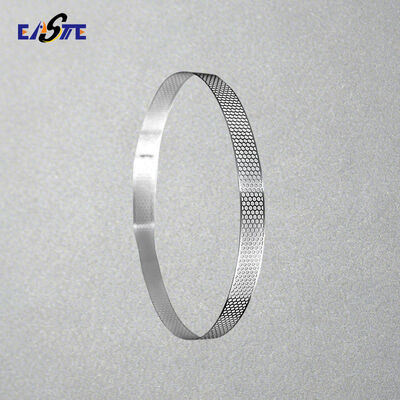

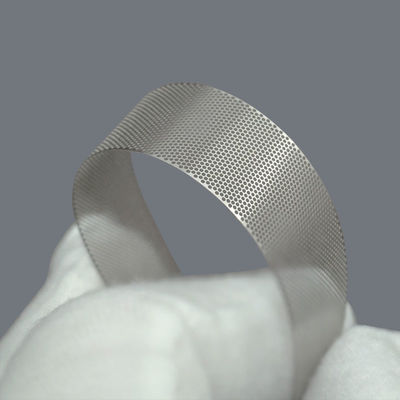

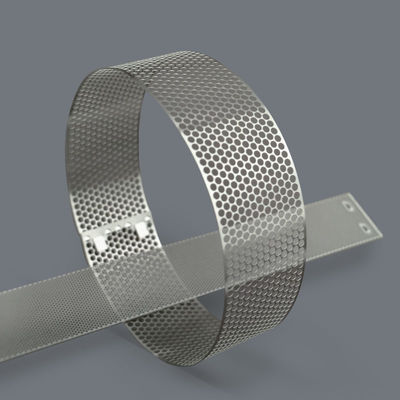

Chemically Etched 0.1mm 0.2mm 0.3mm Thickness Stainless Steel Mesh for Smoke Detector

Chemically Etched 0.1mm 0.2mm 0.3mm Thickness Stainless Steel Mesh for Smoke Detector

Specifications of Etched Stainelss Steel Mesh for Smoke Detector:

Features of Etched Metal Mesh for Smoke Detector:

High Precision: Our chemically etched stainless steel mesh is manufactured with meticulous attention to detail, ensuring the mesh holes are uniformly sized and positioned for optimal performance in smoke detection systems. Customizable Thickness: Available in various thicknesses (0.1mm, 0.2mm, 0.3mm) to meet the unique requirements of different smoke detector models. Corrosion Resistance: Made from high-quality stainless steel, it offers superior resistance to rust and corrosion, ensuring high performance even in harsh environmental conditions. Fine Mesh Pattern: Provides exceptional filtration and airflow properties, critical for accurate smoke detection. Lightweight & Durable: Despite its thinness, the mesh retains its strength, offering durability without adding unnecessary weight to the smoke detector unit.

How to Chemically Etch Metal Mesh for Smoke Detectors:

1.Material Cutting

   Cut the metal sheet to the desired size and thickness (0.1mm, 0.2mm, or 0.3mm), typically using stainless steel or corrosion-resistant alloys.

2. Material Cleaning

   Clean the metal surface thoroughly to remove any grease, dust, or oxidation, ensuring proper adhesion of the photoresist layer.

3. Printing

   Print the mesh pattern onto the metal surface using photolithography or digital printing, defining areas to be etched.

4. Exposure

   Expose the photoresist to UV light, hardening the exposed areas while leaving the unexposed areas soft for removal.

5. Developing

   Remove the unexposed photoresist, revealing the mesh pattern on the metal surface.

6. Etching

   Submerge the metal sheet in an etching solution (e.g., ferric chloride) to dissolve the exposed metal and create the mesh design.

7. Stripping

   Remove the remaining photoresist using a chemical stripper or solvent, leaving the etched mesh.

8. Data Inspection

   Inspect the etched mesh under a microscope to ensure precision in hole size and spacing.

9. Final Check & Packaging

   Conduct a final inspection, smooth any rough edges, and pack the mesh for shipping.

Advantages of Etched Metal Mesh for Smoke Detectors:

Precision Engineering: Chemical etching allows for the creation of highly accurate and intricate mesh patterns that are essential for smoke detection sensitivity. Customization: It enables custom hole sizes, thicknesses, and patterns, providing tailored solutions for different smoke detector designs. No Material Distortion: Unlike mechanical methods, chemical etching doesn’t cause distortion or stress to the material, preserving the structural integrity of the mesh. Consistent Quality: Chemical etching provides uniformity and consistency, ensuring each piece of mesh meets stringent performance standards. Cost-Effective for Small Runs: Since chemical etching doesn’t require expensive tooling or molds, it’s more cost-effective for producing small batches or prototypes.

How to Custom Metal Mesh for Smoke Detectors from Us:

1. Consultation & Design: Contact us with your specific requirements for the metal mesh (mesh size, thickness, aperture, and material type). We offer consultation to ensure that your design specifications are met.

2. Prototype Development: Once your requirements are clear, we’ll provide a prototype of the etched mesh for approval. This allows you to test its fit and performance in your smoke detection systems.

3. Custom Production: After final approval of the prototype, we begin mass production. Our advanced chemical etching techniques ensure that each batch is precise, consistent, and meets your quality standards.

4. Quality Assurance: Every piece of mesh undergoes rigorous inspection to ensure it meets the required standards, including hole size, corrosion resistance, and overall durability.

5. Flexible Order Quantities: Whether you need a small batch or large-scale production, we offer flexible order sizes to meet your demand.

6. On-time Delivery: We guarantee fast lead times without compromising quality. Your custom metal mesh for smoke detectors will be delivered on schedule, ready for integration.

7. After-Sales Support: We provide ongoing support for any adjustments or customizations you may need in the future.
