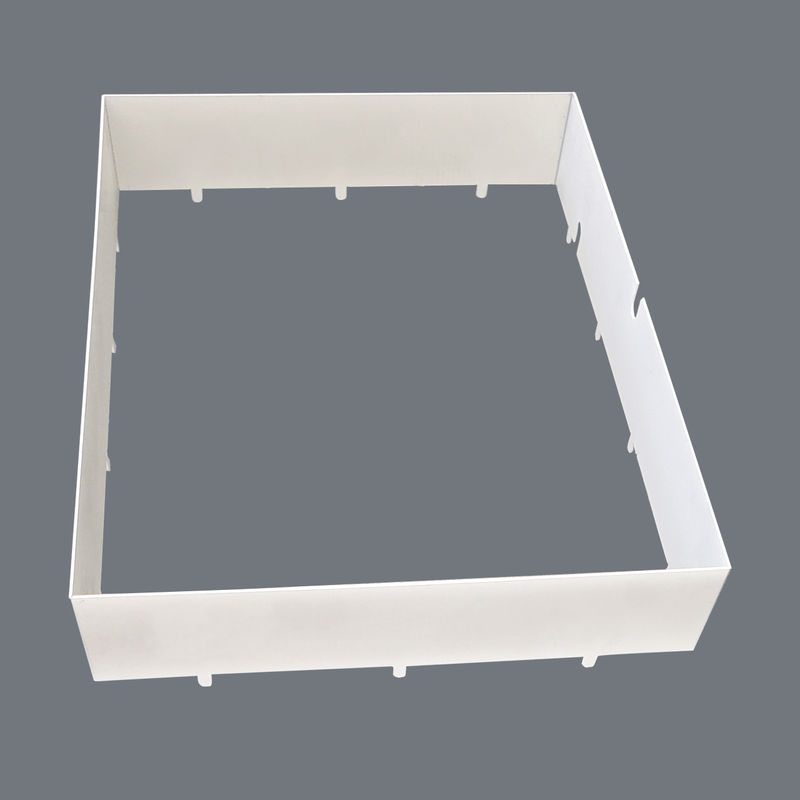

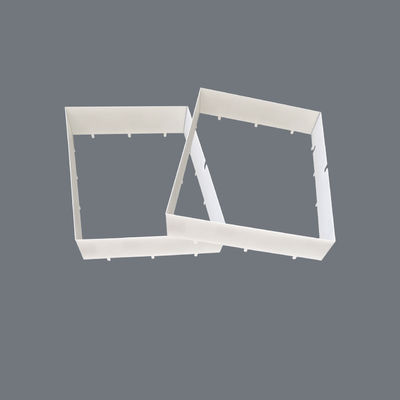

Radio Shield Fances Custom Precision For Advanced EMI RFI Protection
Product Details
| Material: | SUS 304/316L, Carbon Steel, Tinplate, C11000 Cu, BeCu, Phosphor Bronze | Size: | Custom |
|---|---|---|---|
| Color: | Silver, Gold, Etc | Processing Method: | Photo Chemical Etching, Stamping And Welding |
| Highlight |
Precision pcb shielding cans,Custom pcb shielding cans,Carbon Steel Radio Shield Fances |
||
Product Description
Radio Shield Fences Engineered to Your Specifications – High-Performance, Durable & Tailored Solutions
As a specialized etching manufacturer with 13+ years of expertise, Xinhaisen delivers fully customizable Radio Shield Fences designed to meet your exact EMI/RFI shielding requirements. Combining cutting-edge chemical etching technology with rigorous quality control, we produce ultra-precise shielding components for aerospace, medical devices, telecommunications, and industrial automation.
Why Choose Our Custom Radio Shield Fences?
-
100% Design Flexibility: Adaptable to any shape/size with micron-level accuracy (±0.02mm tolerance)
-
Material Versatility: Stainless steel, copper alloys, beryllium copper, and specialty metals
-
Optimized Performance: Achieve 60-120dB shielding effectiveness through precision-etched patterns
-
Fast Turnkey Service: From CAD file to batch production in 10-15 days
- Prompt Delivery: Sample delivery 3-5 working days, Mass production delivery 10-15 working days.
Custom Radio Shield Fences informations for your reference
| Parameter | Specifications |
|---|---|
| Material Options | SUS 304/316L, Carbon Steel, Tinplate, C11000 Cu, BeCu, Phosphor Bronze |
| Thickness Range | 0.05mm - 2.0mm |
| Minimum Aperture Size | 0.1mm |
| Shielding Effectiveness | 60dB @ 1GHz - 120dB @ 10MHz (material-dependent) |
| Surface Treatment | Passivation, Tin/ Nickel Plating, Anodizing |
| Certifications | ISO 9001, ISO 14001 |
Why choose Chemical Etching for Radio Shield Fences?
Our photochemical etching process delivers unmatched advantages:
✔️ Complex Geometry - Create 0.1mm wide channels with sharp 90° angles
✔️ Stress-Free Production - No mechanical deformation or heat-affected zones
✔️ Rapid Prototyping - 5-7 day lead time for functional samples
✔️ Cost Efficiency - No hard tooling required for design iterations
✔️ Burr-Free Edges - Maintain consistent flow characteristics
What is Chemical Etching?
Chemical etching is a subtractive manufacturing process that uses controlled chemical reactions to selectively remove material, creating precise, complex parts.
Our Etching Process Steps:
- Material Prep: Clean and degrease metal sheets.
- Photoresist Coating: Apply UV-sensitive resist.
- Exposure: Transfer flow field design via photomask.
- Development: Remove unexposed resist to reveal etching areas.
- Etching: Immerse in etchant to dissolve unprotected metal.
- Strip & Clean: Remove residual resist and polish.
- QC Inspection: Validate dimensions, conductivity, and surface finish.
Our Manufacturing Capabilities
- Materials: Stainless steel, titanium, copper-nickel alloys, aluminum, Fe-Ni alloys.
- Thickness Range: 0.02mm – 2.0mm.
- Tolerances: ±0.01mm for critical dimensions.
- Additional Services:
- Stamping & Diffusion Welding
- Surface Treatments (e.g., Au/Ni plating, passivation)
- Conductive Adhesive Bonding
- Full IATF 16949-compliant quality control.
The material ,thickness and size we can produce as following
| STEEL AND STAINLESS STEELS | 0.01mm – 1.5mm | 650mm x 1800mm |
| NICKEL AND NICKEL ALLOYS | 0.01mm – 1.5mm | 600mm x 1500mm |
| COPPER AND COPPER ALLOYS | 0.01mm – 1.5mm | 600mm x 1500mm |
| ALUMINIUM | 0.01mm – 1.5mm | 600mm x 1500mm |
| TITANIUM AND TITANIUM ALLOYS | 0.01mm – 1mm | 600mm x 550mm |
How to customize the Radio Shield Fences from us.
1.Please send us your design.
We accept the following file formats:
DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
2.Samples making lead time:3-10days
3.Express:By DHL,Fedex,TNT,around 3-7days
Why Choose Us?
✅ 13+ Years Expertise: Trusted by global clients in automotive, energy, and aerospace.
✅ ISO 9001/14001 & IATF 16949 Certified: Guaranteed quality and sustainability.
✅ Prototype Delivery time: 3-7days.
✅ Mass Production: 2-3Weeks
✅Competitive Pricing: Optimized processes for cost efficiency.
