Precision Etching Metallic Bipolar Plates for Fuel Cell Electrolyzers

Name: Precision Etching Metallic Bipolar Plates for Fuel Cell Electrolyzers
Brand: Shenzhen Xinhaisen Technology Limited
SKU: Customize
Price: 75.00 USD
Availability: InStock

Brand Name:	XHS/Customize
Model Number:	Customize
MOQ:	20
Price:	50-100USD
Payment Terms:	T/T
Supply Ability:	10000-100000PCD / week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001, ISO 14001, IATF 16949

Chemical Resistance:

Good

Electrical Conductivity:

High

Compatibility:

Suitable For Various Fuel Cell Designs

Application:

Used In Fuel Cell Stacks For Power Generation

Surface Finish:

Smooth

Corrosion Resistance:

Excellent

Material:

Titanium,alloys,etc.

Packaging Details:

PE bags and Carton

Supply Ability:

10000-100000PCD / week

Highlight:

Etched bipolar plates for fuel cells

High Precision bipolar plates for fuel cells

Alloy fuel cell bipolar plate

Product Description

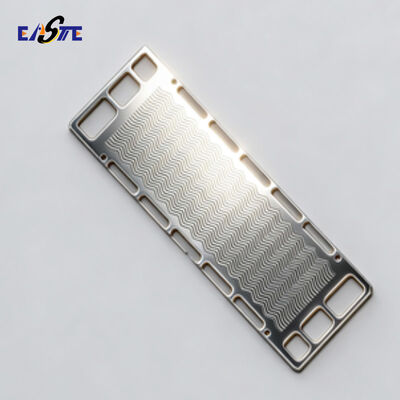

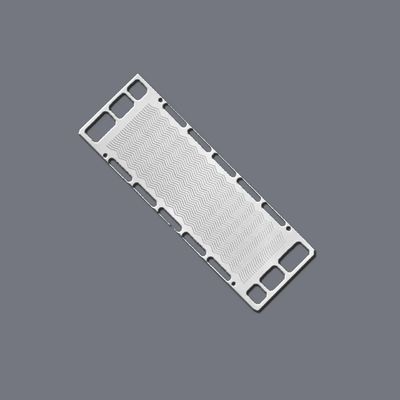

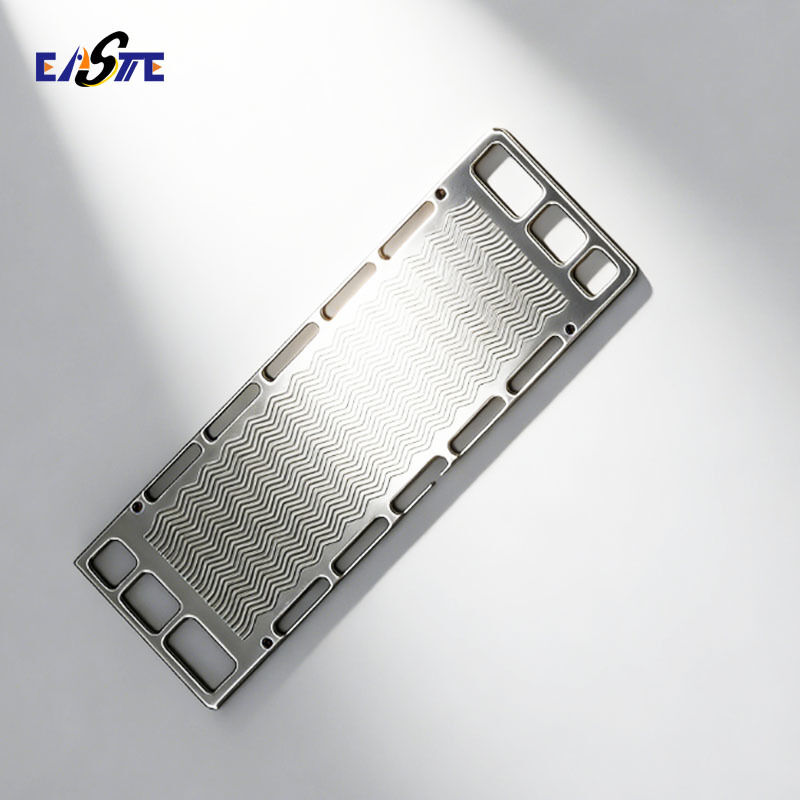

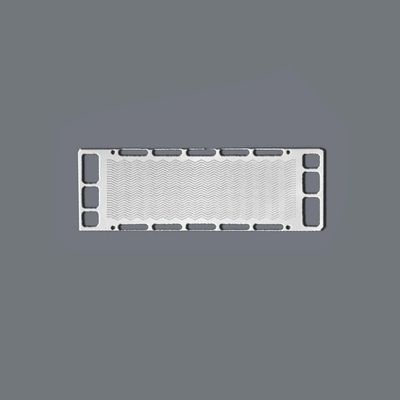

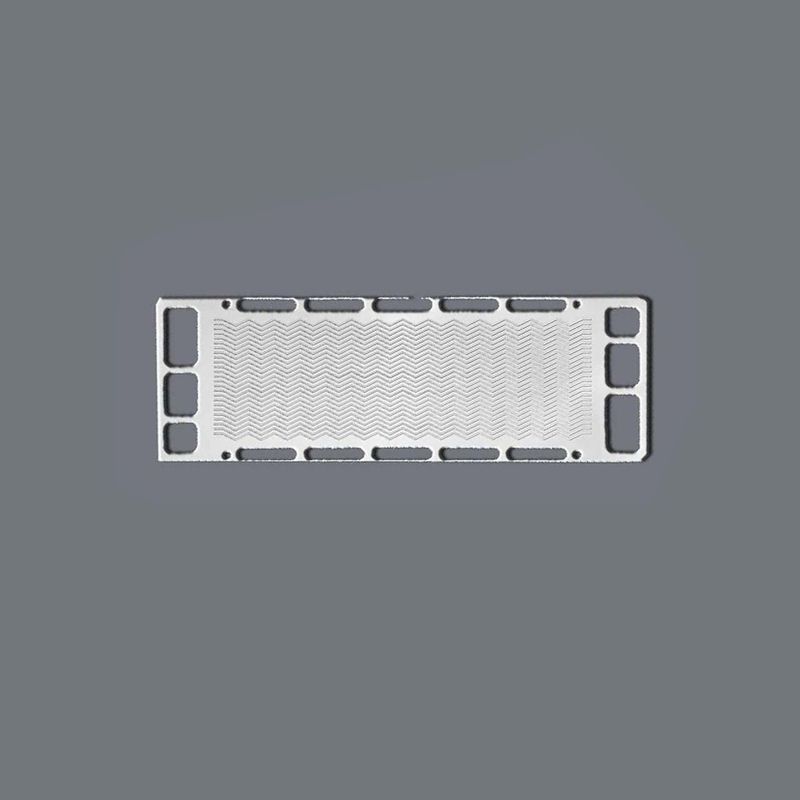

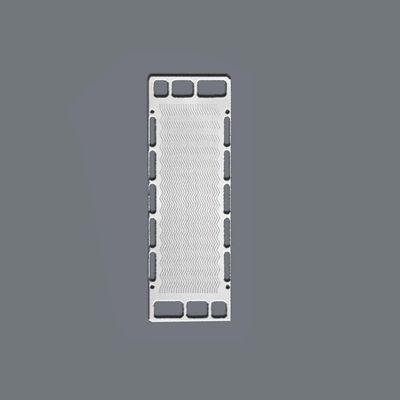

Precision Etching Metallic Bipolar Plates for Fuel Cell Electrolyzers

Bipolar Plates Overview

Xinhaisen's chemically etched bipolar plates deliver superior performance in fuel cells, electrolyzers, and flow batteries. Our photochemical etching technology enables complex micro-flow patterns with unmatched precision, optimizing gas/liquid distribution while minimizing pressure drop. These plates are critical for improving energy efficiency in hydrogen applications.

Bipolar Plates Key Advantages

·Ultra-thin designs (0.5-3.0mm) with high structural integrity
·Corrosion-resistant surfaces for acidic/alkaline environments
·Custom flow field patterns (serpentine, interdigitated, biomimetic)
·Zero mechanical stress vs. stamped/laser-cut alternatives
·Rapid prototyping → mass production transition

Bipolar Plates Specification

Parameter	Specification
Material	Titanium, Nickel Alloys, etc
Thickness	0.5mm - 3.0mm
Surface Roughness	Ra 0.1-1.6μm (mirror polish optional)
Flatness	≤0.05mm/100mm
Active Area	5cm² - 5000cm²
Electrical Conductivity	>1000 S/cm (metallic plates)

Bipolar Plates Application

·Hydrogen Fuel Cells (PEMFC, SOFC, DMFC)
·Water Electrolyzers (PEM, AEM, alkaline)
·Redox Flow Batteries (VRFB, Zn-Br systems)
·CO₂ Conversion Systems
·Laboratory-on-chip devices

Quality Assurance

·100% automated optical inspection (AOI)

·Material certs: EN 10204 3.1, ASTM standards

·Ex-situ/in-situ corrosion testing

·ISO 9001 & IATF 16949 compliant

Precision Etching Metallic Bipolar Plates for Fuel Cell Electrolyzers 1
