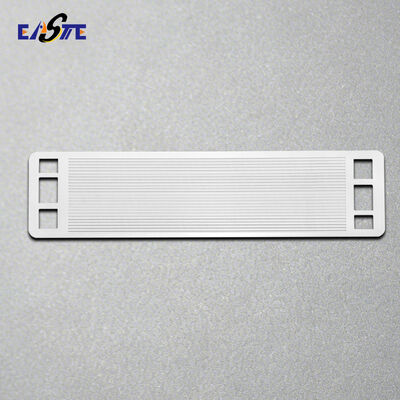

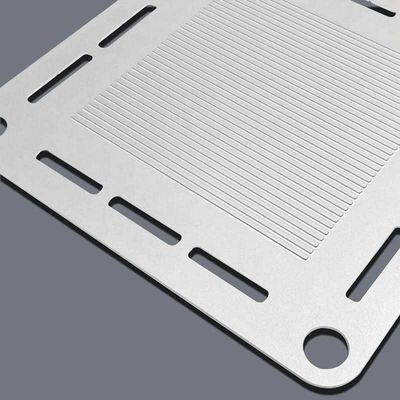

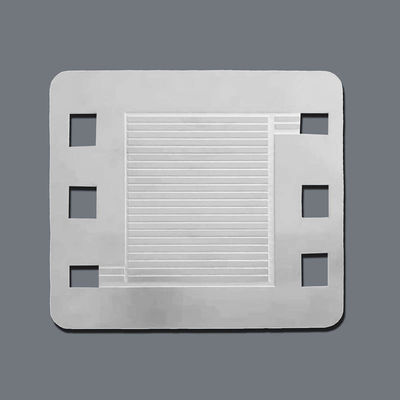

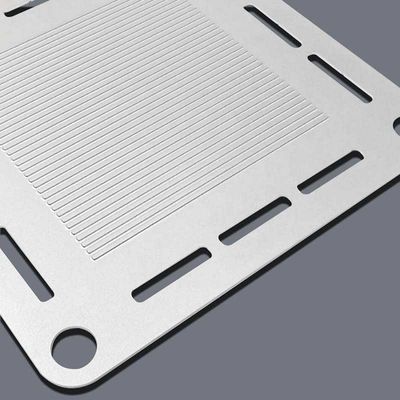

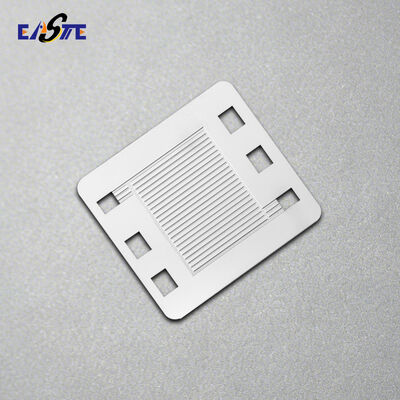

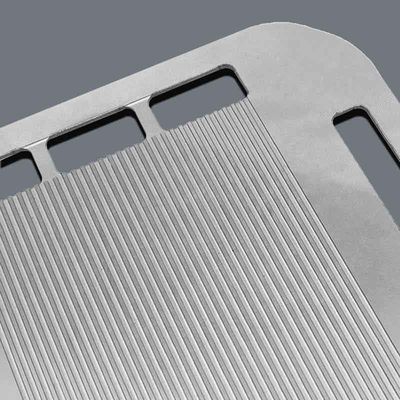

Chemically Etched Titanium Bipolar Plate 0.1mm to 1.0mm For Fuel Cell Battery
Product Details
| Materials: | Stainless Steel, Titanium Or Customized | Thickness: | 0.02mm - 1.5mm |
|---|---|---|---|
| Tolerance: | +/- 0.005mm | Production Process: | Photo Chemical Etching, Plating, Stamping, Laser Cutting |
| Highlight |
1.5mm Titanium Etching,0.02mm Titanium Etching,Titanium bipolar plate fuel cell |
||
Product Description
Chemically Etched Titanium Bipolar Plate 0.1mm to 1.0mm For Fuel Cell Battery
| The titanium bipolar plate utilizes titanium etching technology, offering advantages such as lightweight, high strength, and excellent corrosion resistance. This etching process not only preserves the inherent benefits of titanium material but also ensures a smooth, mirror-like surface, with precise shape and enhanced durability and stability. |
Specifications of Titanium Bipolar Plates for Fuel Cell:
| Item | Customized Titanium Bipolar Plate |
| Material | Stainless steel 201,202,304,316,410 etc./ Aluminum/ Copper/ Brass/ Steel alloy/ Titanium/ or Customized |
| Thickness | 0.02mm - 3mm according to different request |
| Minimum single part | 1mm*1mm |
| Maximum single part | 1500mm*650mm |
| Surface Treatment | Polishing,brushing,electroplating,nickel plating,anodizing,etc... |
| Etching is crucial for creating precise flow channels in bipolar plates, optimizing gas distribution and reducing pressure drops. This process ensures uniform channel geometry, improving flow efficiency and electrochemical performance. It works with corrosion-resistant materials like stainless steel or coated metals while maintaining conductivity. Advanced etching techniques offer high reproducibility and scalability, balancing cost and durability to enhance fuel cell longevity and power density. |
Custom different shapes Micro-Flow Plate/ PCHE / Bipolar Plate:
The production process of of Titanium Bipolar Plates for Fuel Cell:
-
Material Selection (e.g., stainless steel or titanium);
-
Surface Preparation (cleaning and degreasing);
-
Photoresist Application and UV masking to define flow channel patterns;
-
Exposure and Development;
-
Chemical Etching to remove the exposed areas;
-
Post-processing (resist removal and residue neutralization);
-
Quality Control and inspection.
How to etching custom Bipolar Plate?
1. Please send us your design.
We accept the following file formats:DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and Adobe Illustrator
2. Samples making lead time:3-10days
3. Express:By DHL, FedEx, TNT, around 3-7days.
Choose us you will get:
1. Accept personalized customization including logo, color, material, size, etc.
2. Good quality, excellent after-sales services.
3. 100% inspection before shipment and be responsible for all issues.
4. 13 years of professional in Metal Chemical Etching.
5. Experienced professional engineers team.
6. High cost effective, short turnaround time and fast delivery.
