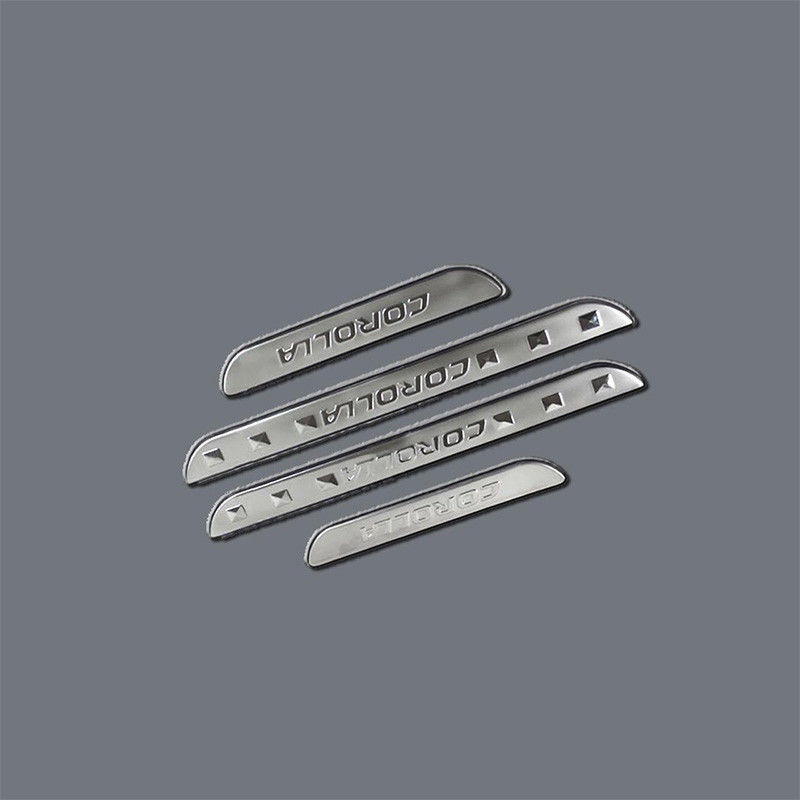

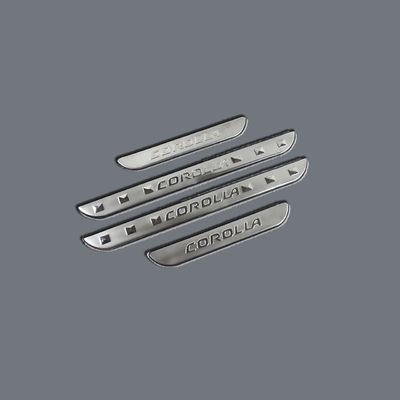

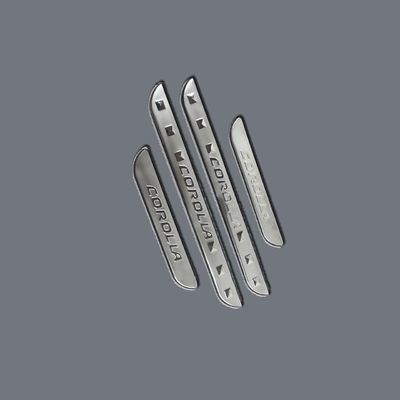

Chemical Stainless Steel Etching Tread Plates with Customized Patterns

Chemical Stainless Steel Etching Tread Plates with Customized Patterns

Tread plates Overview
Xinhaisen Technology manufactures high-performance chemically etched tread plates for industrial, automotive and architectural applications. Our precision etching process creates durable anti-slip surfaces with exacting dimensional accuracy while maintaining material integrity.

Manufacturing Process

• Design & Tooling: Your CAD design is converted into a digital photo-tool—no expensive hard tooling needed.

• Cleaning & Lamination: The metal sheet is cleaned and laminated with a light-sensitive photoresist film.

• Exposure & Development: The photo-tool is used to expose and develop the precise pattern onto the metal.

• Etching: The panel is sprayed with a chemical etchant that dissolves the exposed metal areas, forming the design.

• Stripping & Finishing: The resist is removed. Parts are cleaned and undergo finishing (plating, painting, brushing, anodizing).

Tread Plates Features

• Complex, Burr-Free Designs: Create intricate logos, speaker grilles, and decorative trim with absolute precision and no burrs.

• No Stress or Distortion: The non-mechanical process preserves material properties, preventing warping.

• Excellent Repeatability: Perfect for high-volume orders with consistent quality across every batch.

• Rapid Prototyping: Go from design to prototype in days without tooling investment.

• Wide Material & Finish Compatibility: Works with various metals (stainless steel, aluminum, brass) and accommodates all standard automotive finishes.

Tread plates Specification

Tread Plates Applications Decorative Trims & Inlays  Speaker Grilles & Acoustic Meshes Control Panel & Button Overlays HVAC Ventilation Grilles Backlit Logos & Indicator Plates

Our Advantages for Automotive Interiors

• Speed-to-Market: Unmatched speed from prototype to mass production, ideal for tight development cycles.

• High Precision & Complexity: We can etch the finest details and textures required for luxury automotive aesthetics.

• Proven Automotive Supplier: Extensive experience supplying to the automotive supply chain and related industries.

• Scalability: We reliably handle both urgent small-batch sampling and "super-large" production orders.

• Quality Reputation: Known among clients for high precision, fast speed, and versatility in processing a wide range of parts.

FAQ
Q: Can you match the color and finish of our existing interior trim?
A: Yes. We work with a variety of post-etching finishing processes including PVD coating, electroplating, anodizing, and painting to match exact color and texture specifications.

Q: Is photochemical etching suitable for high-volume automotive production?
A: Absolutely. While perfect for prototyping, our process is highly scalable and efficiently produces consistent, high-quality parts for large-scale serial production.

Q: What are the benefits vs. stamping or laser cutting for interior parts?
A: Etching offers no-tooling-cost design freedom, no heat-affected zones (unlike laser cutting), burr-free edges, and superior ability to create complex patterns and semi-etch textures in a single step.

Q: How do you ensure durability and wear resistance?
A: We select appropriate automotive-grade metals and apply durable, wear-resistant finishes (like hard anodizing or PVD coatings) to ensure parts withstand the cabin environment.

Welcome to contact us at any time!
