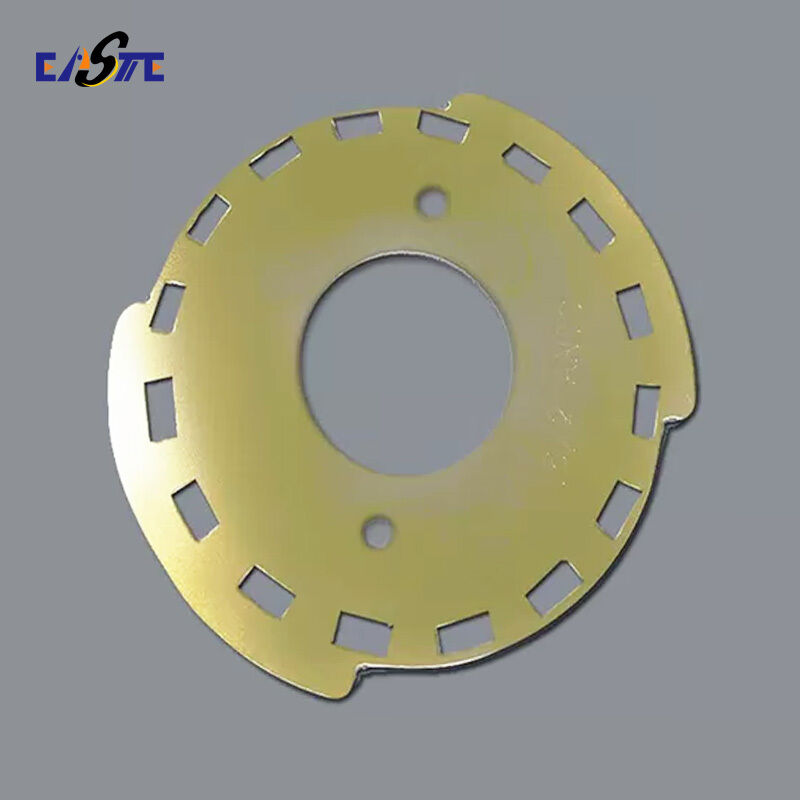

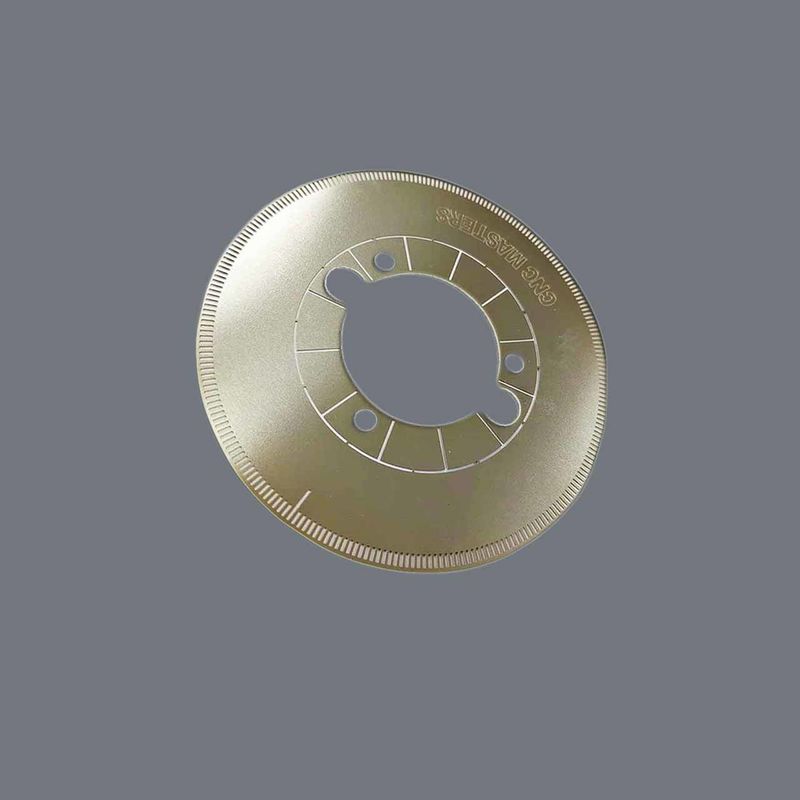

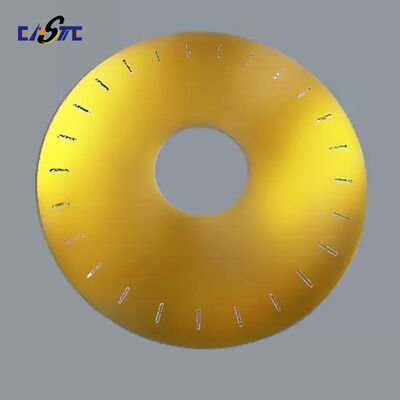

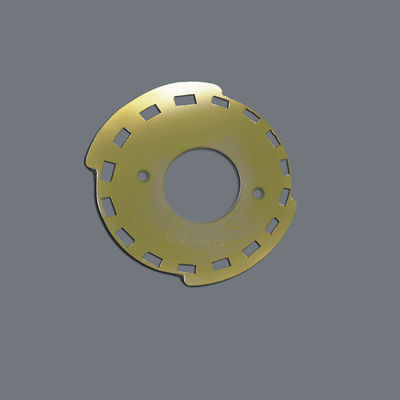

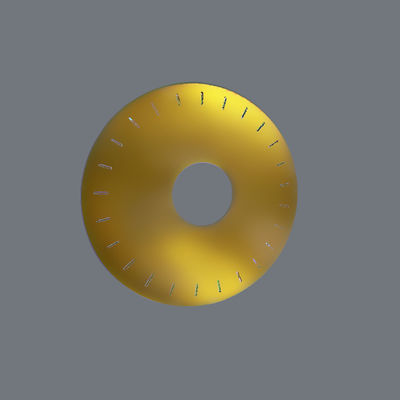

Chemical Etching Micro-Thin Optical Encoder Discs 0.05-0.4mm Thickness
Product Details
| Surface Finish: | Smooth | Batch Size: | Small To Large |
|---|---|---|---|
| Durability: | High | Tolerance: | +/-0.01mm |
| Thickness: | 0.05mm - 0.4mm | Technique: | Chemical Etching |
| Materials: | Stainless Steel Or Customized | Oem: | Support |
| Highlight |
Micro Thin encoder disks,0.02mm encoder disks,300mm photographic etching process |
||
Product Description
Chemical Etching Micro-Thin Optical Encoder Discs 0.05-0.4mm Thickness
Encoder Discs Overview
Encoder discs are critical components in optical and magnetic encoders, used to convert rotational position and speed into digital signals. Xinhsen manufactures high-pcision metal encoder discs with exceptionally fine patterns, ensuring accurate and reliable motion control in various demanding applications.
Manufacturing Process
We produce encoder discs using advanced photochemical etching. This subtractive manufacturing process allows for burr-free, stress-free, and highly precise patterns without altering the material's properties, making it ideal for high-tolerance, thin-metal parts.
Encoder discs Advantages
-
Extreme Precision: Achieves ultra-fine lines and micro-holes for accurate signal encoding.
-
No Burrs & No Stress: The etching process guarantees clean edges and eliminates mechanical stress for consistent performance.
-
High Durability: Metal construction ensures long-term reliability and resistance to wear.
-
Lightweight & Thin: Ideal for high-speed applications without sacrificing structural integrity.
-
Fast Lead Times: No hard tooling required, enabling rapid prototyping and volume production.
Encoder Discs Specification
| Parameter | Specification |
| Material | 304/316L SS,etc. |
| Thickness | 0.05mm-0.4mm |
| Diameter | Customizable |
| Line Resolution | 100-10,000 CPR (custom patterns) |
| Tolerance | +/-0.01mm |
Encoder Discs Applications
-
Servo Motors & Robotics: Provides precise feedback for accurate movement and positioning.
-
CNC Machinery & Automation: Ensures high-speed, repeatable operations in industrial equipment.
-
Medical Devices: Used in diagnostic imaging and surgical tools where reliability is critical.
-
Office Automation: Key component in printers, scanners, and copiers for paper feed control.
Why Choose Xinhaisen?
-
Precision Focus: We specialize in micro-etching, consistently delivering high-tolerance parts like encoder discs.
-
Speed & Scalability: We are known for our rapid response and ability to handle both urgent small-batch and high-volume orders efficiently.
-
Material Versatility: We can process various metals to meet specific requirements for conductivity, magnetic permeability, or strength.
-
Proven Reputation: Recognized by our clients for high quality, on-time delivery, and excellent customer service.
Welcome to contact us at any time!
