Metal Stamping Processing EMI Interference Shielding For High Frequency PCB Devices

Metal Stamping EMI Shieldings for High-Frequency PCB Devices

Brief Introduction of Stamping EMI Shieldings for PCB:

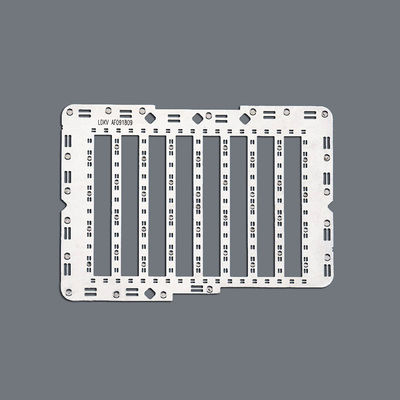

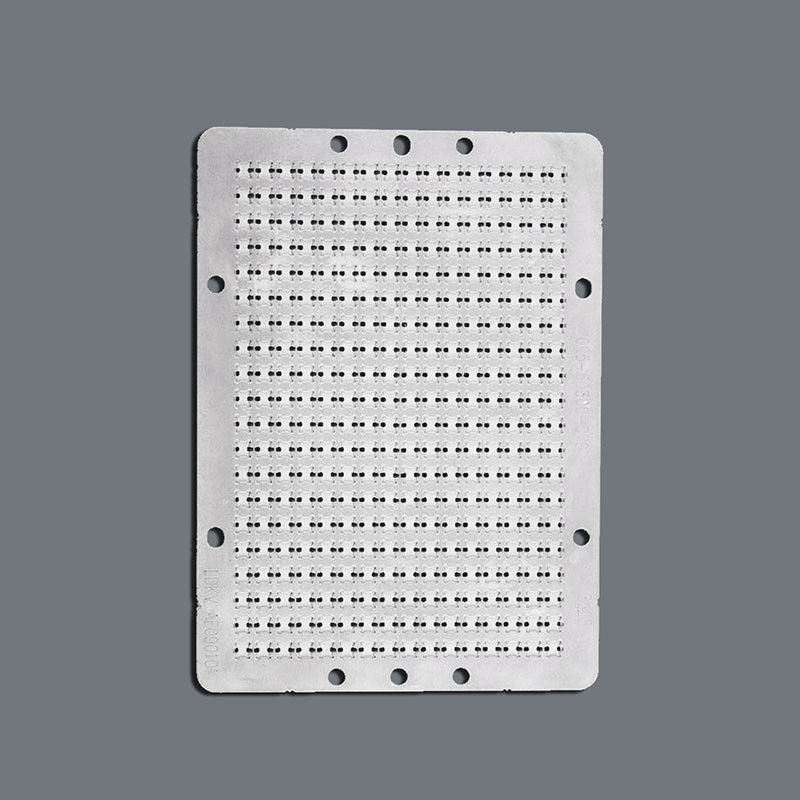

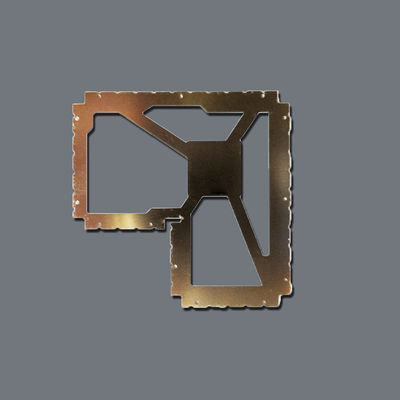

Metal Stamping EMI Shieldings are precision-engineered enclosures designed to block electromagnetic interference in high-frequency PCB devices. Manufactured through high-speed stamping processes, these shields provide reliable EMI/RFI suppression while maintaining optimal signal integrity. Ideal for modern electronics, they support compact designs and are compatible with both automated and manual assembly methods.

Specifications of Stamping EMI Shieldings for PCB Devices:

Features of Stamping EMI Shieldings for PCB Devices:

• High EMI/RFI Attenuation: Effectively blocks high-frequency signals to prevent circuit interference.

• Customizable Designs: Available in various shapes, sizes, and multi-cavity layouts.

• Material Versatility: Made from stainless steel, copper, nickel silver, or other EMI-effective metals.

• Easy Mounting: Options for SMT, through-hole, and snap-fit applications.

• Cost-Effective Production: Suitable for medium to high-volume runs with consistent quality.

Applications of Stamping EMI Shieldings for PCB Device:

• 5G Modules & RF Devices

• IoT and Wireless Communication Equipment

• Automotive Electronics & ADAS Systems

• Medical Devices and Instruments

• High-Speed Computing and Servers

• Consumer Electronics (Smartphones, Wearables)

How to Stamping EMI Shields?

The stamping process begins with selecting high-performance metal sheets. A progressive stamping tool is then used to cut, form, and shape the shields with extreme precision. The steps include:

1. Tool Design & Prototyping

2. Progressive Die Setup

3. Stamping Process (Punching, Bending, Forming)

4. Post-processing (Deburring, Plating)

5. Inspection & Quality Control

6. Custom Packaging for Delivery

This method ensures consistent dimensions, repeatability, and high-speed production with minimal waste.

The Benefits of Stamping:

• Cost-Effective for Large Volumes

• Consistent High Quality

• Fast Turnaround Time

• Supports Complex Designs

• Reduced Material Waste

• Excellent Scalability

How to Custom Smoke Detector Mesh from Us?

Looking to develop a custom EMI shielding mesh for smoke detectors? We provide full support from concept to production:

1. Send Your Drawing or Idea – Our engineers can assist with design optimization

2. Material Selection Guidance – We help choose the right metal for performance and cost

3. Prototyping & Samples – Get a quick sample for testing and validation

4. Mass Production – Reliable quality control and competitive pricing for large runs

5. Global Shipping – Fast and secure delivery worldwide

Contact us today to customize your EMI shielding solution and protect your devices with confidence.
