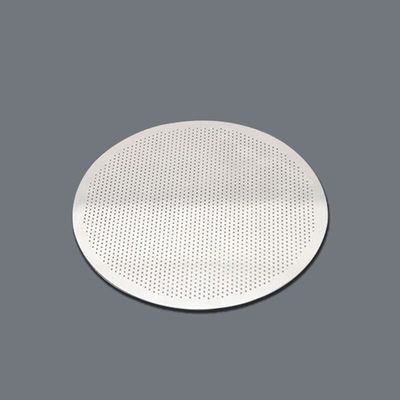

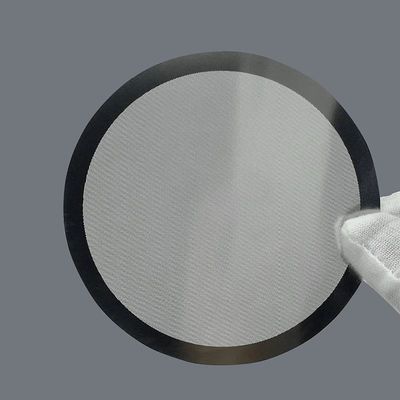

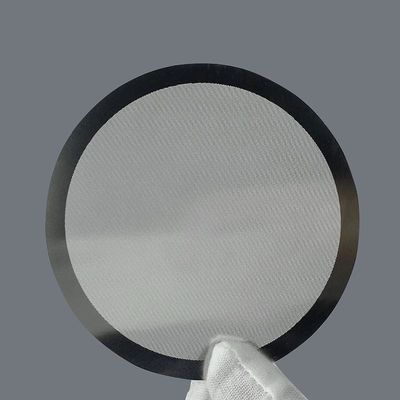

Stainless Steel Precision Photo Etched Filter Mesh With Smooth Edge Finish

Precision Photo Etched Filter Mesh With Smooth Edge Finish

Brief Introduction of Stainless Steel Etched Filter Mesh:

Our Precision Photo Etched Filter Mesh with Smooth Edge Finish is engineered for high-performance filtration applications that demand micron-level accuracy and consistency. Made from high-grade stainless steel or other alloys, these meshes are produced using advanced chemical etching technology, ensuring burr-free edges and highly precise apertures for optimal flow and separation.

Specifications of Stainless Steel Etched Filter Mesh:

Features of Stainless Steel Etched Filter Mesh:

• Ultra-High Precision: Micron-level tolerances for reliable performance

• Smooth Edge Finish: No burrs or sharp edges, reducing contamination risk

• Customizable Patterns: Tailor mesh size, thickness, and shape to meet unique application needs

• Flat & Consistent Surface: Ideal for sensitive or high-tech environments

• Non-Deforming Structure: Maintains strength and shape under stress or heat

Applications of Stainless Steel Etched Filter Mesh:

• Medical Devices: Precision filtration in diagnostic and surgical equipment

• Aerospace & Defense: Fuel filters, micro-screening for sensitive components

• Electronics: EMI shielding, dust filtration in high-tech enclosures

• Automotive: Oil, fuel, and air filtration components

• Industrial: Chemical processing, fine particle screening, lab instruments

• Consumer Products: Coffee filters, speaker grilles, vaporizer screens

How to Etch Filter Mesh?

Chemical etching, also known as photo etching, begins by applying a photoresist to a metal sheet. The desired mesh pattern is transferred via UV exposure. After development, the exposed areas are etched away using a chemical solution, precisely removing material without mechanical stress or heat distortion. This method ensures highly accurate and consistent hole dimensions across the entire mesh surface.

The Benefits of Chemical Etching:

• No Burrs or Deformation: Clean, smooth edges that eliminate clogging and wear
• High Precision and Repeatability: Essential for critical filtration tolerances
• Design Flexibility: Intricate and complex shapes are easily achievable
• Cost-Effective for Custom Runs: Ideal for prototypes and medium-volume production
• Material Integrity Maintained: No heat or mechanical force used during production

How to Custom Filter Mesh from Us?

1. Send Your Design or Requirements: CAD drawings or detailed specs (aperture size, shape, material)
2. Receive Expert Consultation: We’ll help optimize your mesh for performance and manufacturability
3. Confirm Specifications: Finalize thickness, pattern, and tolerances
4. Rapid Prototyping & Production: From samples to batch production with fast lead times
5. Worldwide Shipping: Reliable delivery with quality assurance at every step

Contact us today to get your custom etched filter mesh quote!
